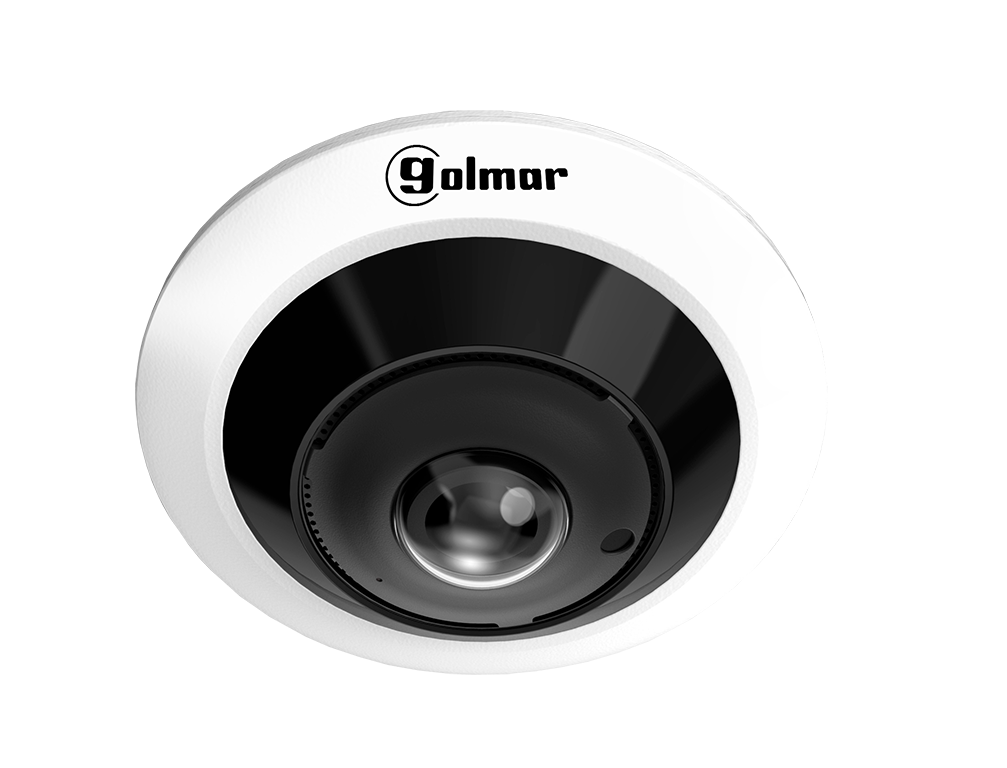

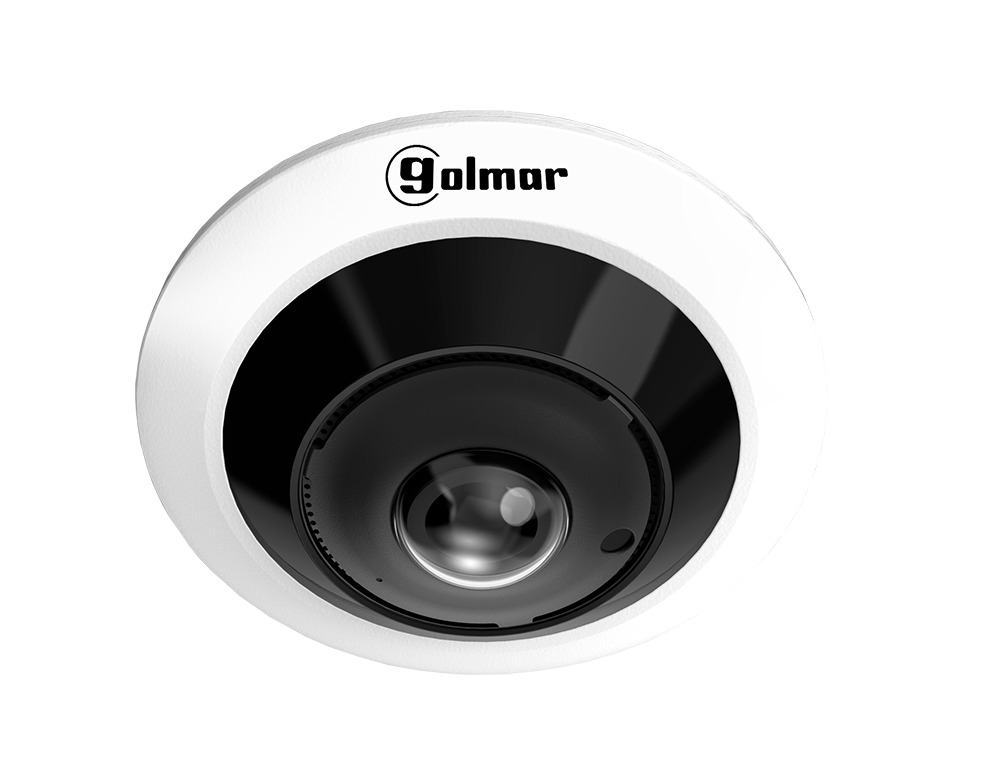

Dome IP Fisheye CIP-360F12 12Mpx with 1,6mm lense
Reference : CIP-360F12
Product code: 31600929
EAN code : 8429898025933
- Private protocol
Infrared illumination (3 leds)
IP66 degree of protection
SD card slot
Dewarp with NVR, App or VMS Pro software
Compatible with C-BASEF and C-BASEFS base
Dimensions: 120(Ø) x 55(H) mm
More information
| Specifications | |
|---|---|
| Type | Dome |
| Technology | IP |
| Image sensor | 1/2.3" progressive CMOS |
| Max. Resolution | 12Mpx |
| Colour | White |
| Mounting | Wall,Ceiling |
| Lense | Fixed |
| Focal length | 1,6mm |
| Horizontal field of view (º) | 180 |
| Vertical field of view (º) | 180 |
| Night vision mode | Day/Night |
| IR distance max. (m) | 5 |
| WDR | No |
| Additional functions | AWB,BLC,AES,3D-DNR,D-WDR |
| Bitrate | 8Kbps ~ 16Mbps |
| Main Stream (FPS) | 4000 x 3000 @ 15pfs |
| Sub Stream (FPS) | 1280 x 960 @ 15fps |
| Video compression | H.264,H.265 |
| Face recognition | No |
| Internal storage | Yes (max 256Gb) |
| Network interface | RJ45 |
| I / O alarms | 1/1 |
| I / O audio | No |
| Built-in microphone | Yes |
| Built-in speaker | Yes |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | ONVIF (Perfil S, G, T) |
| Compatibility | C-BASEF and C-BASEFS |
| Degree of protection (IP) | IP66 |
| Material | Aluminium |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 95 |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Max. consumption (W) | 5 |
| Dimensions - High (mm) | 55 |
| Dimensions - Diameter (mm) | 120 |
| Weight (gr.) | 400 |
| Certifications | CE,RoHS |
