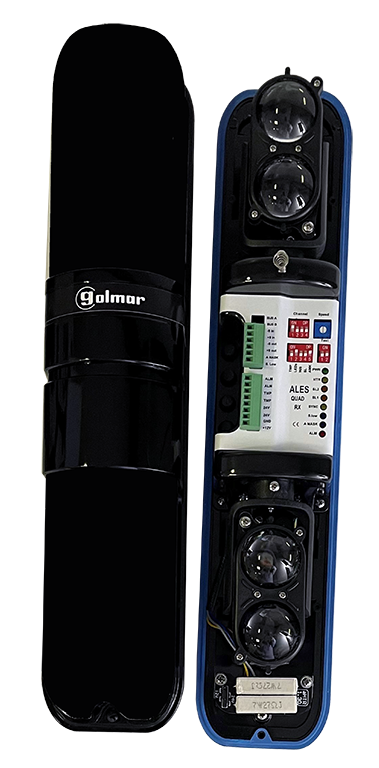

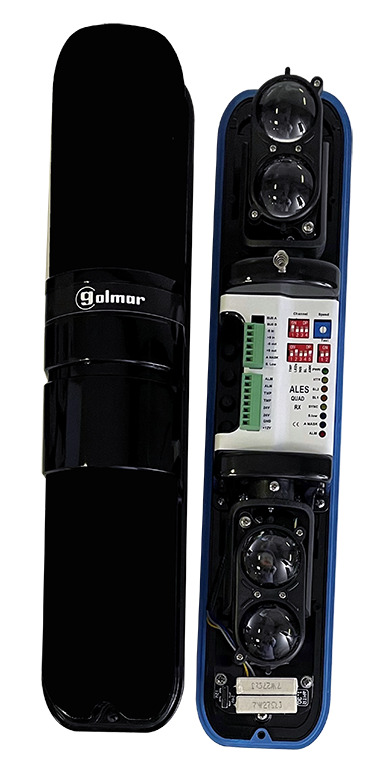

Four-beam outdoor infrared barrier
Reference : ALQUAD-250
Product code: 21050065
EAN code : 8429898027555
- Range of 250m
- Includes two transmitter units and two receiver units
- Dual infrared beam technology with 35mm lenses
- Optical synchronization with four different channels
- Visible LED indicator (up to 200m in daylight) and high-power buzzer allow single-person alignment
- Beam adjustment angle: 20º (Vertical), 180º (Horizontal)
- Alarm output on receiver via NC relay
- Tamper protection on the covers
- Fog inhibit output
- Outdoor installation
- Protection rating: IP65
- Includes wall-mount brackets and straps for pole installation
More information
| Specifications | |
|---|---|
| Technology | Cableado |
| Type | Barrera IR |
| Reading / coverage distance (m) | 86 |
| 86 | |
| Relay contacts | Yes |
| Integrated camera | No |
| Installation height | Exterior |
| Type Function | Con central |
| Use | Exterior |
| Voltage | Exterior |
| Certifications | Exterior |
| Manufactured according to Norma. | 86 |
| Dimensions - High (mm) | 405 |
| Dimensions - Width (mm) | 78 |
| Dimensions - Deep (mm) | 86 |
