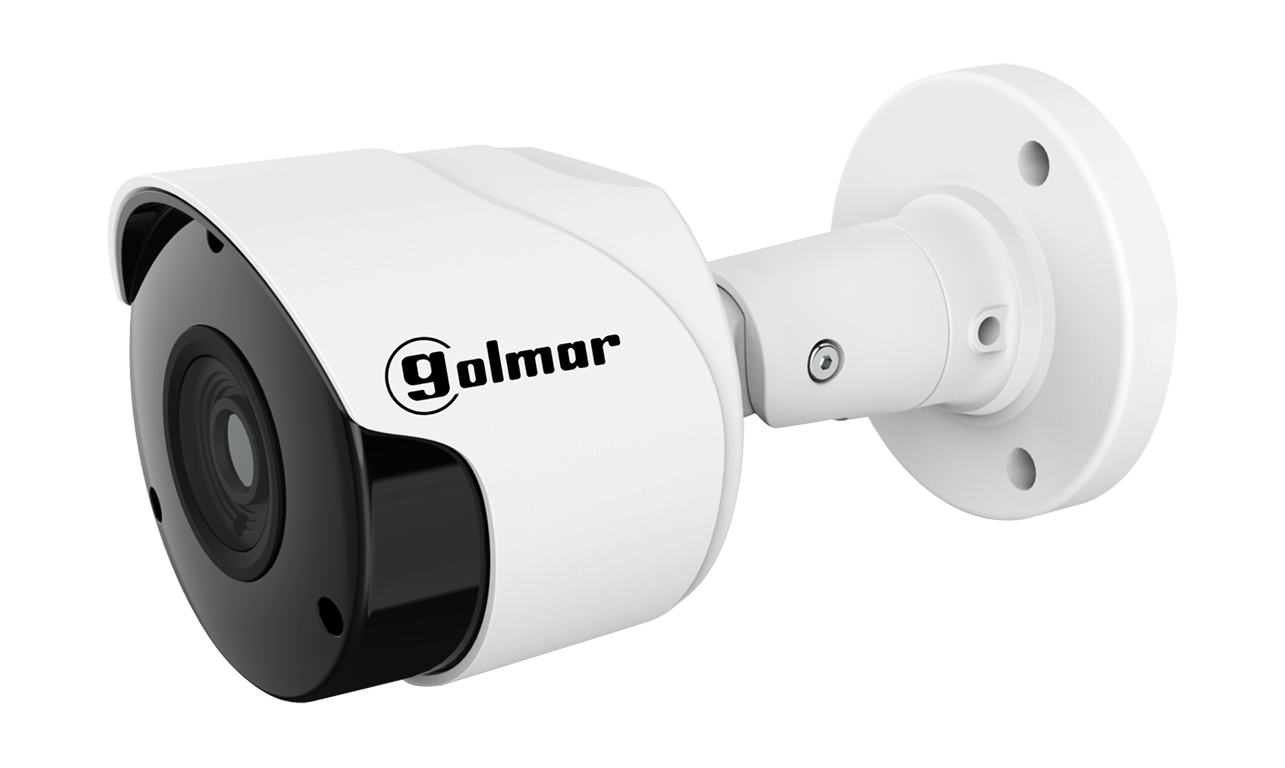

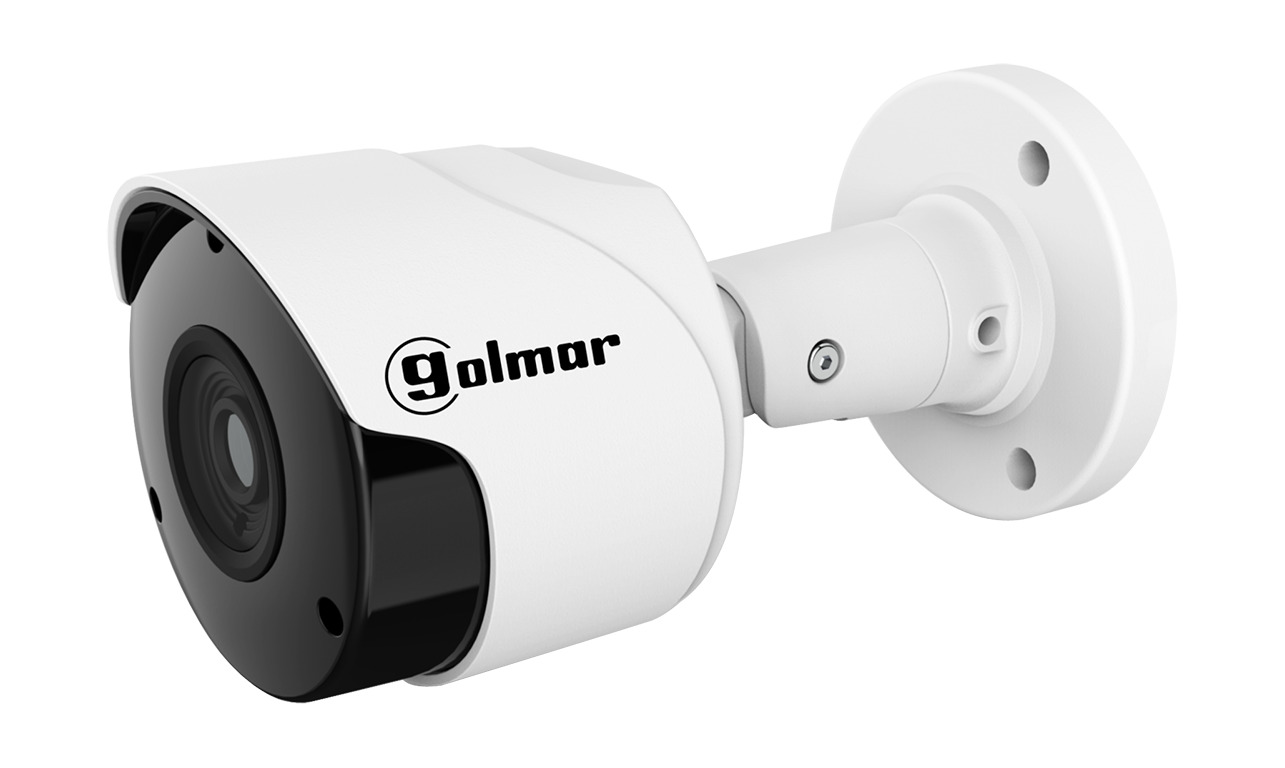

CIP-21B2E 2Mpx camera with 2.8mm lens
Reference : CIP-21B2E
Product code: 31691050
EAN code : 8429898018553
- 1/2.7" Progressive CMOS sensor
- H.264 / H.265 compression
- Proprietary protocol / Onvif 2.6
- 2.8mm fixed lense
- 103° horizontal angle of view
- Infrared illumination with 30m range (18 SMD LEDs)
- IP66 degree of protection
- Compatible with sockets C-BASE01, C-BASE02 and
- C-BASE05
- Dimensions: 70(Ø) x 138(D) mm
More information
| Specifications | |
|---|---|
| Type | Bullet |
| Technology | IP |
| Max. Resolution | 2Mpx |
| Colour | Blanco |
| Mounting | Pared,Techo |
| Lense | Fija |
| Focal length | 2,8mm |
| Horizontal field of view (º) | 103 |
| Night vision mode | Día/Noche |
| IR distance max. (m) | 30 |
| Additional functions | AWB,BLC,AES,3D-DNR,D-WDR |
| Bitrate | 256Kbps ~ 8Mbps |
| Main Stream (FPS) | 1-25 fps @ 1080P (1920x1080), 960P (1280x960), 720P (1280x720) |
| Sub Stream (FPS) | 1-20 fps @ VGA (640x480),QVGA (320x240) |
| Video compression | H.264,H.265 |
| Audio compression | Blanco |
| Face recognition | No |
| Reading distance (m) | 138 |
| Network interface | RJ45 |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Compatibility | Blanco |
| Degree of protection (IP) | IP66 |
| Material | 1-25 fps @ 1080P (1920x1080), 960P (1280x960), 720P (1280x720) |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -30 |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | Yes |
| Dimensions - Diameter (mm) | 70 |
| Dimensions - Deep (mm) | 138 |
| Certifications | CE,RoHS |
