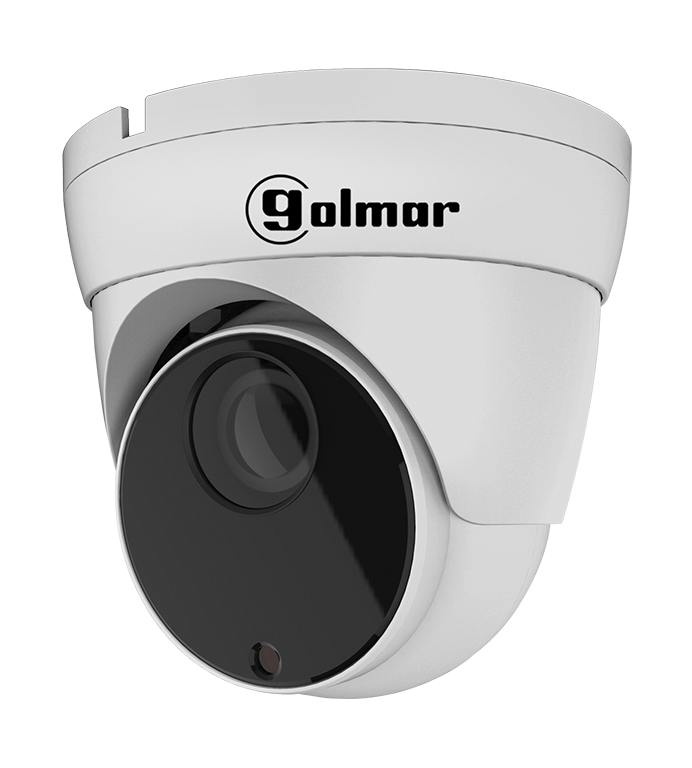

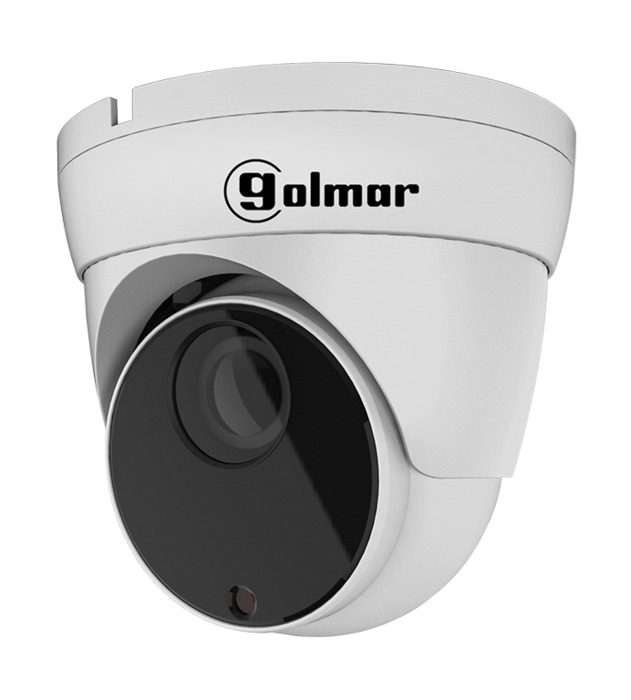

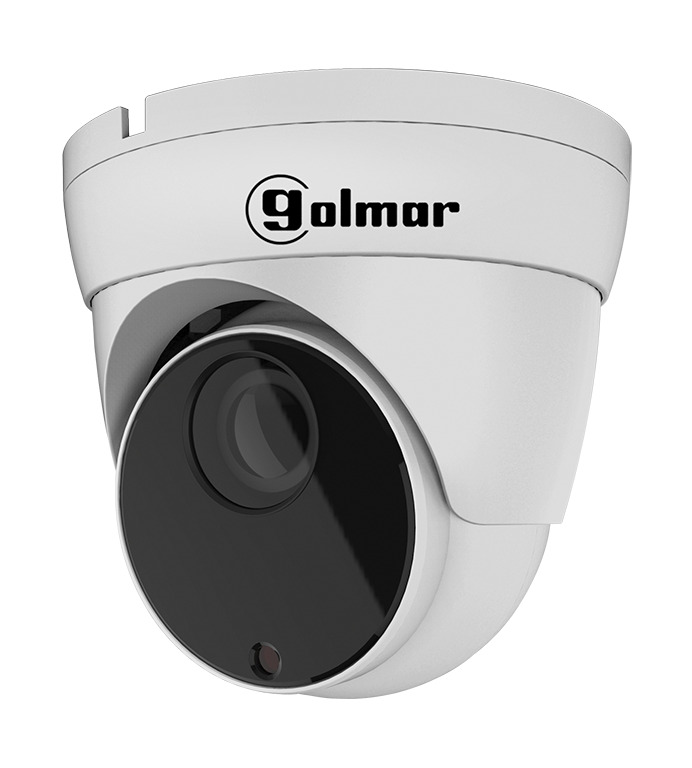

CIP-24D5MA 5Mpx camera with motorized lens
Reference : CIP-24D5MA
Product code: 31691030
EAN code : 8429898018539
- Dome with video analysis and motorized lense 5Mpx
- 1/2.8" Progressive CMOS Sensor
- 2.8-12mm motorized autofocus optics
- Field of view 109° - 32°
- Compression H.265 / H.264
- Owner protocol / Onvif 2.6
- Advanced video analysis (perimeter, crossing line, stationary object,
- pedestrian detection, face detection, counter)
- 40 leds (SMD) / 40m
- Degree of protection IP66
- With audio terminal, reset, alarm, video output
- Dimensions 135 (Ø) x 120(P)mm
- Power supply 12Vcc / PoE
More information
| Specifications | |
|---|---|
| Type | Domo |
| Technology | IP |
| Max. Resolution | 5Mpx |
| Images by sec. (FPS) | 30 |
| Colour | Blanco |
| Mounting | Techo |
| Lense | Motorizada |
| Focal length | 2.8-12mm |
| Zoom (x) | 4 |
| Max. Aperture ratio | 1,.8 - 3,3 |
| Horizontal field of view (º) | 107 - 34 |
| Vertical field of view (º) | 55 - 19 |
| Night vision mode | Día/Noche |
| IR distance max. (m) | 45 |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,3D-DNR |
| Bitrate | 256Kbps ~ 8Mbps |
| Main Stream (FPS) | 30fps @ 5MPx (2592x1944) |
| Sub Stream (FPS) | 30fps @ 720Px (1280x720) |
| Video compression | H.264,H.265 |
| Audio compression | Blanco |
| Video Analysis | LCD,PID,PD,VD,FD,SOD,CC,CD,QD,HM |
| Internal storage | Sí (máx 256Gb) |
| Network interface | RJ45 |
| Built-in microphone | No |
| Built-in speaker | No |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS |
| Compatibility | Blanco |
| Degree of protection (IP) | IP67 |
| Material | 30fps @ 5MPx (2592x1944) |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -35 |
| Relative humidity work (max.) | 95% |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Rest consumption (W) | 3 |
| Max. consumption (W) | 9 |
| Dimensions - High (mm) | 127 |
| Dimensions - Diameter (mm) | 135 |
| Weight (gr.) | 846 |
| Certifications | CE,RoHS |
