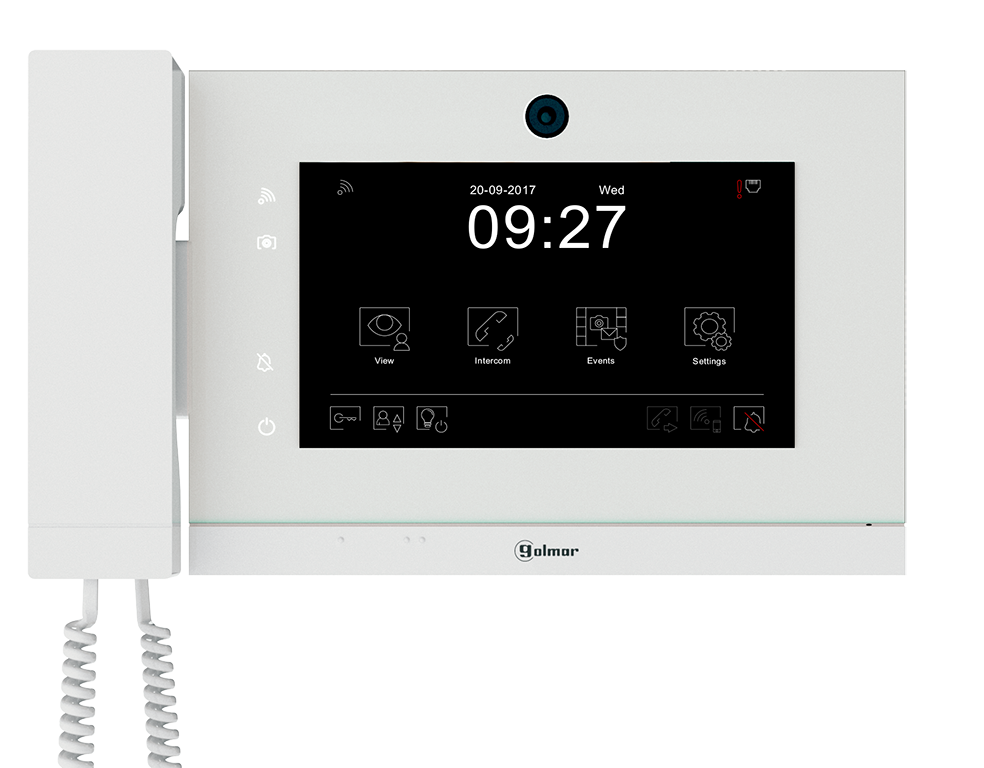

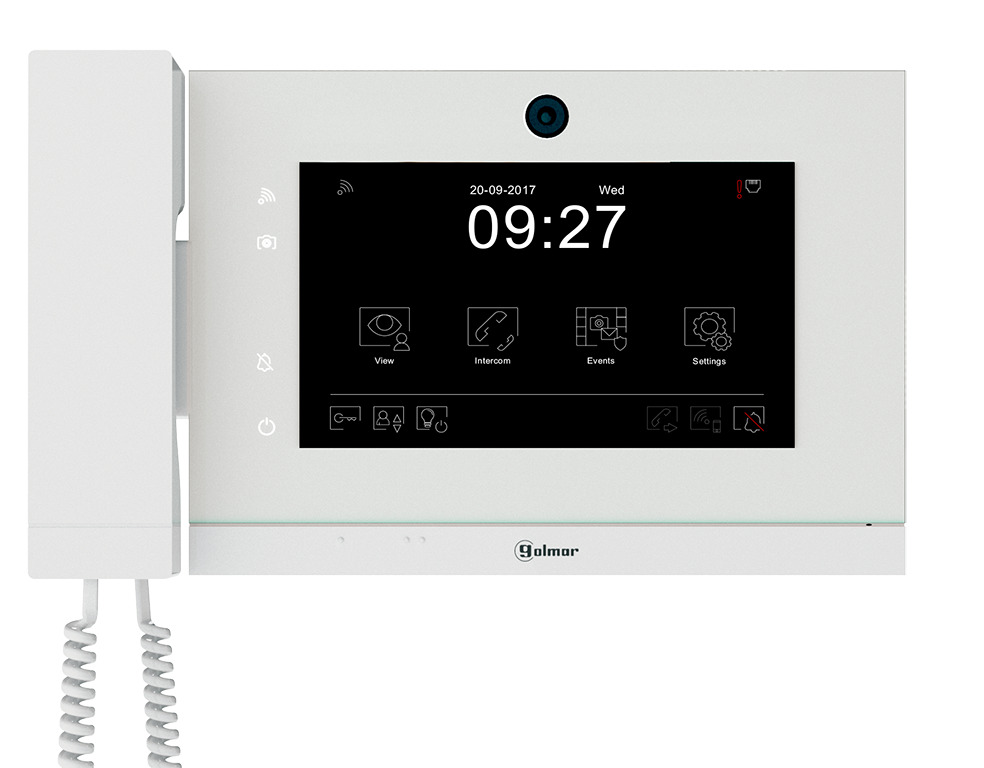

CE-ART 7/G+ guard unit
Reference : CE-ART 7/G+
Product code: 12379703
EAN code : 8429898024608
- TCP/IP protocol "G+" digital installation.
- Housing made of white ABS plastic.
- 7" touch screen.
- Surface or desktop installation with SOB-UNI support.
- High efficiency speakers.
Dimensions: 262(W) x 154(H) x 31(D) mm.
More information
- Virtual keyboard for call dialing.
- Call to other monitors or concierge units.
- Image memory and call list.
- Outdoor panel tracking function and CCTV IP camera tracking.
- Direct door opening button.
- Messaging service for short text messages and emergency broadcast messages.
- Monitoring of ONVIF protocol CCTV cameras (up to 32).
- Camera for viewing from tenants to janitor during conversation.
- Notification of alarms that have occurred in apartments.
- Event registration.
- Connection via RJ-45 connector.
| Specifications | |
|---|---|
| Type of device | Vídeo |
| Serie | ART |
| Mounting | Supericie |
| Audio of communication | Dual auricular manos libres |
| Call type | Desvio de llamada,Llamada individual |
| Vocal messages | Yes |
| Available languages | Inglés,Español,Portugués |
| Ringtones | 6 |
| Speaker power (W) | 1.5 |
| Intercom | Toda la instalación |
| Integrated camera | No |
| Integrated WiFi | No |
| Remote Access / App | Web |
| Operation | Pantalla tactil |
| Inductive loop | No |
| Guidance LEDs | Yes |
| Size (inches) | 7 |
| Resolution | 1024x600 px |
| Minimum illumination (lux) | 420 |
| Response time (ms.) | 25 |
| Number of colors (Mill.) | 16.7 |
| Video format | HDTVI |
| Format / Video Compression | H.264 |
| Format / Audio Compression | HDTVI |
| Log of calls | Yes |
| Management software | Yes |
| Programming | Ordenador,Desde el própio dispositivo |
| HW platform | Android |
| Protocols | TCP/IP |
| Memory slot | TCP/IP |
| Internal storage | 1 |
| Memory Image | Yes |
| Volume settings. | 1 |
| Input voltage (V) | 12Vcc,PoE,18Vcc |
| Requires additional feeder | No |
| Rest consumption (W) | 4.4 |
| Max. consumption (W) | 6.5 |
| Installation | UTP |
| Max. (M) | 100 |
| Compatibility | ONVIF,Golmar,IP SIP,VoIP |
| Technology | IP G+ |
| Functions | No molestar,Fecha - hora en pantalla,Auto-encendido,Control de ascensores |
| Additional functions | No molestar,Fecha - hora en pantalla,Auto-encendido,Control de ascensores |
| Inputs | HZ |
| Outputs | Sonería Auxiliar,12Vcc |
| Removable connectors | Yes |
| Built-in microphone | Yes |
| Microphone sensitivity (DB) | 40 |
| Certifications | 0 |
| Manufactured according to Norma. | HZ |
| Degree of protection (IP) | 30 |
| Relative humidity work (max.) | 90 |
| Relative humidity Work (min.) | 10 |
| Maximum working temperature (ºC) | 40 |
| Minimum working temperature (ºC) | -10 |
| Mounting frame included | Yes |
| Material | 1 |
| Dimensions - Width (mm) | 262 |
| Dimensions - High (mm) | 154 |
| Dimensions - Deep (mm) | 31 |
| Colour | 0 |
| Weight (gr.) | 500 |
