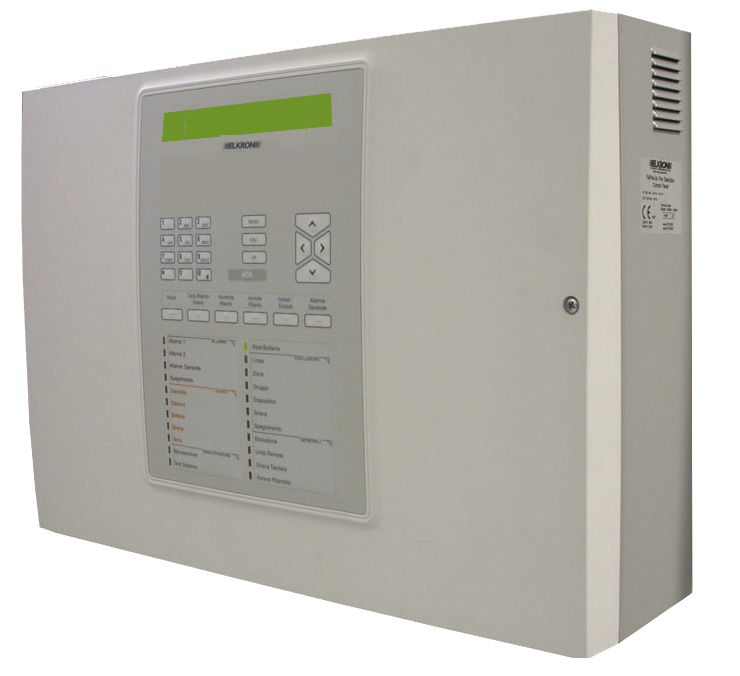

Compact 1-loop analog fire control panel FAP541
Reference : FAP541
Product code: 80SC6100121
EAN code : 8033959745823
- FAP500 Series Compact Analog Fire Detection Control Panel, 1 loop
- Certified according to EN54-2 and EN54-4 standards (0051-CPD-0240)
- Metal enclosure with ABS plastic front panel
- Addressing types: auto-addressable, sequential, preconfigured, updatable
- Controls up to 128 devices per loop
- Locally programmable via keypad (PS2) or computer (USB port)
- Controls up to 16 repeater panels via optional RS232/485 module
- Master/Slave connection supporting up to 32 panels via optional RS232/485 module
- Associates up to 50 IO500 actuator modules per zone, configurable as input or output
- Backlit display 4 x 40 characters
- Chronological log with 1000-event memory
- Maximum loop length: 2000 m (2 x 1.5 mm² cable)
- Volt-free outputs: Alarm 1, Alarm 2, Fault, Programmable (exclusion / power failure)
- Field output: 27 V DC (max. 1.5 A)
- Supervised siren output (max. 0.5 A)
- Total current supplied by panel: 1.5 A
- Requires 2 batteries (not included) BAT-12A
- Dimensions: 490 (W) x 350 (H) x 140 (D) mm
More information
| Specifications | |
|---|---|
| Serie | FAP500 |
| Installation | 2 hilos |
| Technology | Analógico |
| Comunication Type | BUS |
| Number of zones | 480 |
| Number of zones (max.) | 480 |
| Number Loops | 1 |
| Number Loops (max.) | 1 |
| Devices Line (max.) | 128 |
| Battery charger | Yes |
| Exit relay. | 2 |
| Mermaid output. | 2 |
| Ventilation output | 0 |
| Alarm output | 0 |
| Signaling | Led,Pantalla,Acústicamente |
| Input voltage (Vac) | 230 |
| Mounting | Superfície |
| Use | Interior |
| Colour | 1 |
| Manufactured according to Norma. | 128 |
| Certifications | 1 |
| Dimensions - High (mm) | 350 |
| Dimensions - Width (mm) | 490 |
| Dimensions - Deep (mm) | 140 |
