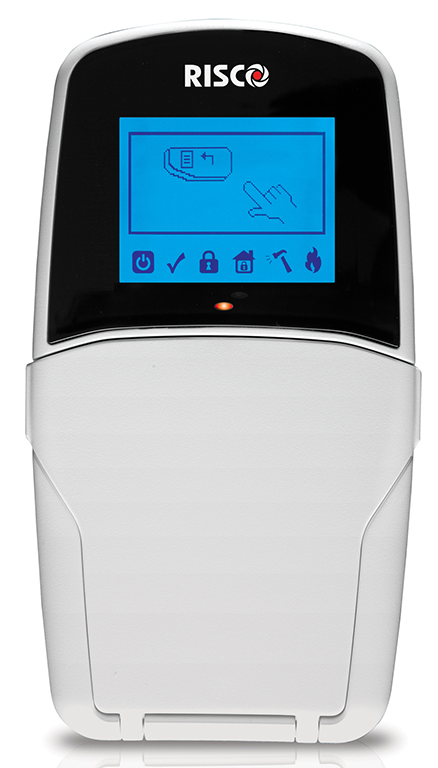

Wired Grade 2 LCD keypad for LIGHTSYS+ control panel
Reference : KP432D
Product code: RP432KP0000
EAN code : 879196007465
- Blue graphic display
- Blue backlit membrane keypad
- Flip-down keypad protective cover
- 4-wire BUS connection
- Maximum distance from control panel: 300 m
- Maximum power consumption: 52 mA
- Dimensions: 84(W) x 153(H) x 28(D) mm
More information
| Specifications | |
|---|---|
| Installation | 4 hilos BUS |
| Technology | 1 |
| Serie | LightSys + |
| Grade of security | 2 |
| Assignable to an area | Yes |
| Proximity reader | No |
| Number of buttons | 18 |
| Signaling | Led,Pantalla,Acústicamente |
| Tactile | Yes |
| Use | Interior |
| Colour | 1 |
| Voltage | Interior |
| Material | 0 |
| Dimensions - High (mm) | 153 |
| Dimensions - Width (mm) | 84 |
| Dimensions - Deep (mm) | 24 |
