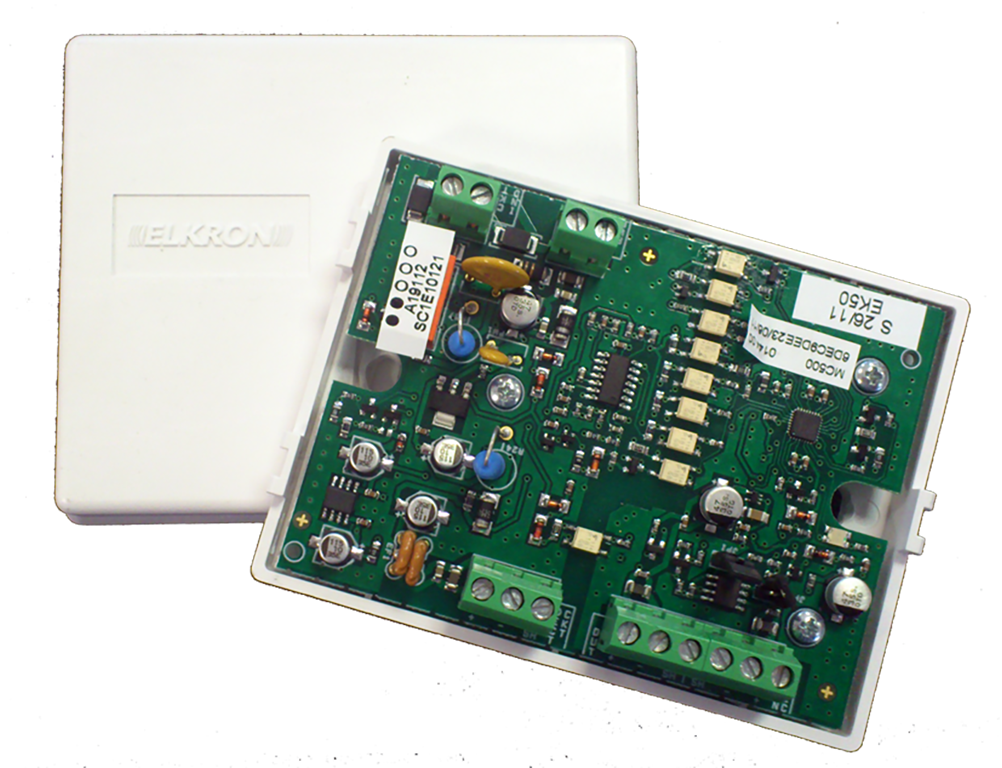

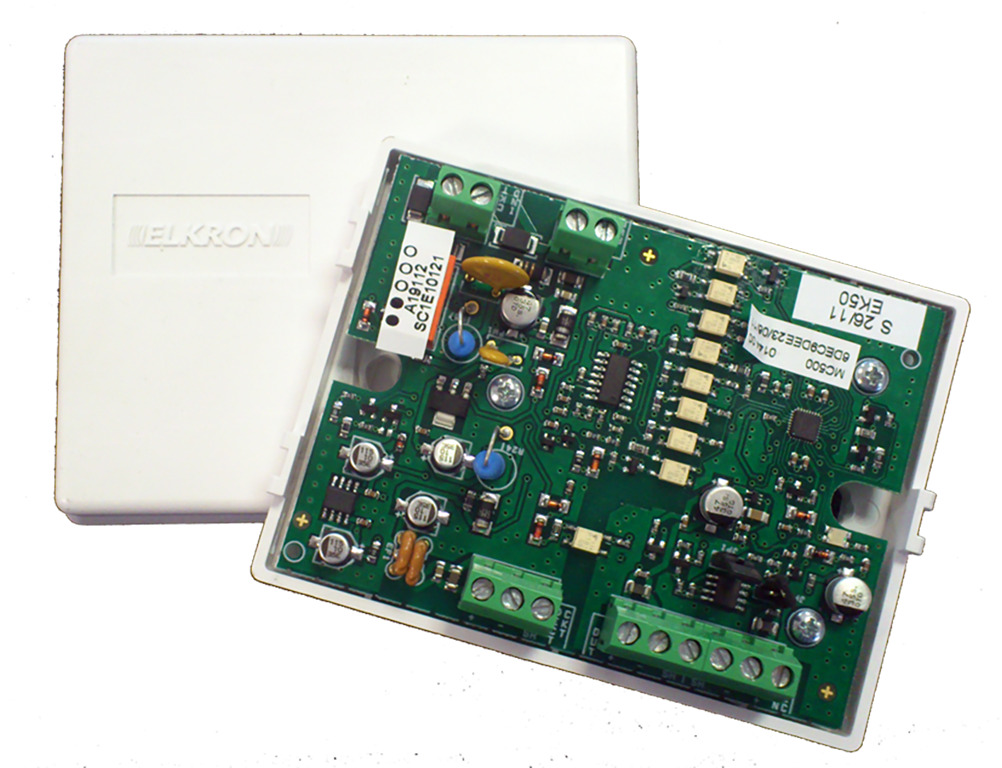

Analogue-to-Conventional Interface Module
Reference : MC500
Product code: 80SC1E10121
EAN code : 8033959744420
- For FAP500 and FAP500EVO Series Analogue Control Panels
- Certified according to EN 54-17:2007 by EVPU
- 1 line output for up to 32 Golmar device
- Maximum line length: 1000m (2 x 1.5mm² cable)
- Supervised siren output (maximum 0.5A, requires external power supply)
- Bicolour LED: red (alarm), green (standby)
- Power supply voltage: 20V DC (modulated)
- Average standby consumption: 1.2mA at 20V DC
- Average alarm consumption: 3.2mA at 20V DC
- Operating temperature: -10°C to 50°C
- Maximum relative humidity: 95%
- Supplied with mounting box
- Dimensions: 109(W) x 91(H) x 30(D) mm
More information
| Specifications | |
|---|---|
| Technology | Analógico |
| Serie | FAP500 |
| Comunication Type | BUS |
| Inputs | 2 |
| Exit relay. | 2 |
| Incorporates insulator | Yes |
| Certificates | Interior |
| Manufactured according to Norma. | 2 |
| Dimensions - High (mm) | 91 |
| Dimensions - Width (mm) | 109 |
| Dimensions - Deep (mm) | 30 |
