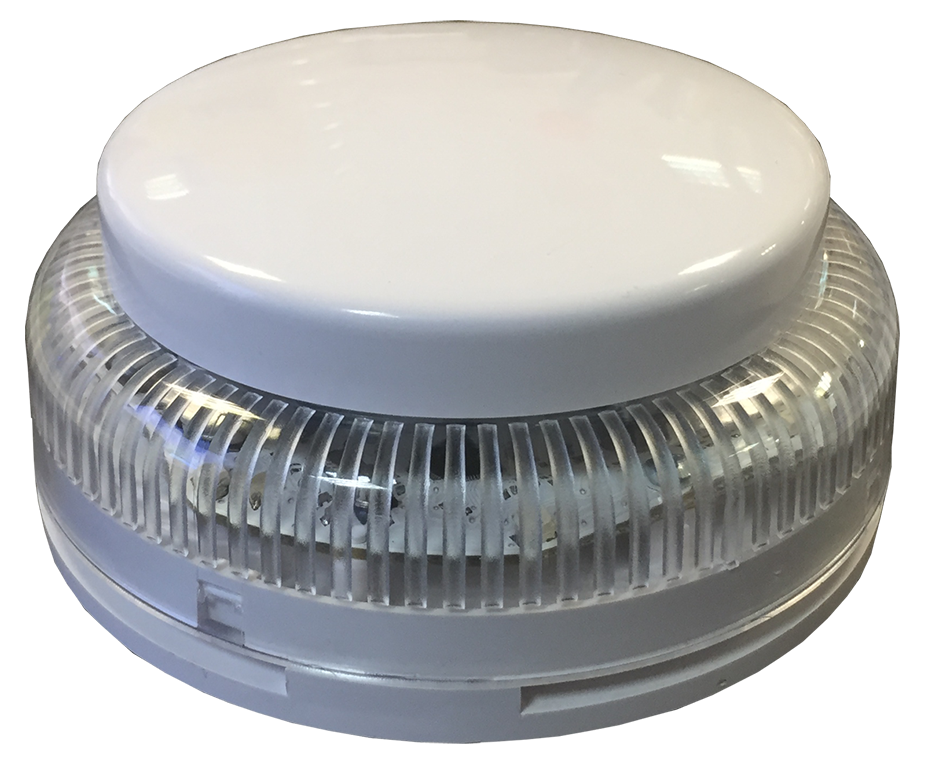

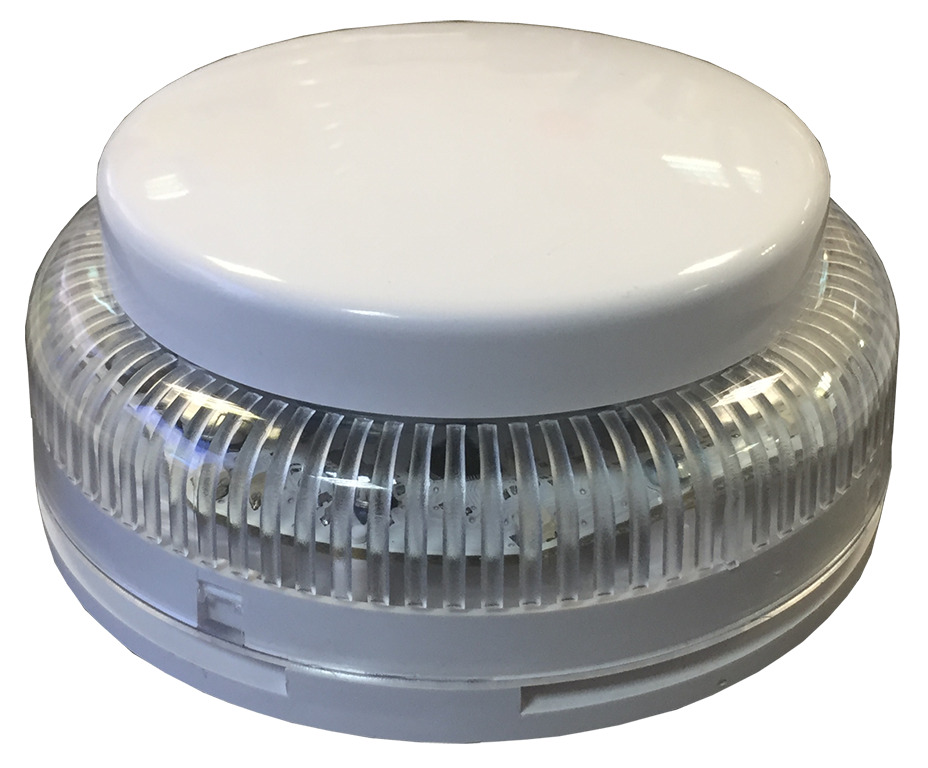

Addressable analog optical-acoustic siren
Reference : SD500LI
Product code: 80SD5X00121
EAN code : 8034034445164
- Compatible with FAP541, FAP544EVO, FAP548EVO control panels
- Manufactured according to EN 54-3 and EN 54-17 standards
- Complies with the European Construction Products Directive (89/106/EEC)
- Sound intensity: 78 dB at 1 m
- Selectable acoustic tone
- Acoustic-flash synchronization
- Short-circuit protection
- Maximum 12 units per line
- Finished in heat-resistant ABS plastic
- Weight: 162 g
- Dimensions: 114 (Ø) × 51 (H) mm
More information
| Specifications | |
|---|---|
| Installation | 4 hilos,2 hilos BUS |
| Technology | Analógico |
| Serie | FAP500 |
| Type of activation | Por la central |
| Voltage | 1 |
| Drive on | Yes |
| Signaling | Óptica,Acústica |
| S.P.L. @ with maximum power (db) | 78 |
| Synchronization | Yes |
| Action indicator output | Yes |
| Lettering | 0 |
| Mounting | Pared,Techo,Superficie,Entrada directa |
| Use | Interior |
| Installation height | 1 |
| Resettable button | No |
| Certifications | 1 |
| Material | 4 hilos,2 hilos BUS |
| Degree of protection (IP) | 21 |
| Dimensions - High (mm) | 54 |
| Weight (kg.) | 0.162 |
