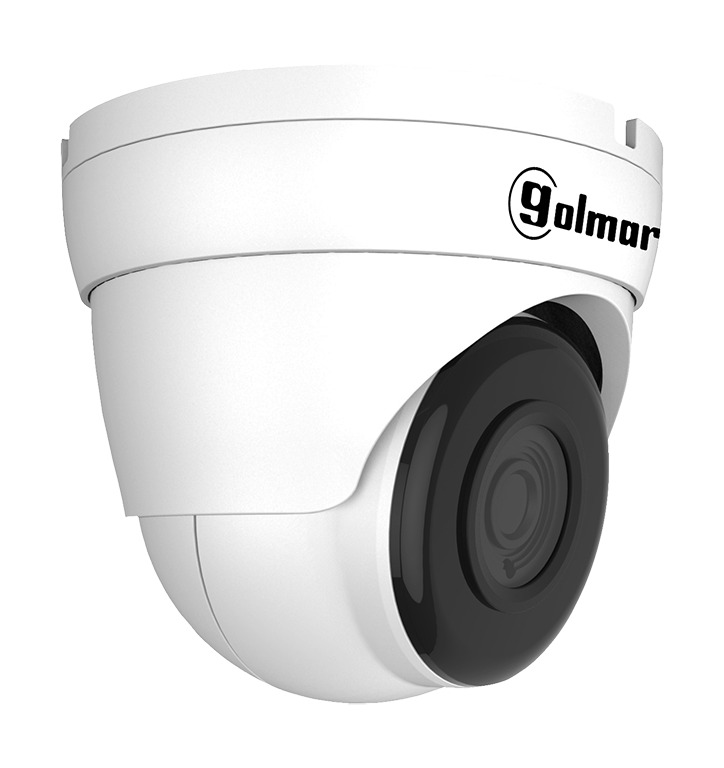

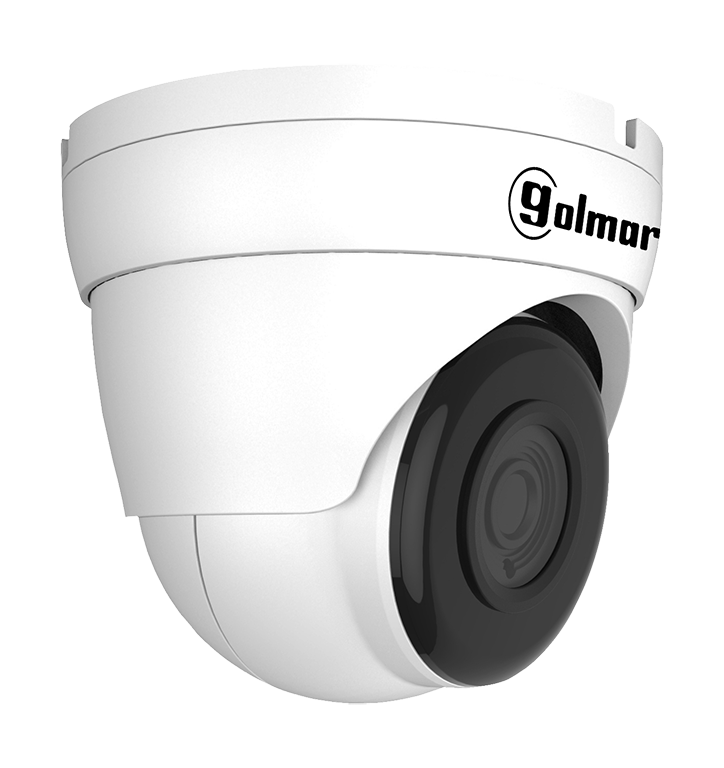

AHD4-21D2E 2Mpx camera with 2.8mm lens
Reference : AHD4-21D2E
Product code: 31600705
EAN code : 8429898025353
- SC2332 sensor with 1080p resolution
4 in 1 technology (AHD / CVI / TVI / CVBS)
Built-in microphone
With AOC technology (audio over coaxial)
2.8mm fixed lense
88° horizontal viewing angle
30m range infrared illumination
IP66 protection rating
Compatible with depp base:
C-BASE01 (31691010) and C-BASE02 (31691011)
Dimensions: 100(Ø) x 90(H) mm
More information
| Specifications | |
|---|---|
| Type | Dome |
| Technology | Analogic |
| Video format | HDTVI,HDCVI,AHD,CVBS |
| Image sensor | SC2332 with 1080p resolution |
| Max. Resolution | 2Mpx |
| Images by sec. (FPS) | 25 |
| Colour | White |
| Mounting | Ceiling |
| Video output | BNC |
| Lense | Fixed |
| Focal length | 2,8mm |
| Horizontal field of view (º) | 88 |
| IR distance max. (m) | 30 |
| WDR | No |
| AOC | Yes |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR,D-WDR |
| Network interface | No |
| I / O alarms | No |
| I / O audio | No |
| Built-in microphone | Yes |
| UTC | Yes |
| Integrated WiFi | No |
| Compatibility | C-BASE01 and C-BASE02 |
| Material | Aluminium |
| Maximum working temperature (ºC) | 50 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 90 |
| Input voltage (V) | 12Vcc |
| Included power supply | No |
| Dimensions - Diameter (mm) | 100 |
| Dimensions - Deep (mm) | 90 |
| Weight (gr.) | 300 |
| Certifications | CE,RoHS |
