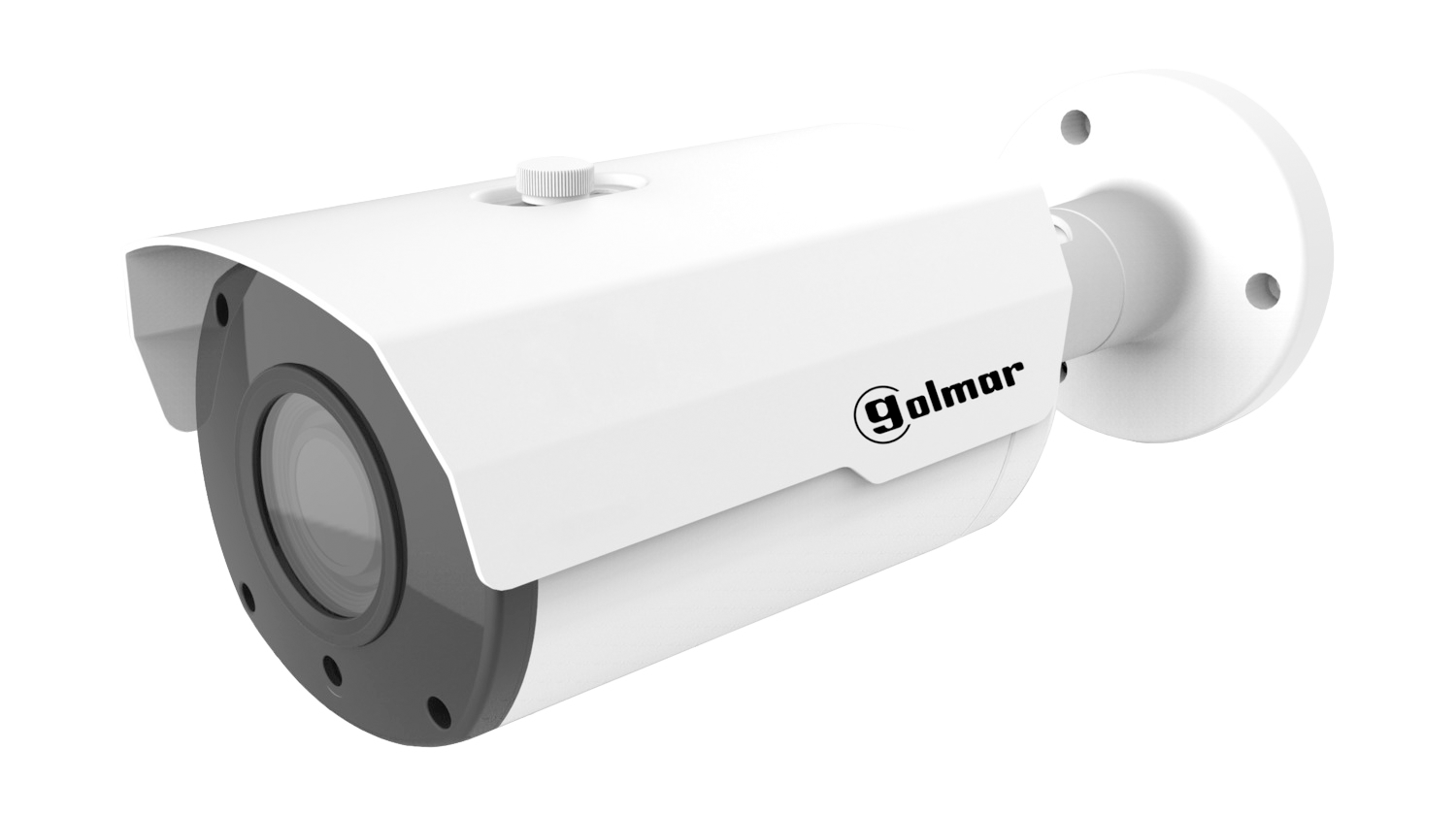

AHD4-24B8 motorised bullet camera 4K (8MPx)

Reference : AHD4-24B8

Product code: 31600260

EAN code : 8429898022703

  • 1/2.7" progressive CMOS sensor
    4-in-1 technology (AHD / CVI / TVI /CVBS)
    2.8 to 12mm autofocus motorized lense
    35m range infrared illumination
    IP66 protection rating
    Compatible with C-BASE01, C-BASE02 and C-BASE05
    Dimensions: 84(Ø) x 242(D) mm

More information
Video
Sensor SC8238 1/2.7" CMOS Progressive
Total pixels 3872(H)×2180(V)
Effective Pixels 3840(H)×2160(H)
Scanning system Progressive
Min. illumination 0.05lux@F1.2(AGC ON),0Lux with IR ON
Video output BNC
Resolution 8MP 3840(H)x 2160 (V)
Max. framerate AHD/TVI/CVI: 8MP@15fps
Focal Length (Zoom Ratio) CVBS: 960H
Max. Aperture Ratio 2.8-12mm motorized lens
Angular field of view F1.6 (W) ~ F3.2 (T)
Min. Object distance H:116-34° / V:59-19° / D:142-39
Lens Type 0.8m
Operational motorised lens
LED Range
OSD up to 35m
Day & Night Ext / Colour / B/W
Backlight compensation Off / User BLC
WDR D-WDR (Power Off / Power On)
Noise Reduction 3D DNR
Gain Control Auto
White balance ATW
Electronic shutter 1/25 s to 1/50,000 s
Mirror Yes
Remote control interface ACP (Coaxial AHD Protocol)
Video transmission distance Max. 300m
