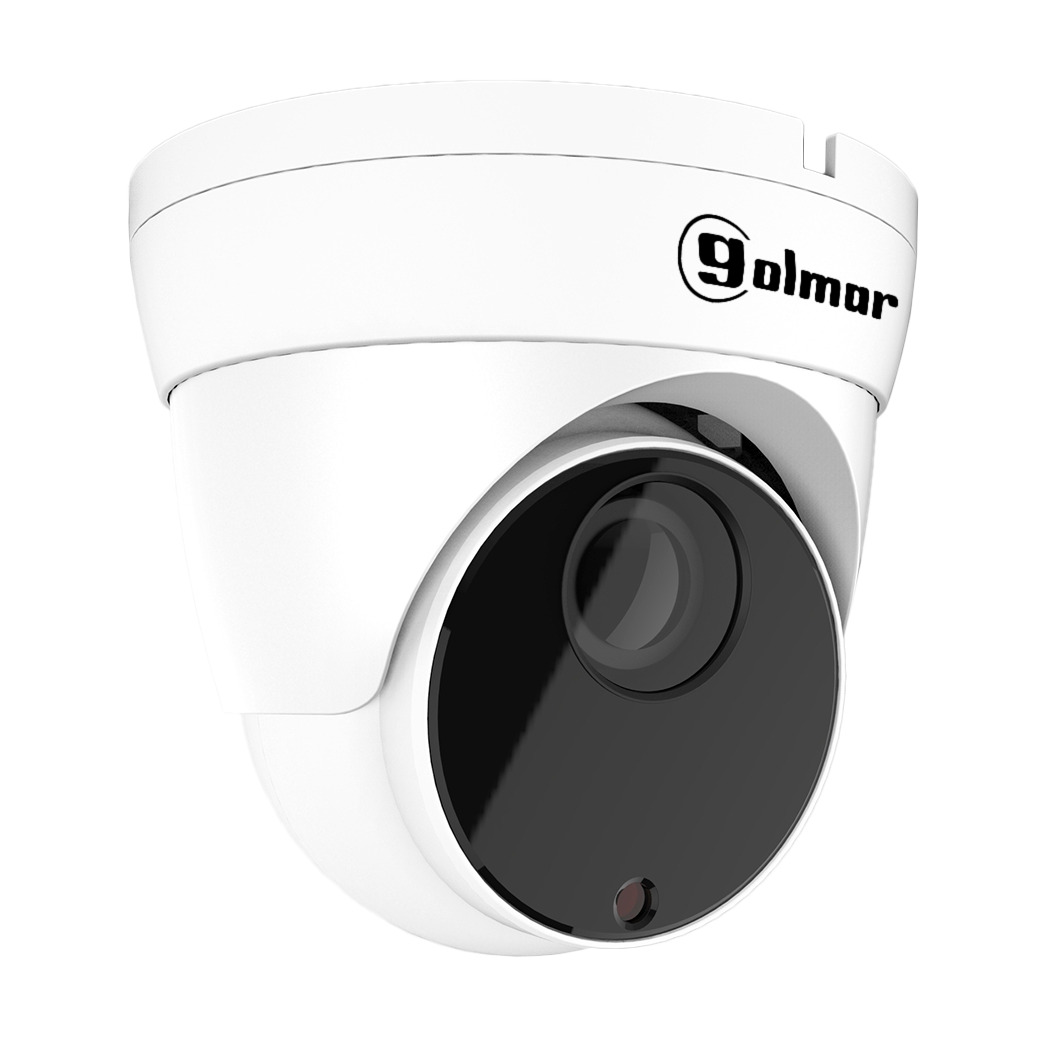

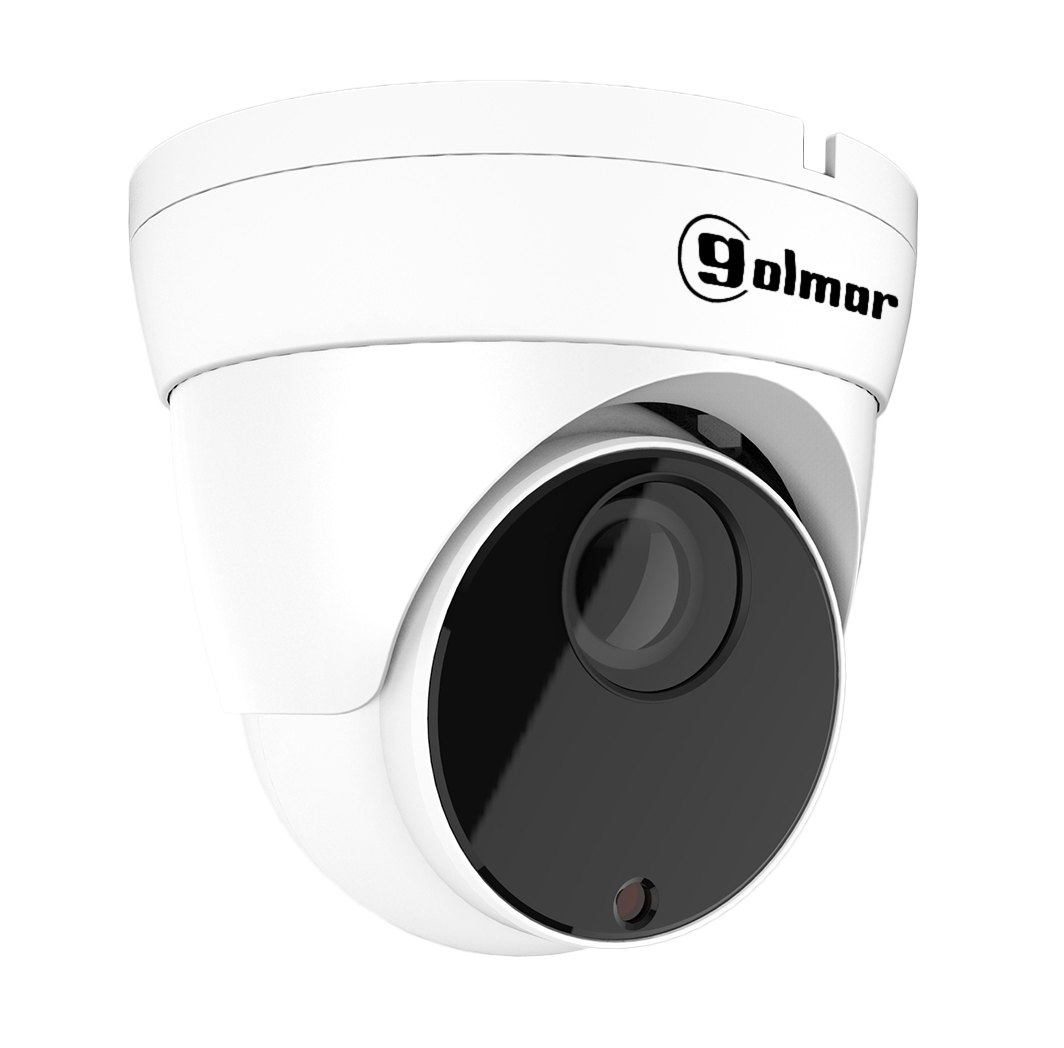

Dome camera AHD4-24D2 with 2.8-12mm Optics
Reference : AHD4-24D2
Product code: 31600711
EAN code : 8429898024530
- Sony IMX307 sensor with 1080p resolution
4-in-1 technology (AHD / CVI / TVI /CVBS)
2.8 to 12mm varifocal optics
40m range infrared illumination
IP66 protection rating
Compatible with C-BASE02 and C-BASE04 connection base
Dimensions: 135(Ø) x 127(H) mm
More information
| Specifications | |
|---|---|
| Type | Dome |
| Technology | Analogic |
| Video format | HDTVI,HDCVI,AHD,CVBS |
| Image sensor | Sony IMX307 with 1080p resolution |
| Max. Resolution | 2Mpx |
| Images by sec. (FPS) | 25 |
| Colour | White |
| Mounting | Ceiling |
| Video output | BNC |
| Lense | Varifocal |
| Focal length | 2.8-12mm |
| Horizontal field of view (º) | 101.7° - 33.5° |
| Vertical field of view (º) | 52.5° - 18.8° |
| Minimum illumination (lux) | 0.01lux @ F1.0(AGC ON) |
| IR distance max. (m) | 40 |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR |
| Network interface | No |
| I / O alarms | No |
| I / O audio | No |
| Built-in microphone | No |
| UTC | Yes |
| Integrated WiFi | No |
| Compatibility | C-BASE02 and C-BASE04 |
| Material | Aluminium |
| Maximum working temperature (ºC) | 55 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 90 |
| Input voltage (V) | 12Vcc |
| Included power supply | No |
| Rest consumption (W) | 5 |
| Dimensions - Diameter (mm) | 135 |
| Dimensions - Deep (mm) | 127 |
| Weight (gr.) | 760 |
| Certifications | CE,RoHS |
