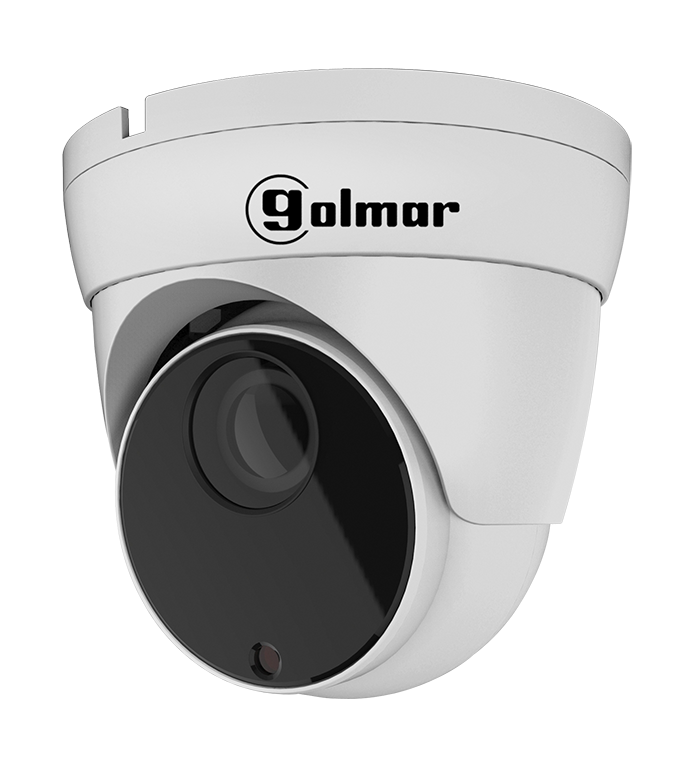

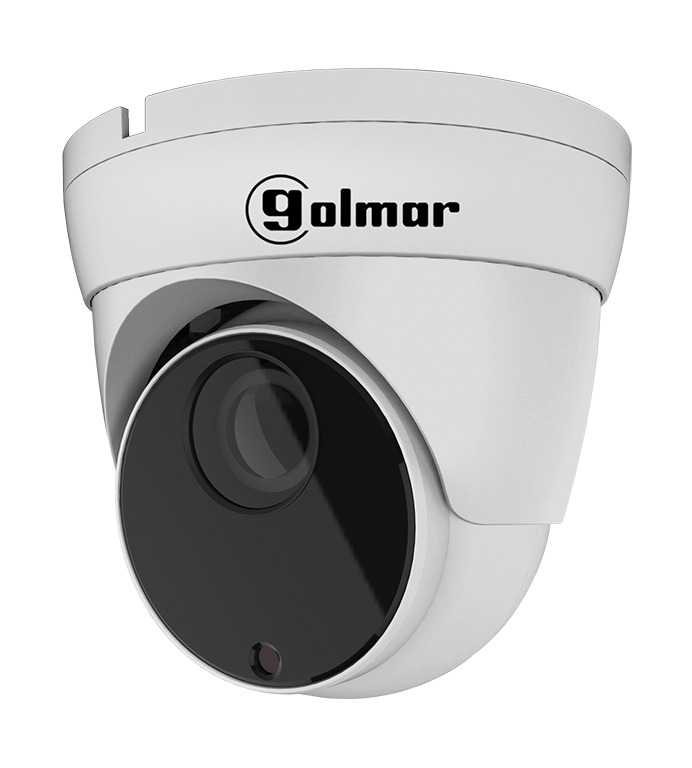

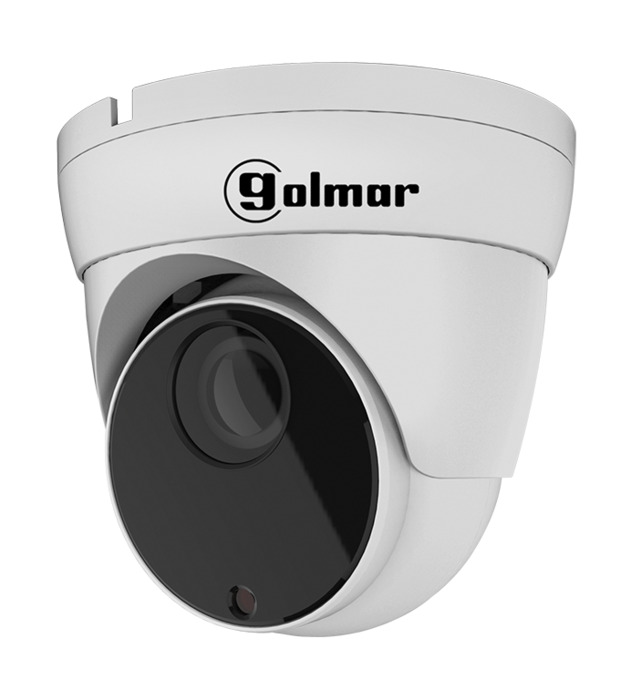

AHD-24D5 motorised dome camera 5MPx

Reference : AHD4-24D5

Product code: 31600252

EAN code : 8429898020563

  • 5Mpx fixed dome with 2.8 to 12mm lense
    1/2.7" progressive CMOS sensor
    4 in 1 technology (AHD / CVI / TVI /CVBS)
    2.8 to 12mm autofocus motorized lense
    Infrared illumination with 40m range
    IP66 protection rating
    Compatible with connection base C-BASE02 and C-BASE04
    Dimensions: 135(Ø) x 120(H) mm

More information
Camera
Image sensor SC5235 1/2.7" Progressive CMOS
System PAL/NTSC
Image fps 5AHD/5TVI: 5MP@20fps
  4AHD/4CVI/4TVI: 4MP/P@25fps 4MP/N@30fps
  CVBS: 960H
Resolution 5MP 2592(H)×1944(V)
Minimum illumination 0.05lux @ F1.2 (AGC ON), 0Lux with IR ON
Shutter 1/15 s ~ 1/50,000 s
Lense 2.8-12 mm motorized
Horizontal field of view H.FOV:81.04°(W)—28.78°(T)
Day / Night Mechanical IR filter
IR cut filter 850nm
Synchronisation Internal Sync
DWDR Yes
Menu
AGC Yes
Day/Night mode EXT / Auto / Colour / BW
WB Auto / Manual
BLC Yes
S/N Ratio 35dB
OSD Yes
Interface
Video output 1 x BNC
Switch AHD / TVI / CVI / CVBS
General
IP rating IP66
Power supply 12V
Power consumption Max 4W
IR range up to 40m
Communication UTC (coaxial)
