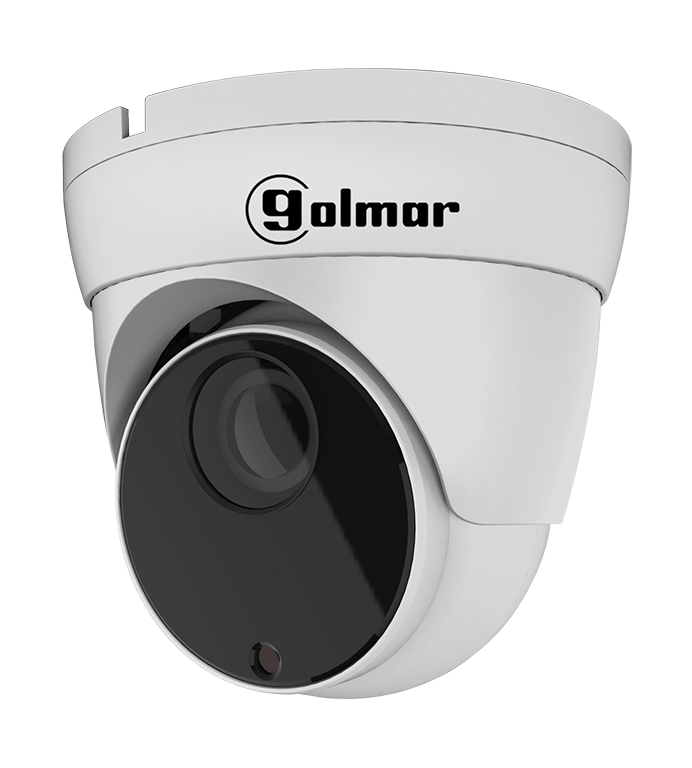

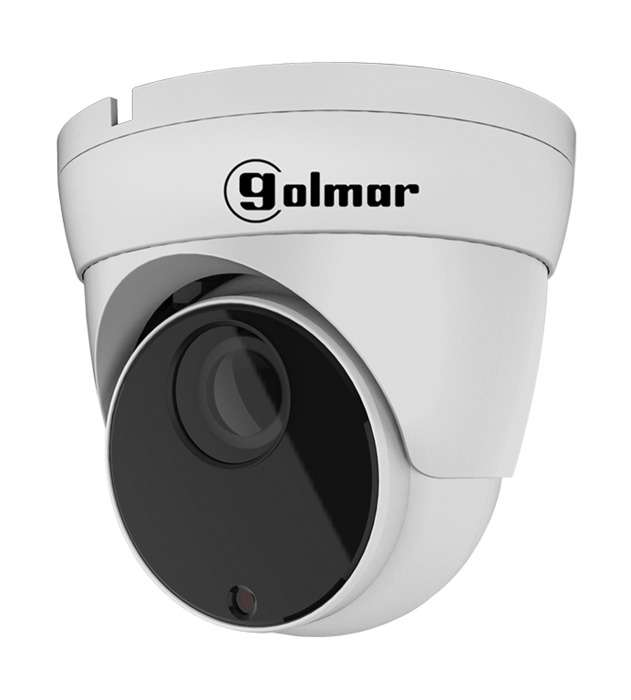

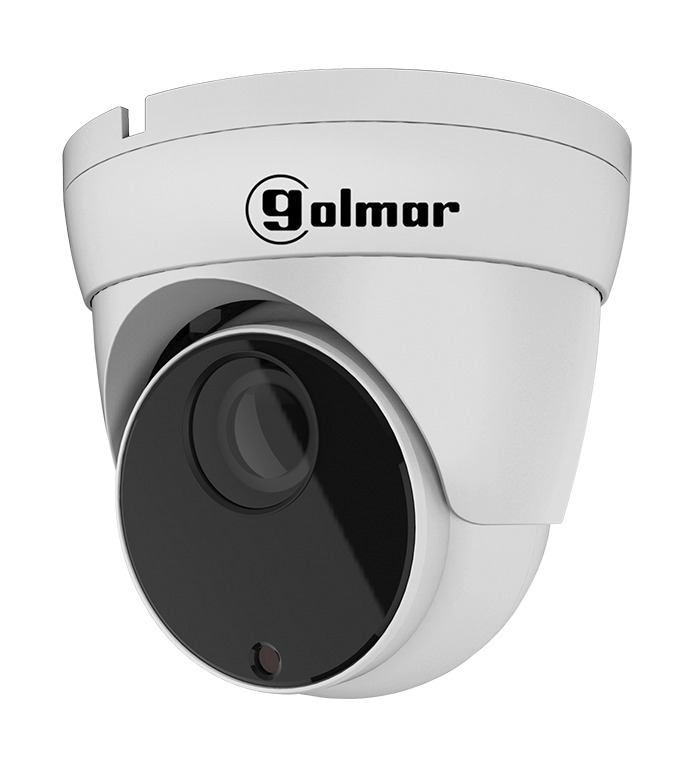

AHD4-24D8 motorised dome camera 4K (8MPx)

Reference : AHD4-24D8

Product code: 31600261

EAN code : 8429898022710

  • 8Mpx fixed dome with 2.8 to 12mm lense
    1/2.7" progressive CMOS sensor
    4 in 1 technology (AHD / CVI / TVI /CVBS)
    2.8 to 12mm autofocus motorised lense
    Infrared illumination with 35m range
    IP66 protection rating
    Compatible with connection base C-BASE02 and C-BASE04
    Dimensions: 135(Ø) x 120(H) mm

More information
Video
Sensor SC8238 1/2.7" CMOS Progressive
Total pixels 3872 (H) × 2180 (V)
Effective Pixels 3840 (H)× 2160 (V)
Scanning system Progressive
Min. illumination 0.05lux@F1.2(AGC ON),0Lux with IR ON
Video output BNC
Resolution 8MP 3840(H)x 2160(V)
Max. framerate AHD/TVI/CVI: 8MP@15fps
  CVBS: 960H
Focal Length (Zoom Ratio) 2.8-12mm Motorized Lens
Max. Aperture Ratio F1.6 (W) ~ F3.2 (T)
Angular field of view H:116-34° / V:59-19° / D:142-39
Min. Object distance 0.8m
Lens Type motorised lens
Operational
LED Range up to 35m
OSD English
Day & Night Ext / Colour / B/W
Backlight compensation Off / User BLC
WDR D-WDR (Power Off / Power On)
Noise Reduction 3D DNR
Gain Control Auto
White balance ATW
Electronic shutter 1/25 s to 1/50,000 s
Mirror Yes
Remote control interface ACP (Coaxial AHD Protocol)
Video transmission distance MAX 300m
Environment
Operating temperature and humidity -30°C ~ 55°C / 90%
IP protection IP66
Electrical characteristics
Power supply 12V DC
Power consumption ON: 5W, OFF: 1.5W
Mechanical characteristics
Colour / Material White / Aluminium
Dimensions (WxHxD) Ø135 X 120mm
Weight 698 g
Laws and regulations
Safety CE LVD
EMC CE EMC、FCC
ROHS RoHS2.0
