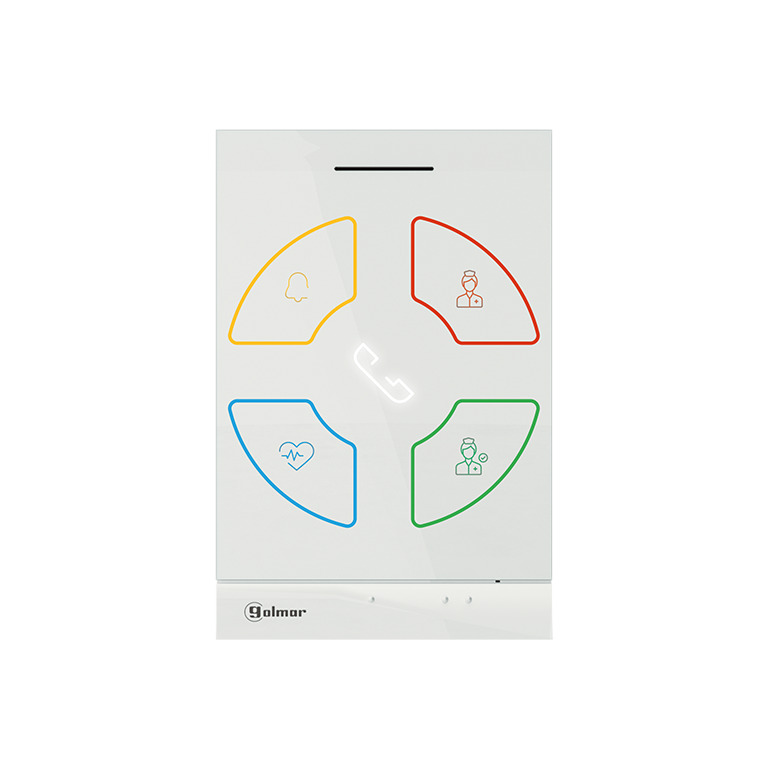

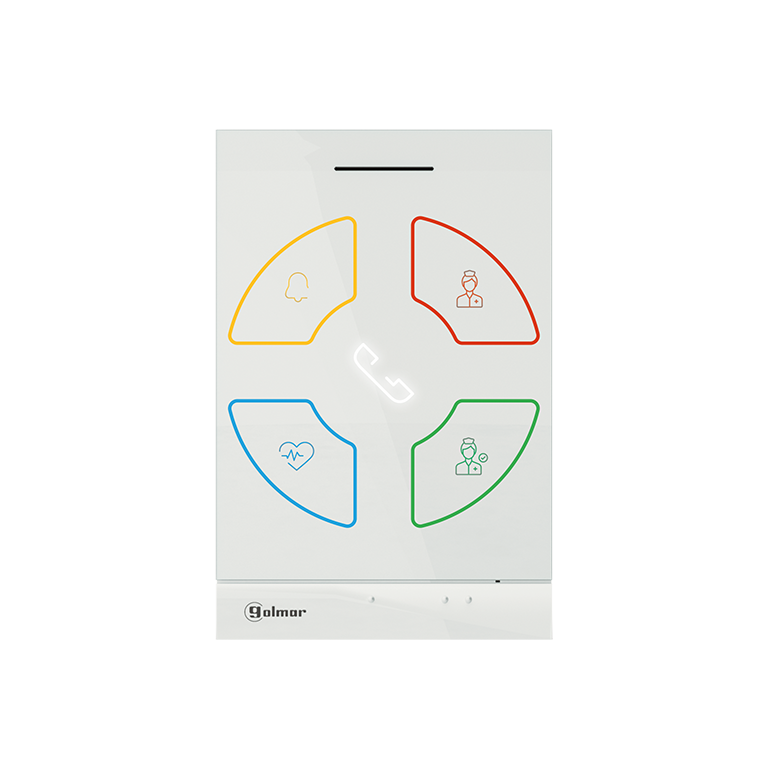

Room terminal ART 1/g+/HOSPITAL with audio.
Reference : ART 1/G+/HOSP
Product code: 10910140A
EAN code : 8429898029788
- Room terminal with duplex audio.
- Capacitive push buttons for call, presence, assistance and cardiac arrest.
- Reassurance LED.
- Includes mounting strip.
- Dimensions: 89(W) x 138(H) x 15(D) mm.
More information
- "G+" digital installation with TCP/IP protocol.
- Call and nurse presence buttons.
- Assistance and cardiac arrest buttons.
- Connection with up to 5 slave bed pears and 5 bathroom handles.
- Three separate inputs: audio call, assistance, and code blue.
- Possibility of powering it with 12Vdc local or 48V standard PoE.
- Secret duplex audio communication.
- Cleaning function with indicator light.
- Output for green and red VP/2CB door light.
- Housing made of white ABS plastic.
- Includes mounting strip.
- Surface installation, depth without strip 15mm and with strip 23mm.
