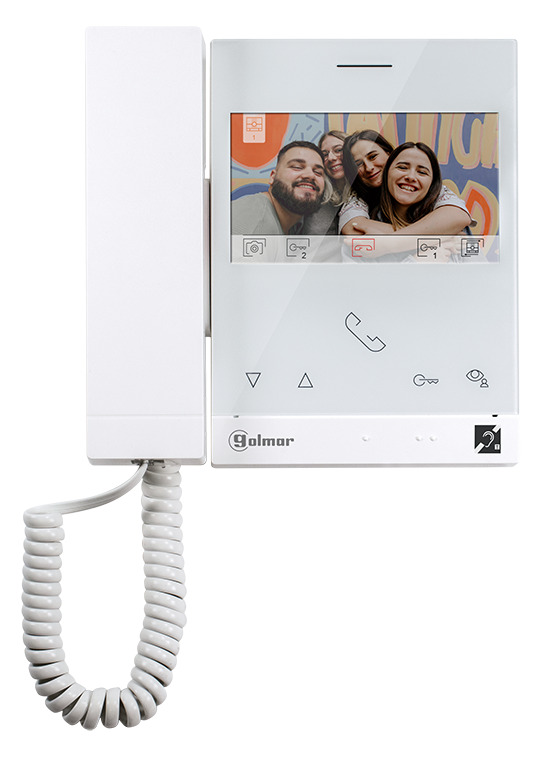

ART 4TH /G+ 4.3" monitor with handset
Reference : ART 4TH/G+
Product code: 12310400
EAN code : 8429898024851
- TCP/IP protocol "G+" digital installation.
- Monitor with 4.3" color screen.
- Case made of white ABS plastic.
- Handset with built in induction loop amplifier, that allows hearing impaired users to activate "T" mode on their hearing aid.
- Dual operation handset and handsfree communication.
- Surface mounting.
Dimensions: 150(W) x 155(H) x 35(D) mm.
More information
- Capacitive navigation buttons.
- High efficiency loudspeakers.
- Audio communications, video and secret door opening.
- Video-spy functions, auto-start, doctor mode and do not disturb.
- Intercommunication with other units of the house selectively.
- Personalization of ring tones.
- Connection to the entrance door pushbutton, which saves the use of the doorbell.
- Up to 6 monitors in the same house without additional power.
| Specifications | |
|---|---|
| Type of device | Video |
| Serie | ART |
| Mounting | Surface |
| Audio of communication | Dual handset hands-free,Full-duplex |
| Call type | Individual call,Group call |
| Vocal messages | Yes |
| Available languages | English,Spanish,French,Portuguese,Danish |
| Ringtones | 6 |
| Speaker power (W) | 1 |
| Intercom | Inside the apartment,All the installation |
| Units in parallel (max.) | 6 |
| Integrated camera | No |
| Integrated WiFi | No |
| Remote Access / App | Web |
| Operation | Soft Touch Push Button |
| Number of buttons | 5 |
| Inductive loop | Yes |
| Guidance LEDs | Yes |
| Size (inches) | 4.3 |
| Resolution | 480x272 |
| Minimum illumination (lux) | 230 |
| Response time (ms.) | 30 |
| Number of colors (Mill.) | 16.7 |
| Video format | HDTVI |
| Format / Video Compression | H.264 |
| Log of calls | Yes |
| Management software | Yes |
| Programming | Computer,From the own device |
| HW platform | Linux |
| Protocols | TCP / IP |
| Memory slot | Yes |
| Internal storage | 100 images |
| Memory Image | Yes |
| Volume settings. | 1 |
| Input voltage (V) | 12Vcc,PoE,18Vcc |
| Requires additional feeder | No |
| Rest consumption (W) | 2.6 |
| Max. consumption (W) | 3.3 |
| Installation | UTP |
| Max. (M) | 100 |
| Compatibility | ONVIF,Golmar,IP SIP,VoIP |
| Technology | IP G + |
| Functions | Do not disturb,Call to concierge,Date - On-screen,Auto start,Dr. Function,Access control,Lift control,UTC |
| Inputs | HZ |
| Outputs | Auxiliary ringer,12Vdc |
| Removable connectors | No |
| Built-in microphone | Yes |
| Microphone sensitivity (DB) | 40 |
| Degree of protection (IP) | 30 |
| Relative humidity work (max.) | 90 |
| Relative humidity Work (min.) | 10 |
| Maximum working temperature (ºC) | 40 |
| Minimum working temperature (ºC) | -10 |
| Mounting frame included | Yes |
| Material | ABS plastic |
| Dimensions - Width (mm) | 150 |
| Dimensions - High (mm) | 155 |
| Dimensions - Deep (mm) | 35 |
| Colour | White |
| Weight (gr.) | 400 |
