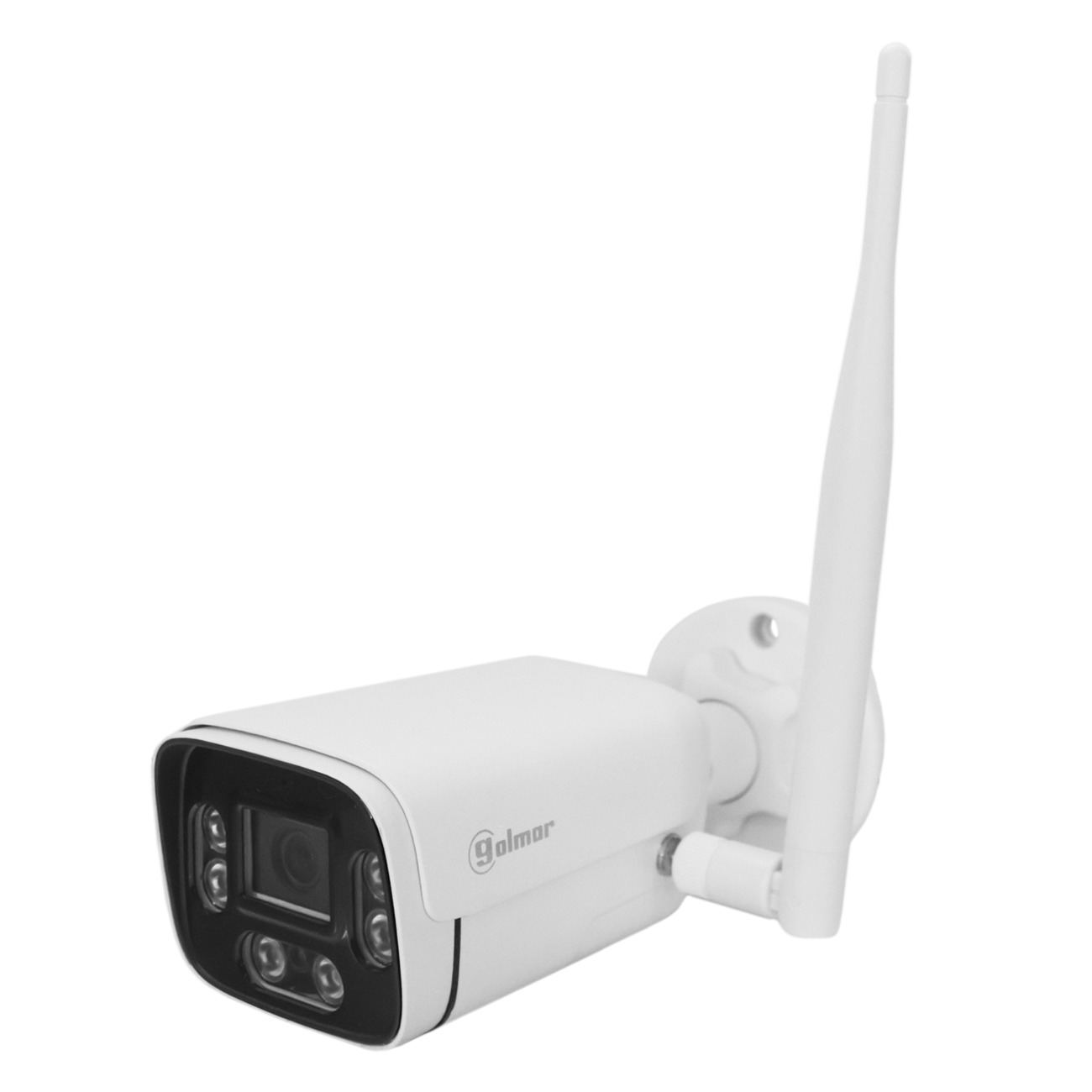

CIP-21B5W 5Mpx Wi-Fi camera with 2.8mm lens
Reference : CIP-21B5W
Product code: 31600995
EAN code : 8429898031149
- Indoor/outdoor Wi-Fi IP Bullet
2.8mm fixed lens
GC5603+T41 CMOS sensor with 5Mpx resolution
Infrared illumination with 30m range
Built-in microphone and speaker
Two-way audio
Human and vehicle detection
App notifications
Micro SD card slot (max. 128Gb)
2.4/5.8GHz Wi-Fi and Ethernet connectivity
IP66 protection rating
ONVIF 2.4 compatibility
Compatible with CamHiPro App
Compatible with CMS HiP2P
12Vdc power supply included
Dimensions: 70 (W) x 62 (H) x 180 (D)
More information
| Specifications | |
|---|---|
| Type | Bullet |
| Technology | IP |
| Image sensor | GC5603+T41 |
| Max. Resolution | 5Mpx |
| Images by sec. (FPS) | 25 |
| Colour | White |
| Mounting | Wall |
| Lense | Fixed |
| Focal length | 2,8 mm |
| Horizontal field of view (º) | 109 |
| Vertical field of view (º) | 57 |
| Night vision mode | Full Color |
| IR distance max. (m) | 30 |
| WDR | No |
| Additional functions | AWB,BLC,AES,D-WDR |
| Video compression | H.264,H.265 |
| Audio compression | G.711 |
| Internal storage | Yes (max 128Gb) |
| Built-in microphone | Yes |
| Built-in speaker | Yes |
| Integrated WiFi | Yes |
| Remote Access / App | Web,CamHiPro |
| Degree of protection (IP) | 66 |
| Material | Aluminium |
| Maximum working temperature (ºC) | 55 |
| Minimum working temperature (ºC) | -20 |
| Relative humidity work (max.) | 85% |
| Relative humidity Work (min.) | 10 |
| Input voltage (V) | 12Vcc |
| Included power supply | Yes |
| Dimensions - High (mm) | 62 |
| Dimensions - Width (mm) | 70 |
| Dimensions - Deep (mm) | 180 |
| Weight (gr.) | 390 |
| Certifications | CE, RoHS |
