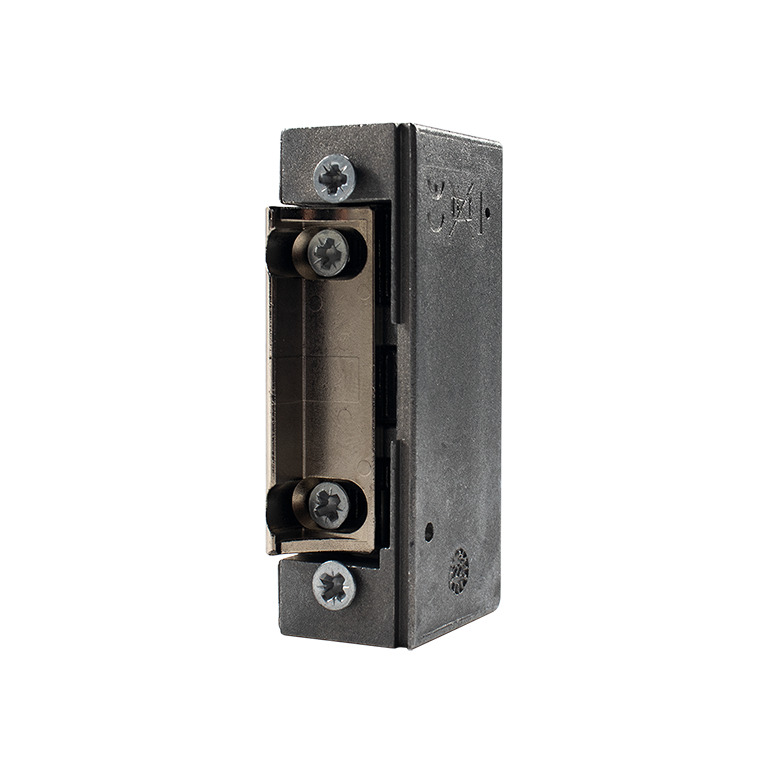

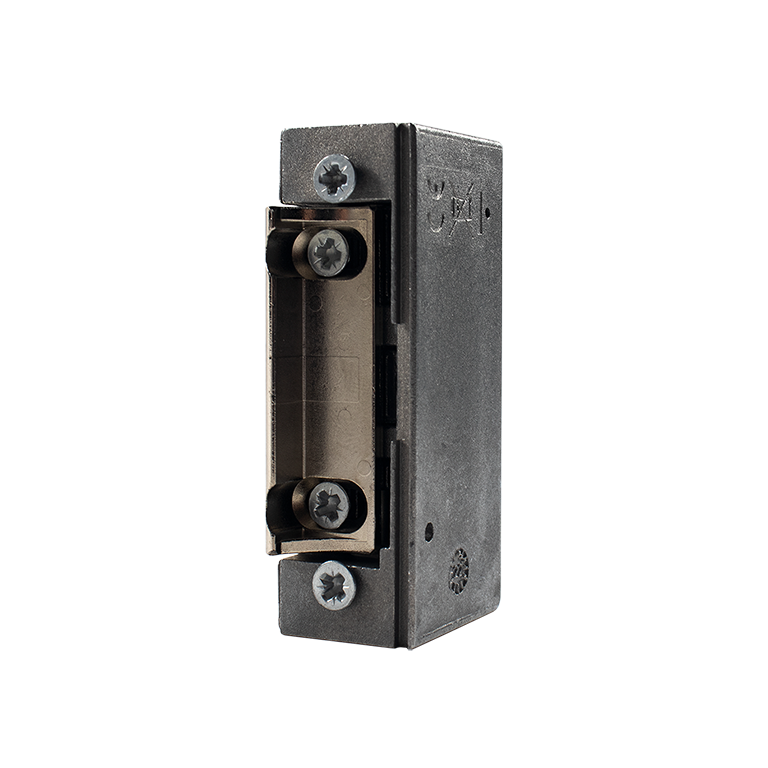

CV-14P/UNI/SF lock release
Reference : CV-14P/UNI/SF
Product code: 20600155
EAN code : 8429898017501
- Normal operation, which allows the door to be opened while the door release button is held down.
- Shield not included.
- Housing made of light alloy 67 X 20,5 X 28,5 mm.
- Adjustable latch 5mm.
- Latch depth 7mm.
- Dual operation from 12V-24V AC (250-510mA) or 12V-24V DC (300-600mA).
- Compatible with G+, G2+ and 4+n systems.
More information
- Dimensions:
.png)
Downloads
