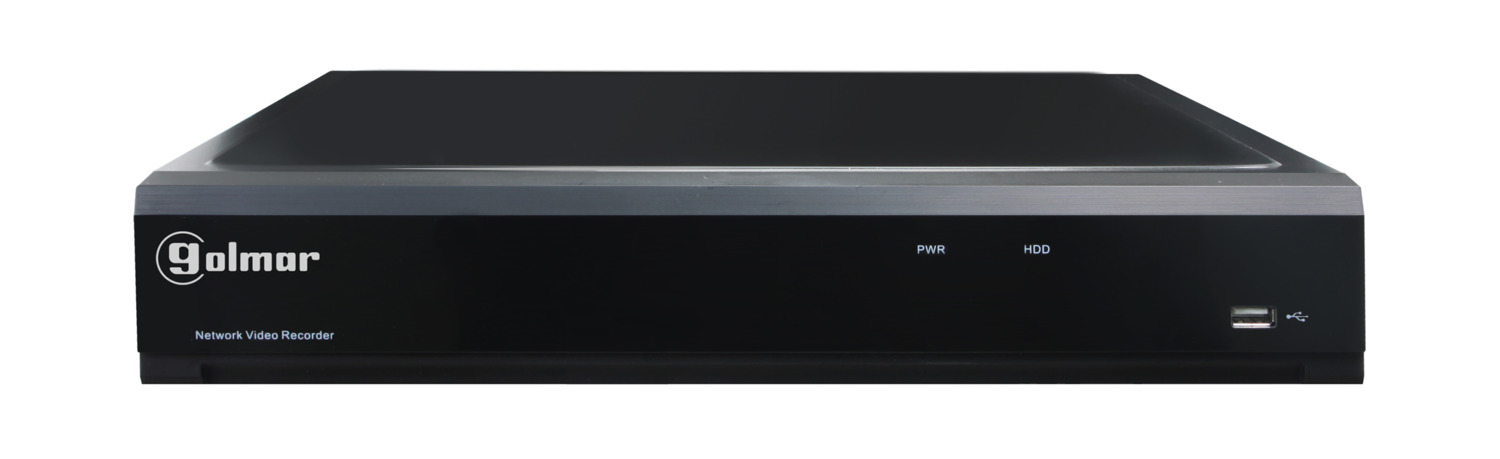

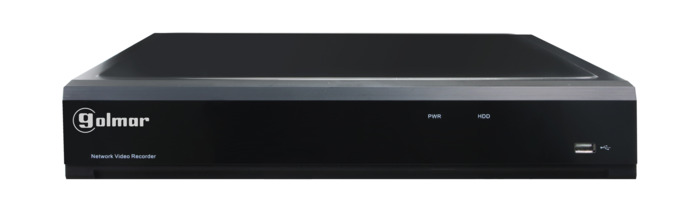

DVR-108P5 digital recorder for 8 cameras

Reference : DVR-108P5

Product code: 31600966

EAN code : 8429898024035

  • 5-in-1 digital recorder for 8 cameras
    Supports analogue inputs AHD, CVI, TVI, CVBS
    Supported analogue resolution CVBS, 1Mpx, 2Mpx, 5Mpx
    Analogue recording resolution 5Mpx Lite
    IP resolution 5MPx
    Video compression H.265
    Maximum 12 channels (8 + 4)
    HDMI / VGA / BNC output
    8E/1S alarm
    8E/1S RCA audio
    Telemetry via UTC coaxial and RS-485
    With intelligent video analysis
    Supports 2 hard disks
    1Tb disk included
    GolmarView App
    VMS Pro software
    Dimensions 378 x 50 x 340 mm (W x H x D)

More information
Type DVR
Video compression format H.265 / H.264
Audio compression format G.711a
Video format AHD / CVI / TVI / CVBS
Analogue video channels 8
IP video channels 4 (up to 12 by disabling analogue channels)
Hybrid configuration Yes
Video outputs HDMI, VGA, CVBS
PoE ports No
Compatible IP cameras Golmar, ONVIF
Refresh recordings 5MPx-Lite@15fps, 1080p@25fps, 720p@25fps
Maximum input bandwidth 16-48Mbps (additional 4Mbps per disconnected analogue camera)
Maximum output bandwidth 64Mbps
Recording method Scheduled, motion detection, alarms, PIR
Video analysis (VA) Analogue channels: Perimeter intrusion, line crossing, pedestrian, sound, tampering
IP channels: Perimeter intrusion, crossing line, pedestrian, vehicle, stationary object, face, face, counter, sound, tampering
Face recognition No
Synchronous playback Yes
PTZ control Yes
RS-485 Yes
I/O Audio 8E/1S RCA
Alarms 8E/1S
USB 2 x USB 2.0
Network interface RJ45
Hard disk included 1Tb
Disk Bays 2
Free disk bays 1
Remote access GolmarView App, VMS Pro PC software
Operating temp. 0°C~+40°C
Power Consumption 15W
Power consumption 12Vdc / 5A (included)
Dimensions 378 x 50 x 340 mm (W x H x D) mm
Weight 1,7Kg
