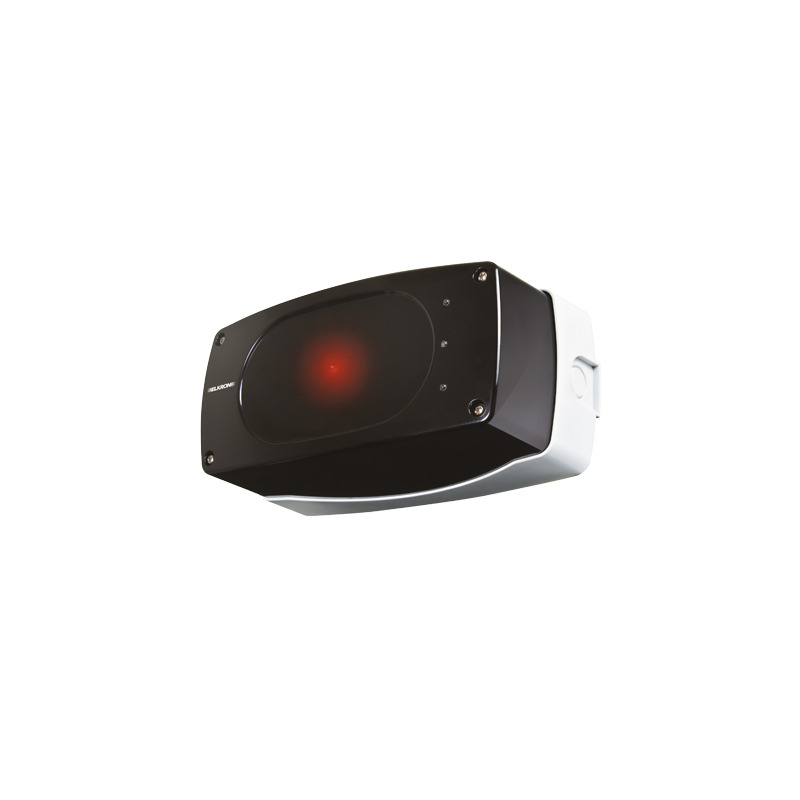

Analog Linear Barrier
Reference : FLR500
Product code: 80IL8300121
EAN code : 8034034447854
- Power supply voltage (through detection line): 20 V DC (-15%, +10%) modulated
- Average consumption (normal conditions): 250 ,A at 20 V DC
- Average consumption (alarm conditions): 2 mA at 20 V DC
- LED indicators: Alarm 2, Alarm 1, Normal operation, Fault, Maintenance
- Alarm 1 attenuation threshold: 20%, 25%, 30%, 35%
- Alarm 2 attenuation threshold: 35%
- Fault attenuation threshold: 95%
- Beam misalignment tolerance (Tx Rx unit and passive reflector): ±0.5°; ±5°
- Maximum alarm/functional relay output current: 2 mA
- Self-calibration
- Built-in short-circuit isolator
- Alarm relay output voltage: 20 V DC (-15%, +10%)
- Maximum alarm/functional relay output current: 2 mA
- Range: 5-20 m with reflector code RIFLE20; 20-50 m with reflector code RIFLE50; 50-100 m with reflector
- Operating temperature: (-10 ± 3)°C to (55 ± 2)°C
- Protection class: IP55
- Dimensions (W x H x D): 248 x 122 x 120 mm
- Weight: 900 g
- Certificate of conformity with EN54 Part 12 Final 17, No. 1293-CPR-0857
- Reflector not included
- On request
More information
| Specifications | |
|---|---|
| Installation | 2 hilos |
| Technology | Analógico |
| Serie | FAP500 |
| Type | Barrera Líneal |
| Reading / coverage distance (m) | 120 |
| 120 | |
| Signaling | 1 |
| Action indicator output | Yes |
| Relay contacts | No |
| Incorporates base | No |
| Type Function | Con central |
| Use | Interior |
| Manufactured according to Norma. | 120 |
| Dimensions - High (mm) | 122 |
| Dimensions - Width (mm) | 248 |
| Dimensions - Deep (mm) | 120 |
| Weight (kg.) | 900 |
