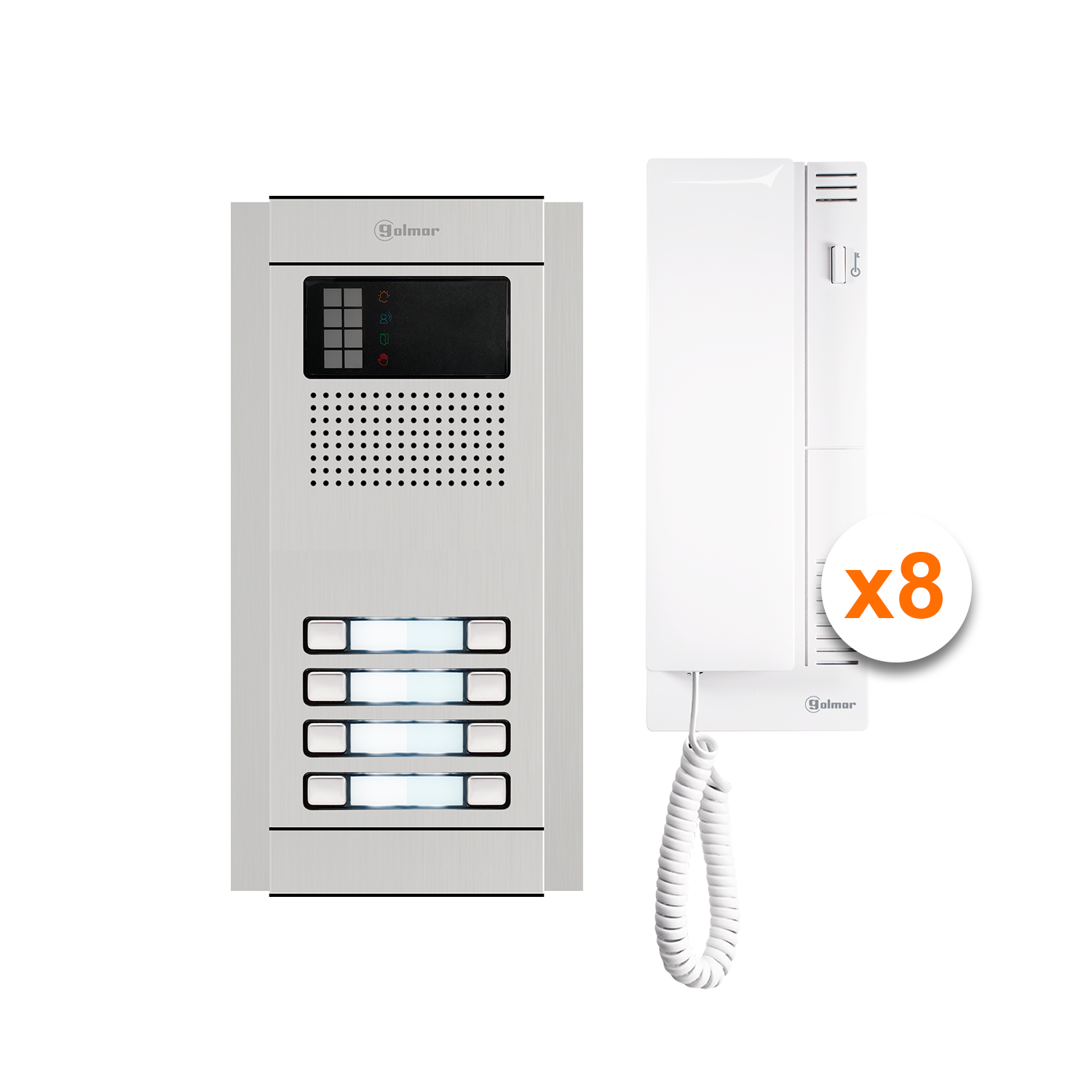

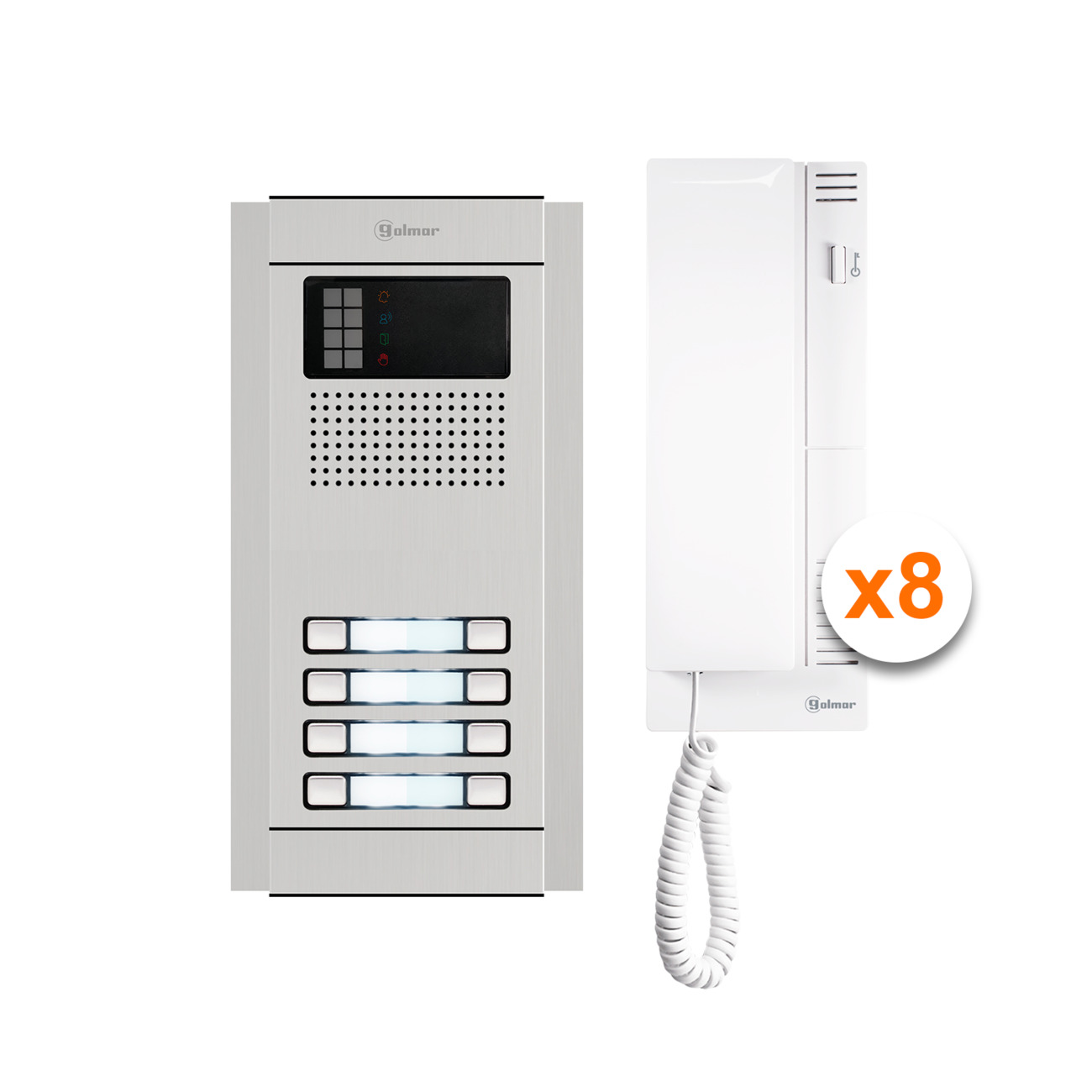

N4280/T-500 NEXA eight ways audio kit
Reference : N4280/T-500
Product code: 11854280
EAN code : 8429898031576
- 4+n analogue installation
- Composed of:
- 8 push buttons audio door panel
- NCEV-90C embedding box
- 8 Tekna T-500 telephones with electronic call
- TF-104 transformer
- Up to 3 telephones in the same apartment
Lock release not included. Recommended:
CV-14P/UNI/SF (20600155)
CV-24P/UNI/SF (20600253)
CV-16P/UNI/SF (20600160)
CV-26P/UNI/SF (20600158)
More information
- NEXA Door panel characteristics:
- Extruded aluminium door panel
- Electronic call with acoustic acknowledgement signal at the door panel
- Dimensions: 134(W) x 250,5(H) x 56(D) mm
- Features of the T-500 phone
- 4+n analogue installation
- Casing made of ABS plastic in white RAL9003 with a polished finish
- Detachable telephone cord with connectors
- Wall mounting with multiple fixing points
- Electronic call
- Dimensions: 85(An) x 221(Al) x 56(P) mm
