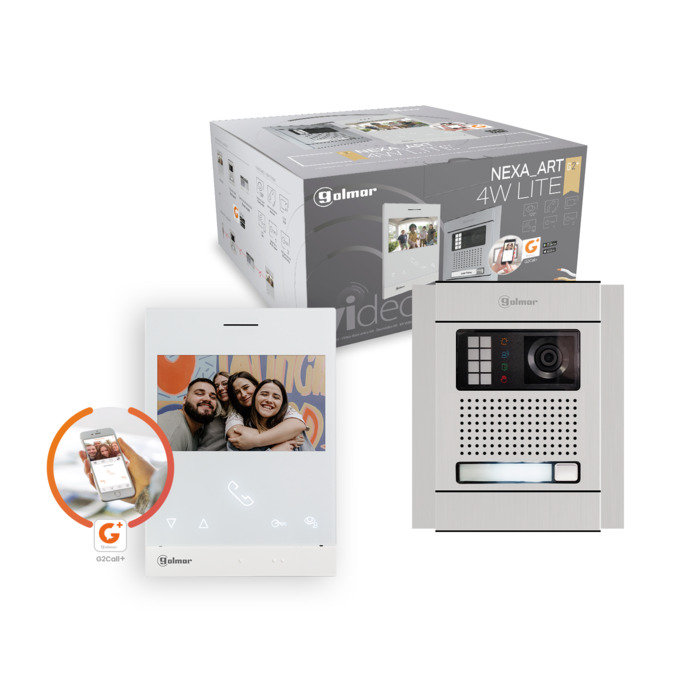

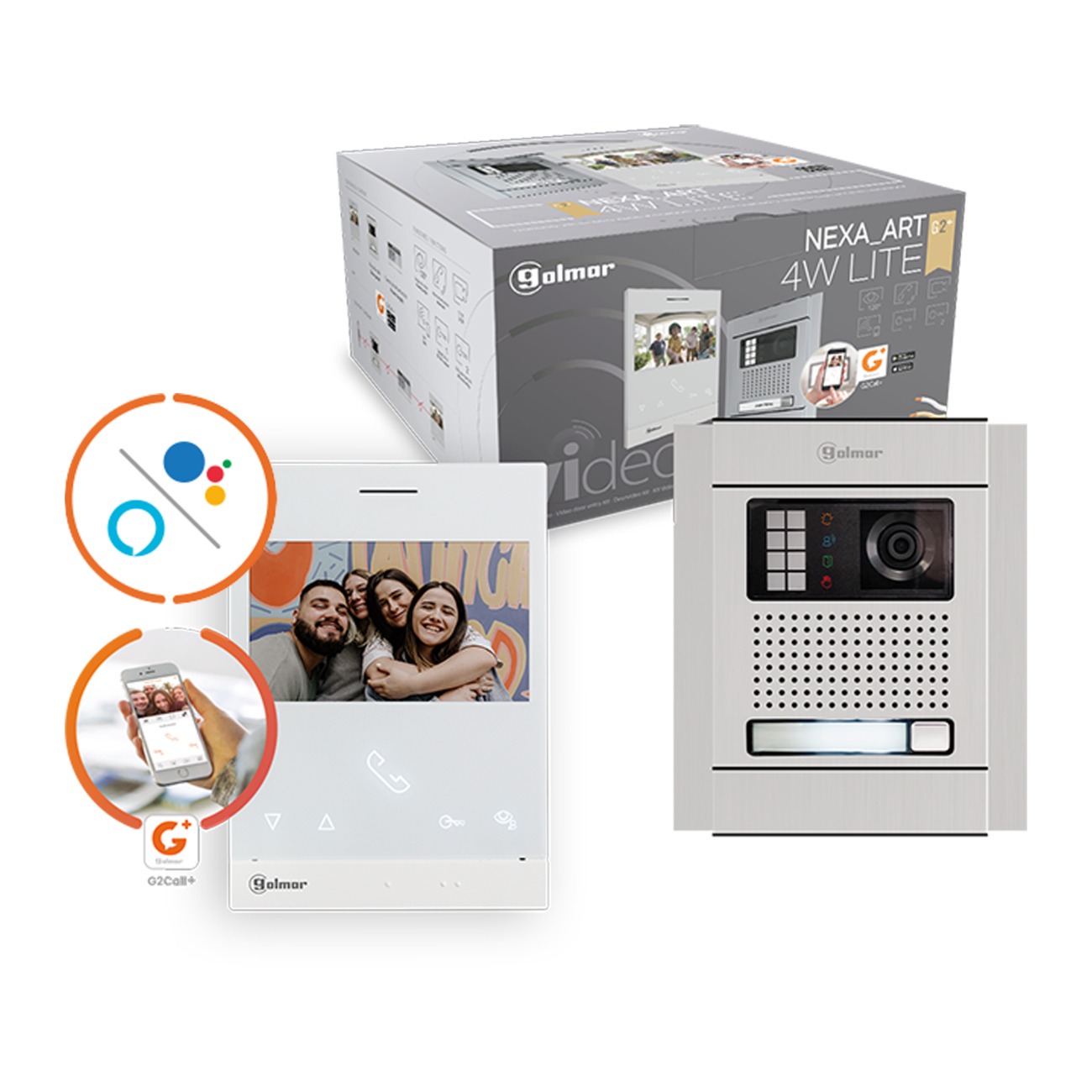

N5110/ART 4W LITE one way video kit
Reference : N5110/ART 4W LITE
Product code: 12205111
EAN code : 8429898015996
Nexa video door phone kit with 2-wire technology.
Composed of:
- N1110/AL one push button grille module.
- EL632/G2+ SE sound module with colour camera.
- N6001/AL assembling set.
- NCEV-90CS embedding box.
- ART 4 WLITE/G2+ 4.3" hands-free monitor.
- FA-G2+ Power supply.
Vídeo tutorial app G2Call+ pairing.ART 4W LITE/G2+ MONITOR
Hands-free monitor for surface installation with integrated Wi-Fi.
4.3" screen with capacitive navigation buttons.
High efficiency loudspeaker.
Audio communications, video and secret door opening.
Video-spy functions, auto-start, doctor mode and do not disturb.
Intercommunication with other units of the apartment selectively.
Selectable ring tones.
Connection to the entrance door push button, which saves the use of the doorbell.
Output to auxiliary call repeater.
Dimensions: 110(W) x 155(H) x 14(D) mm.
Up to 4 monitors in the same apartment without additional power supply.
NEXA ALUMINIUM DOOR PANEL
Anodized extruded aluminium door panel.
Wide-angle 120º orientable telecamera.
Automatic LED activation, controlled through video signal processing.
Message prompts and coloured icons acknowledge the system status (call in progress, in communication, lock is activated or the system is busy).
Privacy on audio, video and door open progresses.
Two relay outputs for lock and gate activation.
Use 12V d.c. lock release (does not include lock release).
Recommended lock release: CV-24P/UNI (20600252).
Dimensions:
- External: 128(W) x 153(H) mm.
- Embedded: 99(W) x 133(H) x 56(D) mm.
