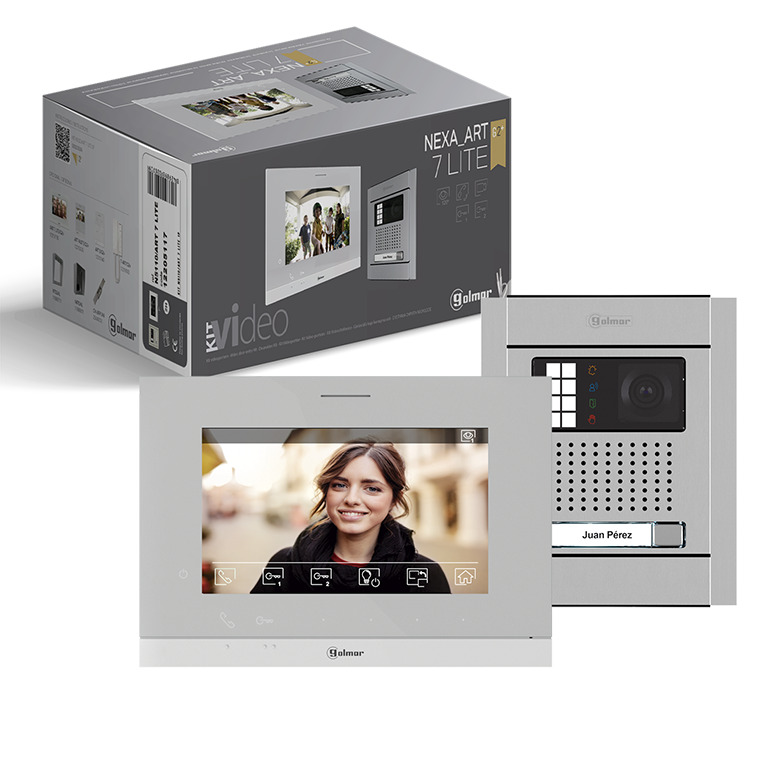

N5110/ART 7 LITE one line video kit
Reference: N5110/ART 7 LITE
Product code: 12205117
Nexa video door phone kit with 2-wire technology.
- N1110/AL one push button grille module.
- EL632/G2+ SE sound module with colour camera.
- N6001/AL assembling set.
- NCEV-90CS embedding box.
- ART 7 LITE/G2+ 7" hands-free monitor.
- FA-G2+ Power supply.
ART 7 LITE/G2+ MONITOR
Hands-free monitor for surface installation.
7" screen with capacitive navigation buttons.
High efficiency loudspeakers.
Audio communications, video and secret door opening.
Video-spy functions, auto-start, doctor mode and do not disturb.
Intercommunication with other units of the house selectively.
Personalization of ring tones.
Connection to the entrance door pushbutton, which saves the use of the doorbell.
Output to auxiliary call repeater.
Dimensions: 222(W) x 155(H) x 14(D) mm.
Up to 4 monitors in the same house without additional power.
Power supply FA-G2+.
Use 12V d.c. lock release (does not include lock release).
Recommended lock release: CV-24P/UNI (20600252).
NEXA ALUMINIUM DOOR PANEL
Anodized extruded aluminium door panel.
Wide-angle 120º orientable telecamera.
Intensity controlled light emitters through video signal processing.
Message broadcasting and coloured icons acknowledge the system status (call in progress, in communication, lock is activated or the system is busy).
Privacy on audio, video and door open progresses.
Two relay outputs for lock and gate activation.
- External: 128(W) x 153(H) mm.
- Embedded: 99(W) x 133(H) x 56(D) mm.
