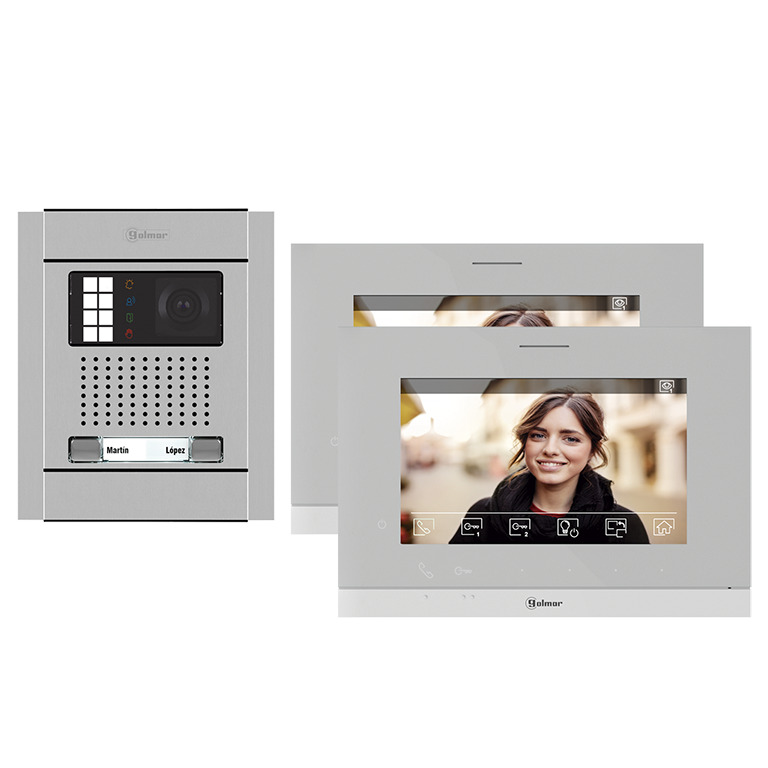

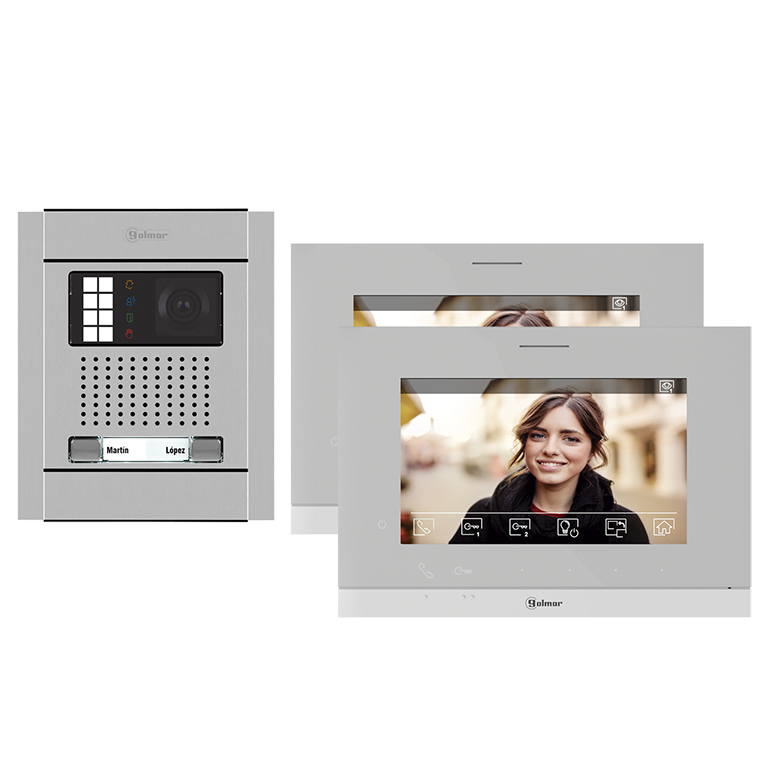

N5220/ART 7 LITE two ways video kit
Reference : N5220/ART 7 LITE
Product code: 12205227
EAN code : 8429898024158
Nexa video door phone kit with 2-wire technology.
Composed of:
- N1110/AL one push button grille module.
- EL632/G2+ SE sound module with colour camera.
- N6001/AL assembling set.
- NCEV-90CS embedding box.
- ART 4 LITE/G2+ 7" hands-free monitor.
- FA-G2+ Power supply.
Use 12V d.c. lock release (does not include lock release).
Recommended lock release: CV-24P/UNI (20600252).
ART 7 LITE/G2+ MONITOR
Hands-free monitor for surface installation.
7" screen with capacitive navigation buttons.
High efficiency loudspeakers.
Audio communications, video and secret door opening.
Video-spy functions, auto-start, doctor mode and do not disturb.
Intercommunication with other units of the house selectively.
Personalization of ring tones.
Connection to the entrance door pushbutton, which saves the use of the doorbell.
Output to auxiliary call repeater.
Dimensions: 222(W) x 155(H) x 14(D) mm.
Up to 4 monitors in the same house without additional power.
NEXA ALUMINIUM DOOR PANEL
Anodized extruded aluminium door panel.
Wide-angle 105º orientable video camera.
Automatic LED activation, controlled through video signal processing.
Message prompts and coloured icons acknowledge the system status (call in progress, in communication, lock is activated or the system is busy).
Privacy on audio, video and door open progresses.
Two relay outputs for lock and gate activation.
Dimensions:
- External: 128(W) x 153(H) mm.
- Embedded: 99(W) x 133(H) x 56(D) mm.
