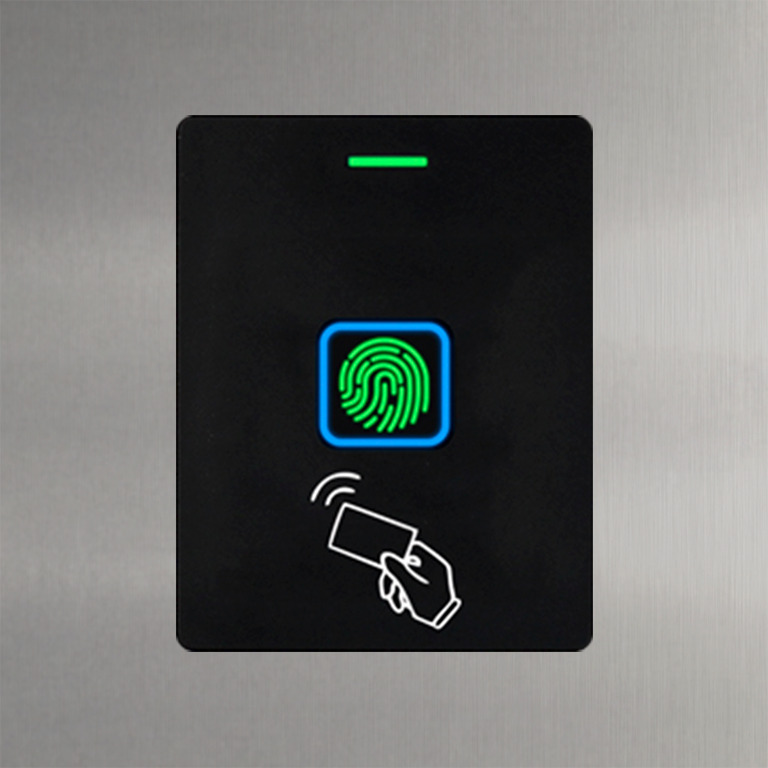

BIO-N reader for Nexa stainless steel panel

Reference : NX3000/BIO-N

Product code: 20700016

EAN code : 8429898013855

BIO-N reader assembled on special NX3000 adapter module.

  • 125KHz waterproof proximity and fingerprint reader
  • For  stand-alone operation
  • Capacity for up to 100 users per fingerprint and 900 per card
  • Capacitive fingerprint sensor
  • Admits PROKEY ID and TAGKEY ID cards and fobs
  • Three contact output relay (C, NO and NC)
  • IP66 degree of protection
  • In stand-alone mode requires 12Vdc power supply
Dimensions: 100(W) x 100(H) mm

More information
Specifications
Technology wiegand
Type Function Standalone,Slave
Reading / Detection Type Proximity,Fingerprint
RFID Frequency (KHz) 125
RFID Reading /coverage distance (cm) 6
Use Outdoor,Indoor
Max. Users 990
Mounting Embedded
Incorporates base Yes
State LEDs Yes
Degree of protection (IP) 66
Maximum working temperature (ºC) 60
Minimum working temperature (ºC) -25
Dimensions - High (mm) 62
Dimensions - Width (mm) 48
Dimensions - Deep (mm) 25
Weight (gr.) 342
