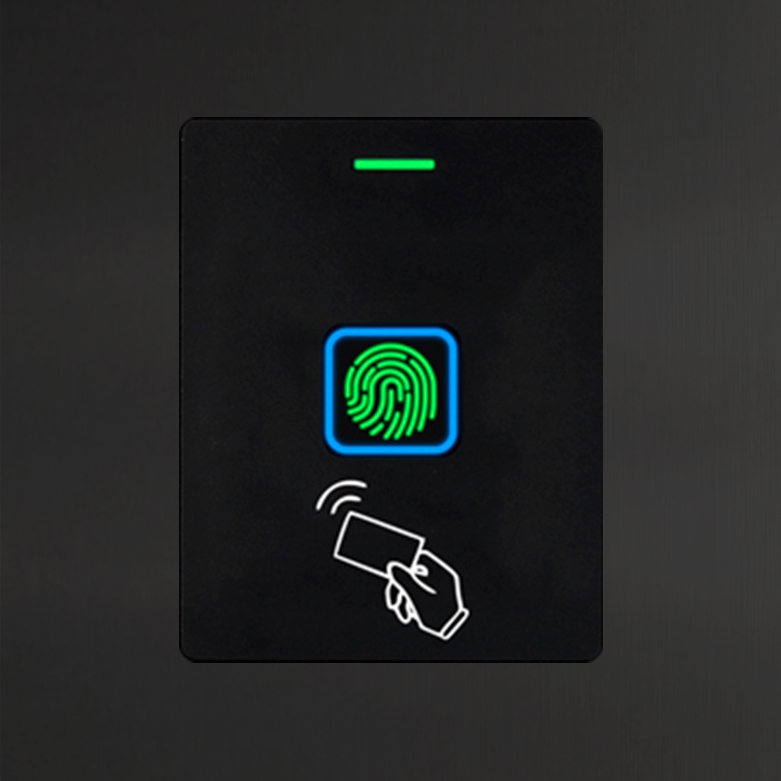

BIO-N reader assembled on special NX3000 adapter module with Black finish.
- 125KHz waterproof proximity and fingerprint reader with Wiegand 26 technology
- For IP OPENER Wiegand controllers or stand-alone operation
Reference : NX3000/BIO-N BLACK
Product code: 20700016B
EAN code : 8429898028309
BIO-N reader assembled on special NX3000 adapter module with Black finish.
- 125KHz waterproof proximity and fingerprint reader
- For stand-alone operation
- Capacity for up to 100 users per fingerprint and 900 per card
- Capacitive fingerprint sensor
- Admits PROKEY ID and TAGKEY ID cards and fobs
- Three contact output relay (C, NO and NC)
- IP66 degree of protection
- In stand-alone mode requires 12Vdc power supply
- Product available on request
Dimensions: 100(W) x 100(H) mm
Reference : NX3000/BIO-N BLACK
Product code: 20700016B
EAN code : 8429898028309
BIO-N reader assembled on special NX3000 adapter module with Black finish.
- 125KHz waterproof proximity and fingerprint reader
- For stand-alone operation
- Capacity for up to 100 users per fingerprint and 900 per card
- Capacitive fingerprint sensor
- Admits PROKEY ID and TAGKEY ID cards and fobs
- Three contact output relay (C, NO and NC)
- IP66 degree of protection
- In stand-alone mode requires 12Vdc power supply
- Product available on request
Dimensions: 100(W) x 100(H) mm
More information
| Specifications | |
|---|---|
| Technology | wiegand |
| Type Function | Standalone,Slave |
| Reading / Detection Type | Proximity,Fingerprint |
| RFID Frequency (KHz) | 125 |
| RFID Reading /coverage distance (cm) | 6 |
| Use | Outdoor,Indoor |
| Max. Users | 990 |
| Mounting | Embedded |
| Incorporates base | Yes |
| State LEDs | Yes |
| Degree of protection (IP) | 66 |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -25 |
| Dimensions - High (mm) | 62 |
| Dimensions - Width (mm) | 48 |
| Dimensions - Deep (mm) | 25 |
| Weight (gr.) | 342 |
