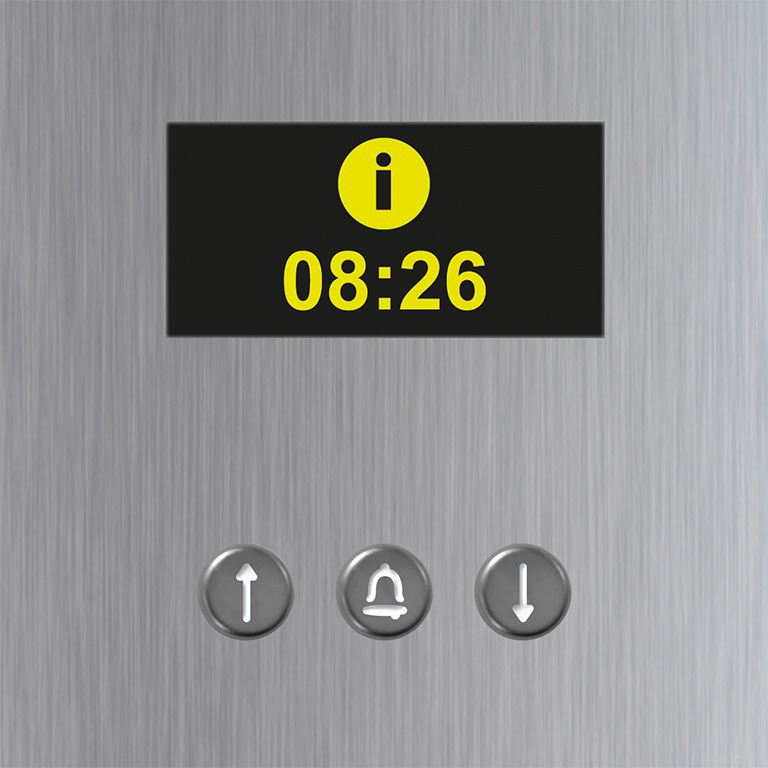

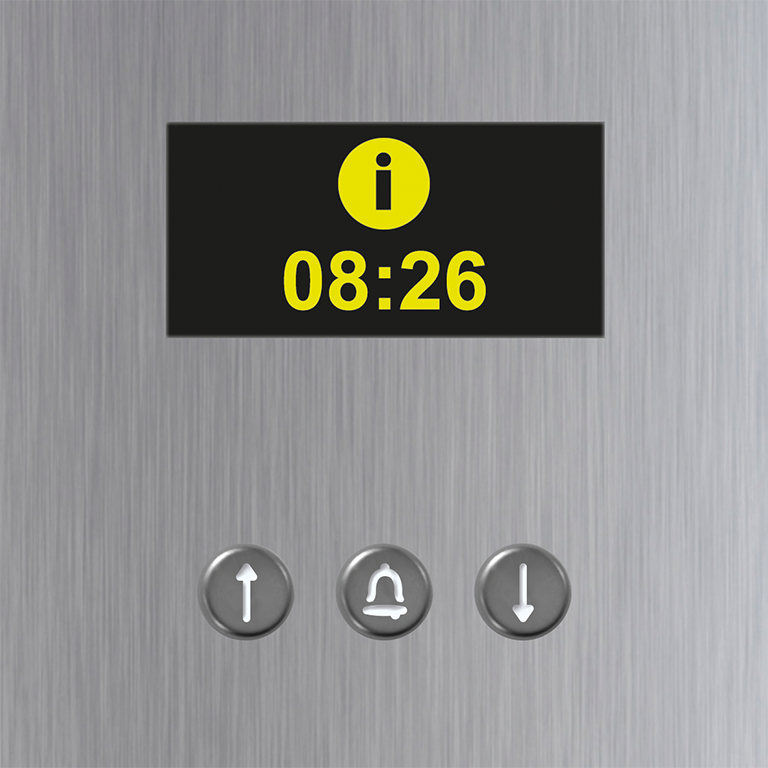

NX3403 graphic display module

Reference : NX3403

Product code: 11883405C

EAN code : 8429898023281

  • For Nexa Inox door panel.
  • Front of 2mm. thick AISI 316 stainless steel.
  • Requires to be combined with EL632 or EL642 sound modules (except GB2 models).
  • 128 x 64 dots OLED yellow display module with polycarbonate protection.
  • Navigation and call buttons.
  • PVD treatment for other colours (brass, bronze or black) and RAL® colour painting are available under request.

External dimensions: 100(W) x 100(H) mm.

More information
  • USB port for system programming through "Memedit" software (available for Windows® and Android® based devices).
  • Transmission of the repertory content to other door panels and concierge units through the installation wires.
  • Selectable language.
  • Programmable lock release activation time between 0 and 99 seconds.
  • Cyclic messages with instructions for use, time, user text and system status are shown in the display.
  • Automatic programming and code diagnostic of the apartment units.
  • Possibility to assign one access code for each repertory register. Each access code can activate a different combination of relay outputs (up to three), and can be operated during one of the eight available time frames.
