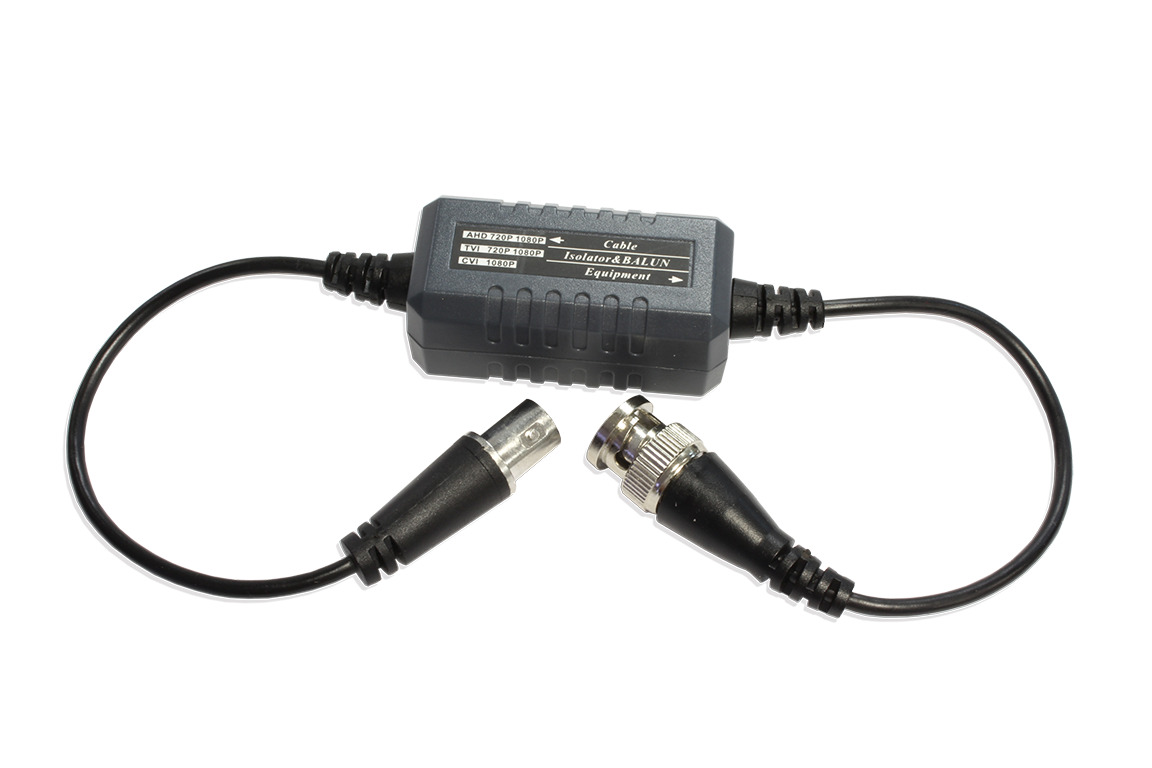

PROT-600 ground isolator for analogue cameras
Reference : PROT-600
Product code: 31600600
EAN code : 8429898020457
- Ground isolator for analog camera
- Reduces interference due to potential difference
- Optimized for HD video transmission
- BNC connectors (male/female) included
- Transient suppression filter included
- No power supply required
More information
| Loss per item | 0.5dB |
| Frequency response | 20Hz - 60MHz, +0/-4dB |
| Input resistance | 75 Ohm |
| Output Resistor | 75 Ohm |
| Insulation voltage | 600VDC (Min) |
| Insulation resistance | 100M Ohm |
| Suppressed voltage suppressors | 12Vrms |
| Dimensions (mm) | 52 x 26 x 22 with 18cm cable |
| Material | ABS |
