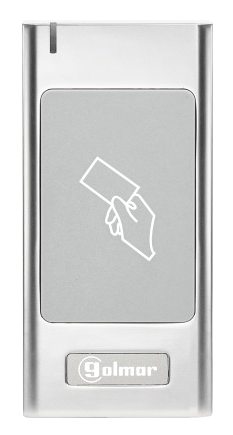

PROXEM+ proximity reader
Reference : PROXEM+
Product code: 20720115
EAN code : 8429898034911
- Dual proximity reader and Wiegand 26 technology
- For IP OPENER Wiegand, WCONTROL controllers or stand-alone operation
- Made of Zamak
- Capacity for up to 987 users
- Dual frequency band (125KHz and 13.56MHz)
- Supports programming by card collection and information transfer between readers
- Wall installation with IP66 protection degree
- 12/18Vdc power supply (not included)
Dimensions: 48(W) x 103(H) x 19(D) mm
More information
| Specifications | |
|---|---|
| Technology | wiegand |
| Type Function | Esclavo |
| Reading / Detection Type | Proximidad |
| RFID Frequency (KHz) | 125 |
| RFID Frequency (MHz) | 13.56 |
| RFID Reading /coverage distance (cm) | 7 |
| Use | Exterior,Interior |
| Mounting | Supericie |
| Signaling | Led |
| Relay contacts | Yes |
| Incorporates base | Yes |
| State LEDs | Yes |
| Input voltage | 12Vcc,18Vcc |
| Powered by controller | Yes |
| Material | 1 |
| Degree of protection (IP) | 66 |
| Dimensions - High (mm) | 103 |
| Dimensions - Width (mm) | 48 |
| Dimensions - Deep (mm) | 19 |
