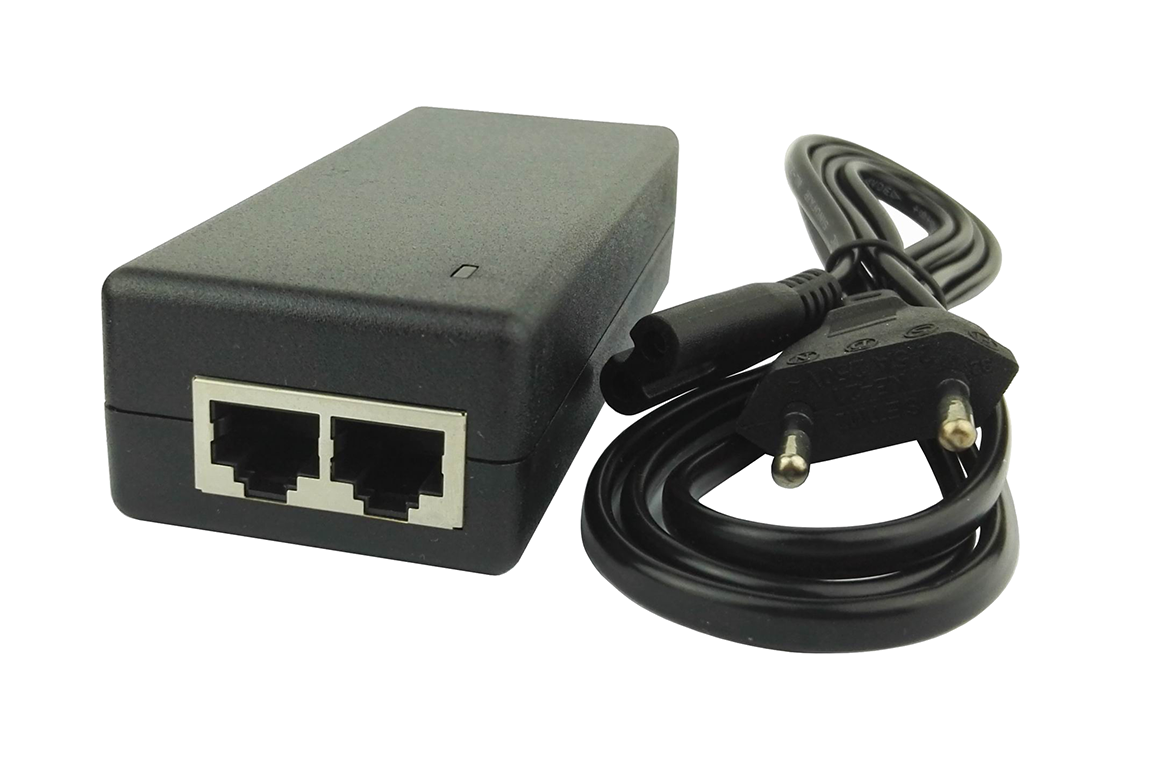

PSU-8023AF 48Vdc PoE injector

Reference : PSU-8023AF

Product code: 31688881

EAN code : 8429898019024

48Vdc PoE Injector
Power input 100-240Vac / 50-60Hz
42Vdc output 2% 0.5A
Maximum power 30W
Dimensions 114(D) x 43(W) x 32(H) mm

More information
Input Voltage/Frequency AC100-240V; 50/60Hz
Output Voltage/Current 48VDC±2%, 0.5A, Max. 30W
Power/Data Assignment Power: pin 1,2“+”, pin 3,6 ”-”; Data: pin 1,2,3,6
Data Exchange 10M/100Mbps
Ambient Environment Operating temperature: 0~40℃
Storing temperature: -40~70℃
Operating Humidity: 10%~90% RH, No condensing
Storing Humidity: 5%~90% RH, No condensing
Data Speed Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
 Special Feature Plug and Play, without configuration management
Under-voltage, over-voltage, over current short circuit protection
System Reliability: MTBF>100k hours
Comply to EN55022, CLASS BCE&RE
Dimension/Weight Product Size: 114mm×50mm×32mm; N.W.: 0.18KG, G.W.: 0.20KG
