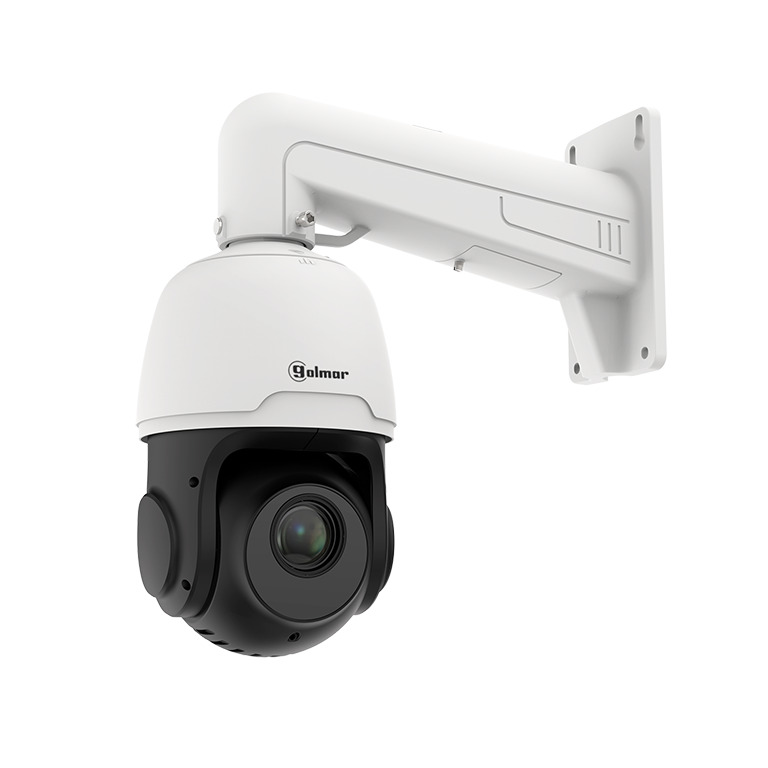

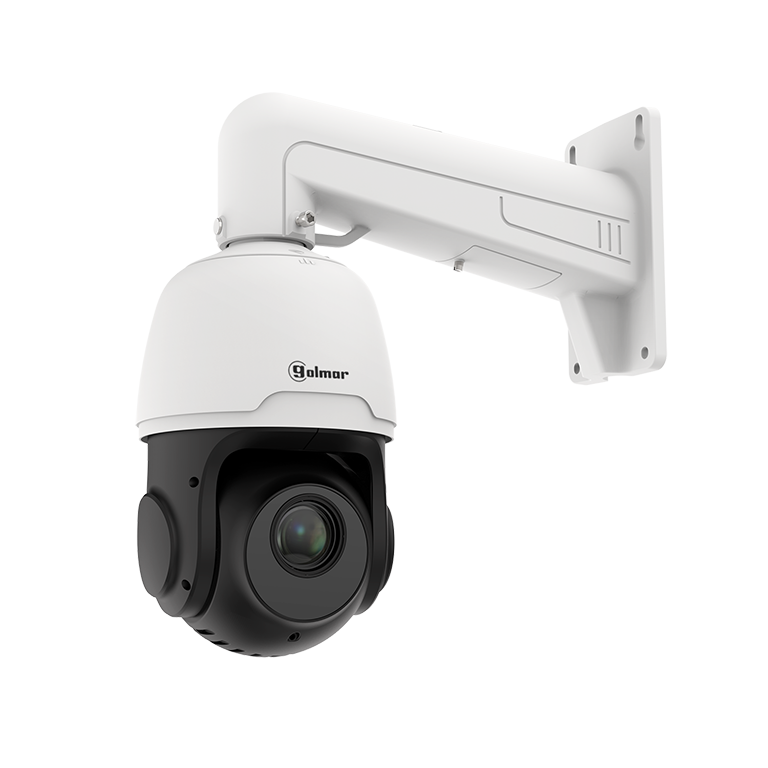

Dome IP PTZ PTZ-25X2IPT D/N VA 2Mpx 25X

Reference : PTZ-25X2IPT

Product code: 31600335

EAN code : 8429898026060

  • PTZ dome with IP technology
    Full HD 1080p resolution
    25x optical zoom
    Focal length 5-125mm
    IR distance up to 100m
    ONVIF compatibility (Profile S, G, T)
    120dB True WDR
    Video Analytics Functions
    Intelligent auto tracking function
    Dynamic privacy zones
    Dimensions: 160 (Ø) x 270 (H) mm
    Weight: 2.5Kg

More information
Specifications
Type PTZ
Technology IP
Image sensor 1/2,8" progressive CMOS
Colour White
Mounting Wall
Lense Motorized
Focal length 5-125 mm
Max. Aperture ratio F1.5
Horizontal field of view (º) 56.9° - 2.9°
Vertical field of view (º) 32.2° - 1.6°
Minimum illumination (lux) 0.002 Lux @ (F1.6, AGC ON)
Night vision mode Day/Night
IR distance max. (m) 100
Pan range 360º
Pan speed 0.6° - 80°/s; Velocidad preset 120°/s
Tilt range -10º a 90º (con auto flip)
Tilt speed 0.6° - 80°/s; Velocidad preset 100°/s
Presets 255
Scan A-B 1
Pattern 4
Autotracking Yes
WDR Yes
Additional functions AWB,BLC,AES,DNR,3D-DNR
Bitrate 8 kbps hasta 8192 kbps
Main Stream (FPS) 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream (FPS) 25 fps (640 × 480, 320x240)
Video compression H.264,H.265,H.265+
Video Analysis LCD,PID,PD,VD,FD,SOD,CC,CD,QD,HM
Internal storage No
Network interface RJ45
I / O alarms 1/1
I / O audio 1/1
Integrated WiFi No
Remote Access / App Web,App GolmarView,VMS Pro
Material Aluminium
Maximum working temperature (ºC) 60
Minimum working temperature (ºC) -30
Relative humidity work (max.) 90%
Input voltage (V) 12Vcc,PoE
Included power supply No
Max. consumption (W) 22
Dimensions - High (mm) 270
Dimensions - Diameter (mm) 160
Weight (gr.) 2500
Certifications CE,RoHS
