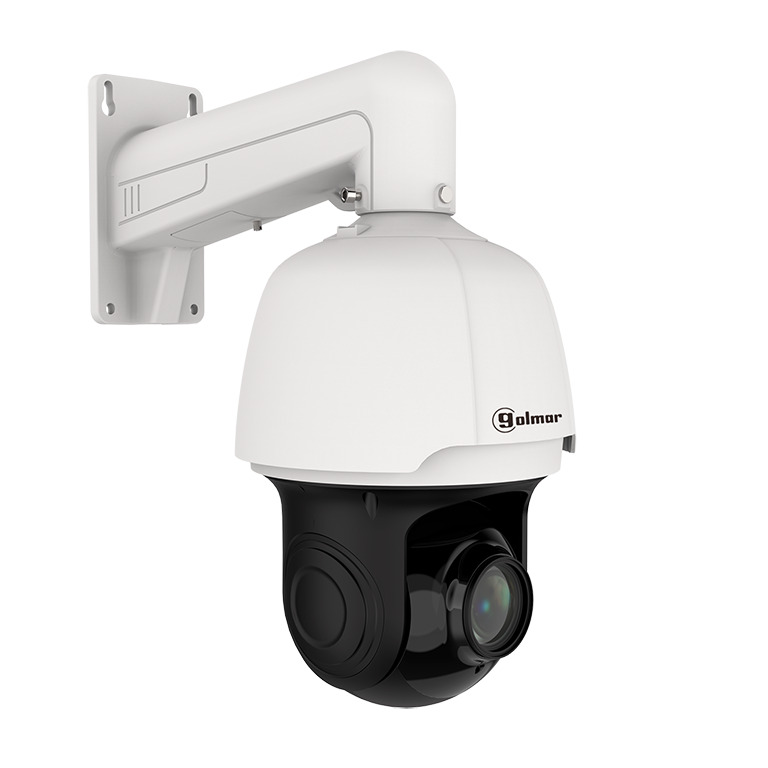

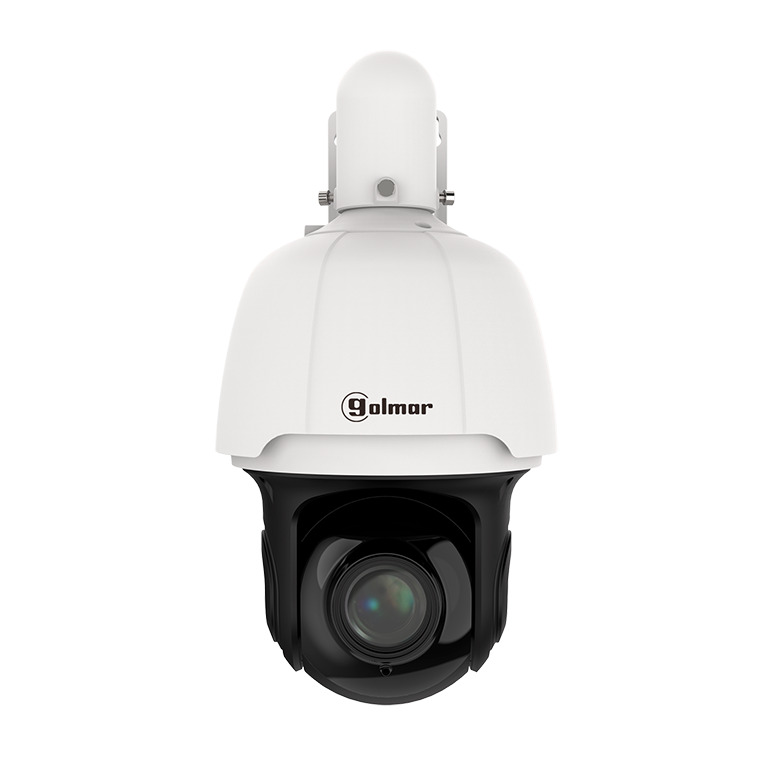

PTZ-33X5IPT 5Mpx camera with motorized lens and autotracking
Reference : PTZ-33X5IPT
Product code: 31612358
EAN code : 8429898025858
- PTZ dome with IP technology
5Mpx resolution
33x lense zoom lens
Focal length 4.3-142mm
IR distance up to 150m
ONVIF compatibility (Profile S, G, T)
120dB real WDR
Video Analysis Functions
Intelligent auto tracking function
Dynamic privacy zones
Dimensions: 206 (Ø) x 351 (H) mm
Weight: 3.7Kg
More information
| Specifications | |
|---|---|
| Type | PTZ |
| Technology | IP |
| Image sensor | 1/2,7" progressive CMOS |
| Max. Resolution | 5Mpx |
| Images by sec. (FPS) | 25 |
| Colour | White |
| Mounting | Wall |
| Lense | Motorized |
| Focal length | 4.3 - 142 |
| Zoom (x) | 33 |
| Max. Aperture ratio | F1.6 |
| Horizontal field of view (º) | 55° - 2.3° |
| Vertical field of view (º) | 41.6° - 1.7° |
| Minimum illumination (lux) | 0.003 Lux @ (F1.6, AGC ON) |
| Night vision mode | Day/Night |
| IR distance max. (m) | 150 |
| Pan range | 360º |
| Pan speed | 0.6° - 200° (°/s) |
| Tilt range | -10° - 90° |
| Tilt speed | 0.6° - 90° (°/s) |
| Presets | 255 |
| Pattern | 4 |
| Autotracking | Yes |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR |
| Bitrate | 8 kbps - 8192 kbps |
| Main Stream (FPS) | 25fps @ 5Mpx (2592 x 1944) |
| Sub Stream (FPS) | 25 fps @ 720P(1280x720), VGA(640x480), QVGA(320x240) |
| Video compression | H.264,H.265 |
| Face recognition | Yes |
| Video Analysis | LCD,PID,PD,VD,FD,SOD,CC,CD |
| Internal storage | Yes (max 256Gb) |
| Network interface | RJ45 |
| I / O alarms | 1/1 |
| I / O audio | 1/1 |
| Built-in microphone | No |
| Built-in speaker | No |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Degree of protection (IP) | 66 |
| Material | Aluminium |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 90% |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Max. consumption (W) | 25.6 |
| Dimensions - Diameter (mm) | 206 |
| Dimensions - Deep (mm) | 351 |
| Weight (gr.) | 3700 |
| Certifications | CE, RoHS |
