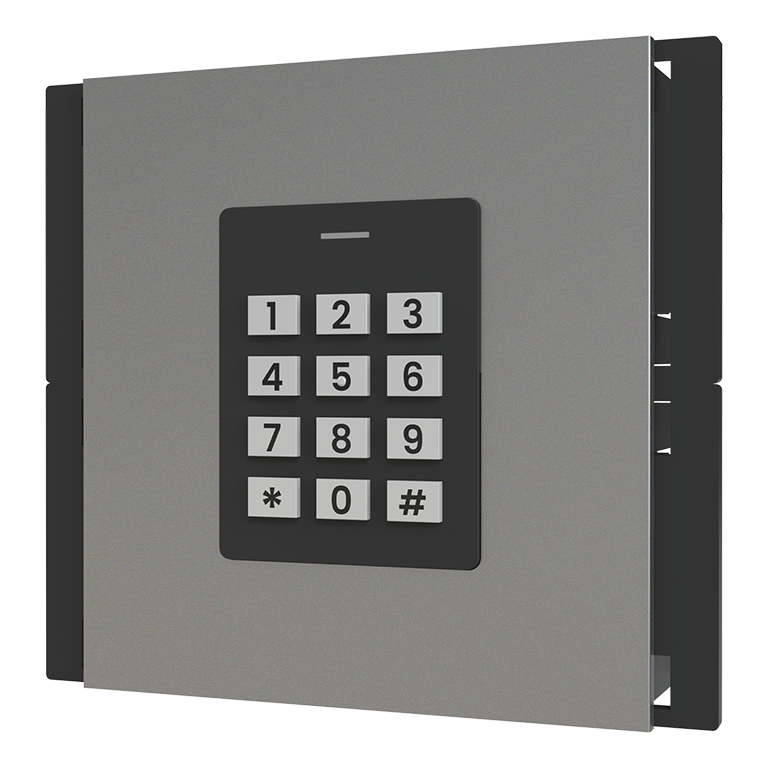

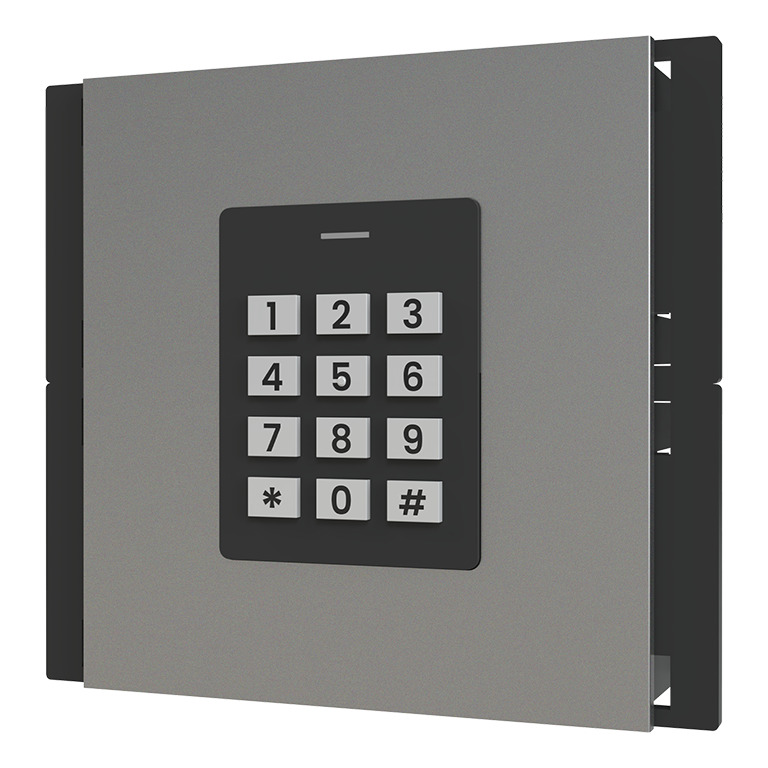

CODEPROX-N reader for Supra panels
Reference : S3000/CODEPROX-N/AL
Product code: 12583305
EAN code : 8429898032887
- Stand-alone access control module with numeric keypad and 125KHz reader
- Wiegand 26 output for connection to access control panels
- Light and acoustic indicator of operation
- Up to 990 users between codes and cards
- 4, 5 or 6-digit codes
- Optional access control blocking after entering 10 consecutive wrong codes
- Compatible with PROKEY ID cards and key fobs TAGKEY ID
- 1 relay output (NO, C, NC) for door, with input for remote activation
- Programmable activation time (1 to 99 seconds) and output mode (pulse or steady)
- Tamper alarm
- 12 or 18V d.c. power supply
- 1 height
More information
| Specifications | |
|---|---|
| Technology | wiegand |
| Type Function | Autónomo,Esclavo |
| Reading / Detection Type | PIN,Proximidad |
| RFID Frequency (KHz) | 125 |
| RFID Reading /coverage distance (cm) | 7 |
| Use | Exterior,Interior |
| Max. Users | 990 |
| Signaling | Led |
| Display | No |
| Expandable | No |
| Antenna | No |
| Relay contacts | Yes |
| Incorporates base | No |
| Incorporates cover/front panel | Yes |
| State LEDs | No |
| Input voltage | 12Vcc,18Vcc |
| Powered by controller | Yes |
| Material | 0 |
