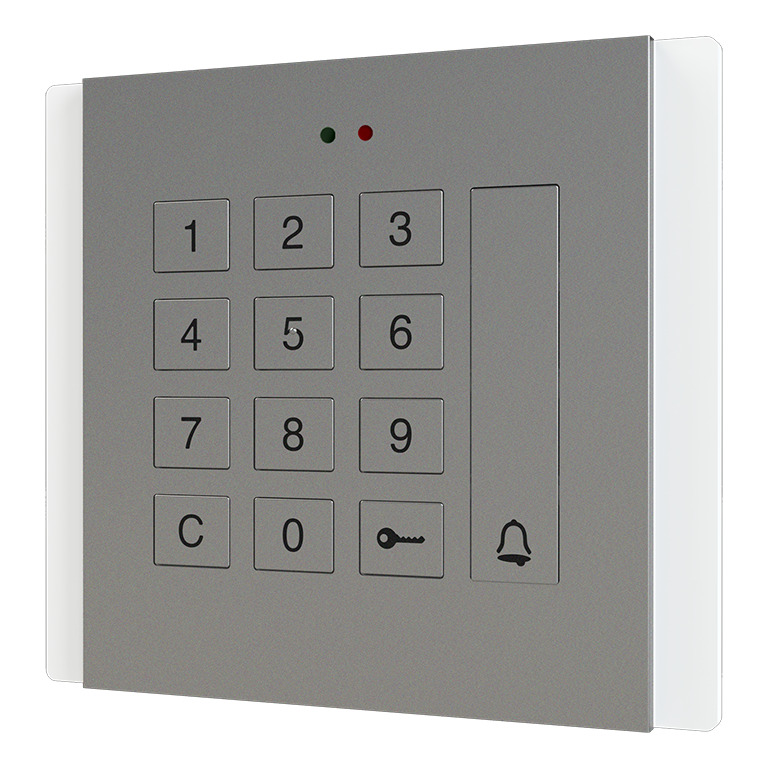

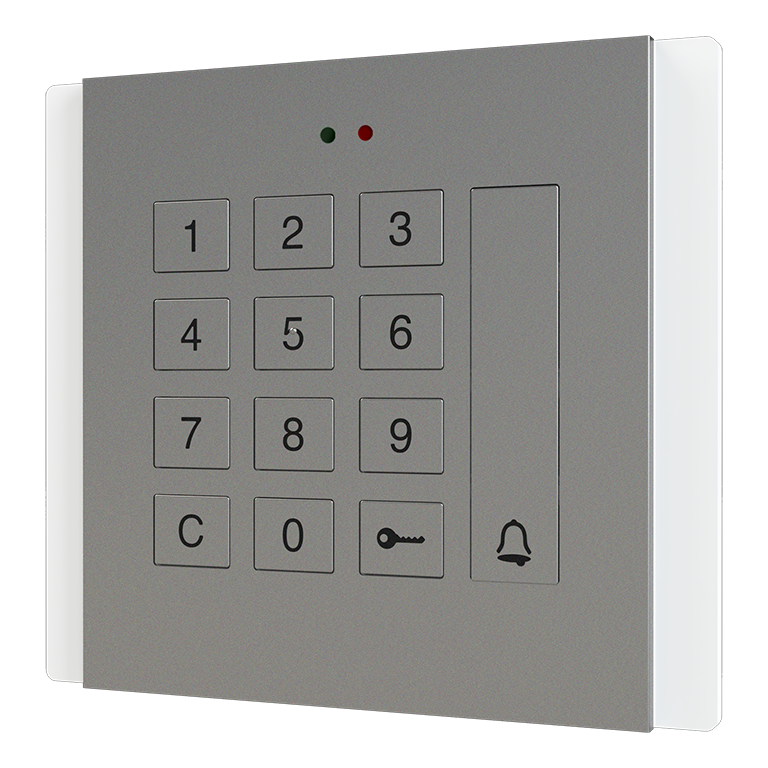

S3302/AL SUPRA Keypad Module
Reference : S3302/AL
Product code: 12583302
EAN code : 8429898024219
- Backlit numeric keypad for SUPRA Coded Panel
- One height module
- Painted AISI 316 stainless steel front panel
- Operating indicator lights
- Dual operation option (Keypad + Access Control)
Check compatibility
Dimensions: 126 (W) x 111 (H) mm
More information
- Programming via keyboard or via Wi-Fi via internal web server.
- Acoustic confirmation of deactivatable pulsation.
- Up to 1000 codes of 4, 5 or 6 digits. Each code can be programmed to activate a combination of outputs.
- Possibility of changing user codes and special codes without the need to access the programming mode.
- Programmable access control lock for a period of time after entering consecutive erroneous codes.
- 2 NA, C, NC relay outputs.
- Programmable activation time (1-99 s) and output mode.
- Anti-tamper alarm and panic exit.
