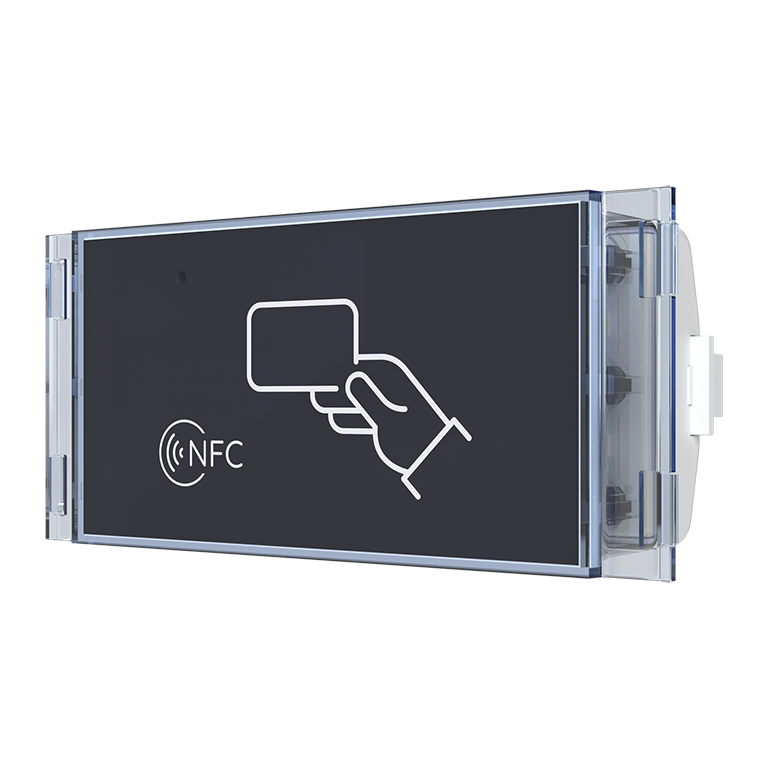

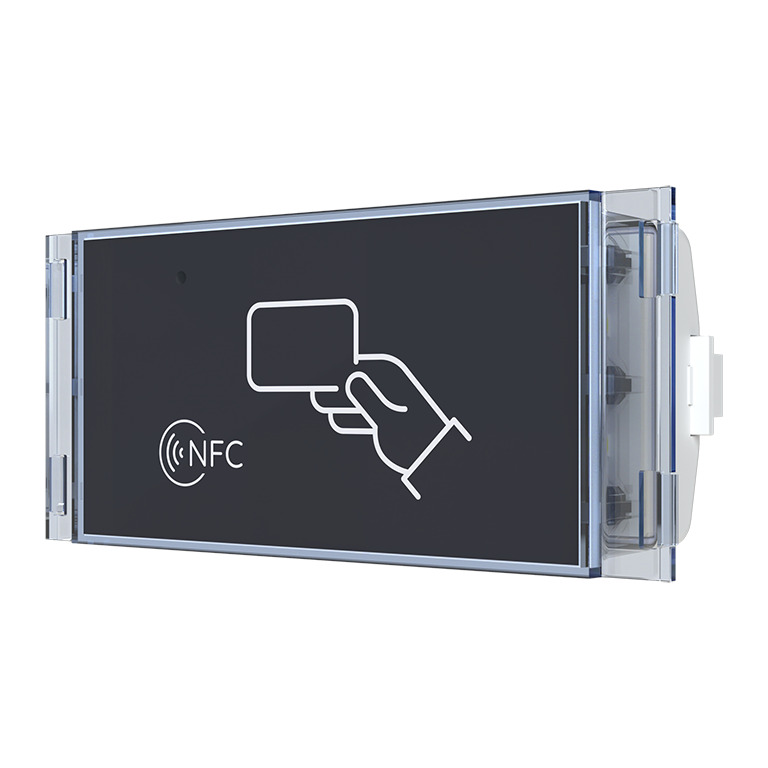

S3501/NFC reader module
Reference : S3501/NFC
Product code: 12583501
EAN code : 8429898024226
- Stand-alone access control module by means of a NFC 13.56MHz reader
- Module to be used on SUPRA panels
- Programming via Wi-Fi through internal web server (requires NFC/IN installer card included with the product)
- Up to 2,000 user cards, stored in up to 30 user groups
- 30 user groups
- Smartphones with Android operating system and NFC technology can work with this access control using the OpenGo app available on the Google Play Store
- Compatible with NFC/US cards and TAGNFC/US keyfobs
- 2 relay outputs (NO, C, NC) for doors, with independent inputs for remote activation
- Programmable activation time (3 to 99 seconds)
- Panic output
- 12VAC or 18 to 24VDC power supply. It is possible to use the power supply of the outdoor panel.
- ½ height
More information
| Specifications | |
|---|---|
| Type Function | Autónomo |
| Reading / Detection Type | Proximidad |
| RFID Frequency (MHz) | 13.56 |
| RFID Reading /coverage distance (cm) | 7 |
| Use | Exterior,Interior |
| Max. Users | 2000 |
| Signaling | Led |
| Display | No |
| Expandable | No |
| Antenna | No |
| Relay contacts | No |
| Incorporates base | No |
| Incorporates cover/front panel | No |
| State LEDs | Yes |
| Input voltage | 12Vca,18Vcc |
| Powered by controller | Yes |
| Material | 1 |
