KIT SOUL S5110 ACCESS/ ART 7H

Reference: S5110 ACCESS/ART 7H

Product code: 12205170

EAN code:

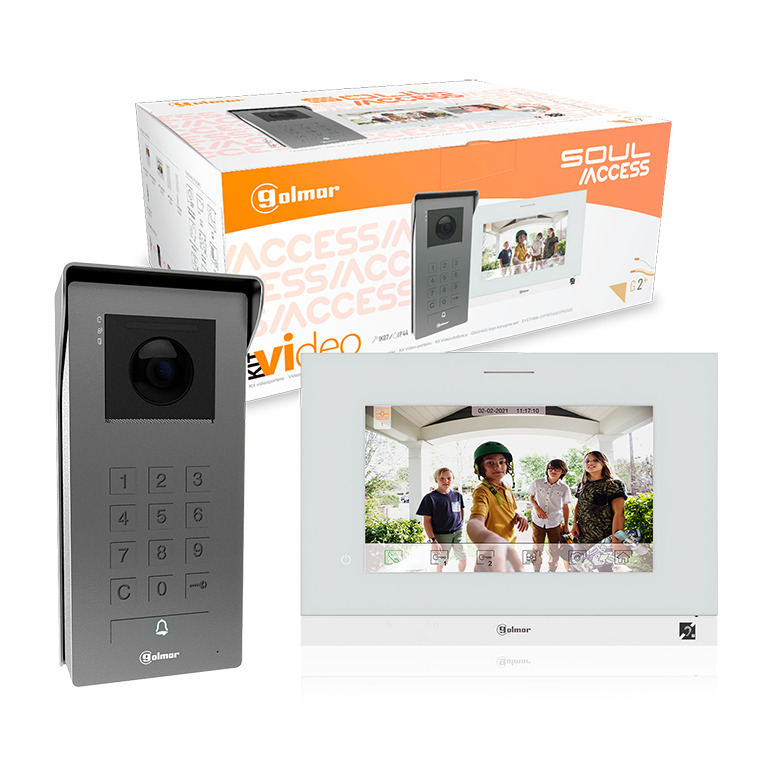

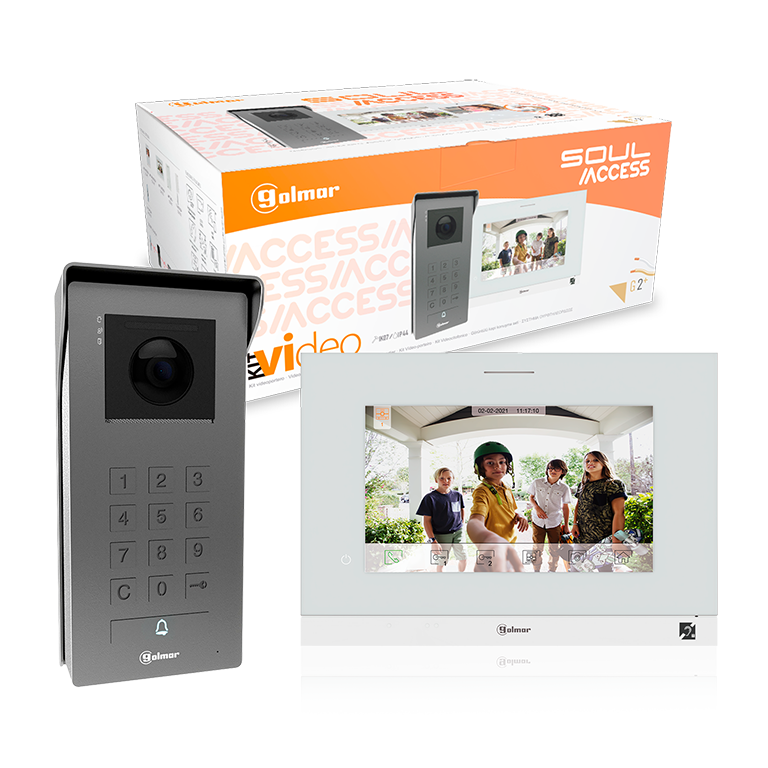

SOUL/ACCESS video door phone kit with 2-wire G2+ technology.

Composed of:



*

More information

Characteristics of the 7" ART 7H/G2+ monitor:

  • 7" screen with capacitive navigation buttons.
  • High efficiency loudspeakers.
  • Audio communications, video and secret door opening.
  • Video-spy functions, auto-start, doctor mode and do not disturb.
  • Intercommunication with other units of the house selectively.
  • Personalization of ring tones.
  • Connection to the entrance door pushbutton, which saves the use of the doorbell.
  • Output to auxiliary call repeater.
  • Image memory, up to 100 photos in internal storage. Micro SD card slot for video recording.
  • Functionality of automatic erasure of images after 30 days.
  • Up to 4 monitors in the same house without additional power.

Dimensions: 222(W) x 154(H) x 15(D) mm.

Characteristics of the SOUL/ACCESS panel:

  • Made of Zamak alloy, graphite color.
  • Vandal-proof: IK-07 and IP-54 weatherproof.
  • 150º wide angle camera with white auto-on LEDs for night vision.
  • LEDs indicating the different states of the system (call in progress, in communication, door opening).
  • Backlit metal push buttons with serigraphy of numbers and characters.
  • Secret communication of audio, video and door opening process.
  • Acoustic confirmation tones when pressing buttons.
  • Relay output for the activation of two doors.
  • Surface mount.
  • Includes rainshield.

Dimensions: 87(W) x 188(H) x 30(D) mm.
