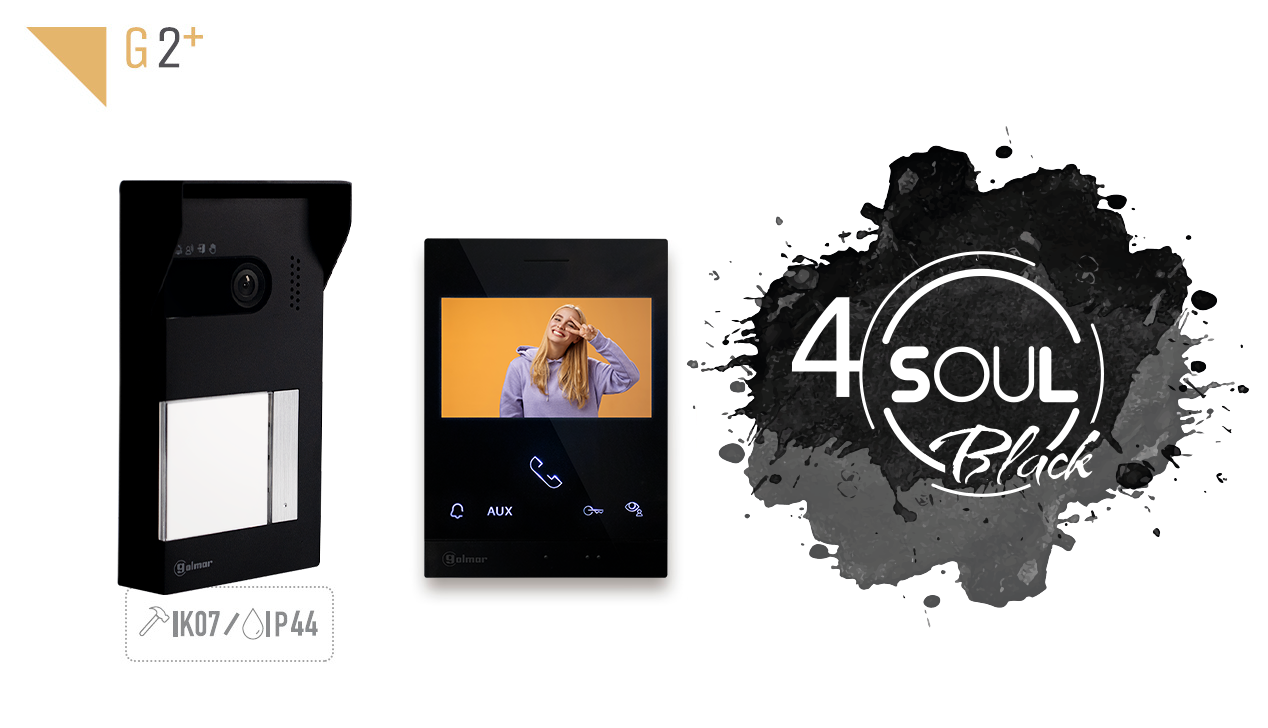

S5110/ART 4B XLITE one line video kit
Reference : S5110/ART 4B XLITE
Product code: 12205115B
EAN code : 8429898034669
Soul video door panel kit with 2-wire technology.
- SOUL/1B vandal-proof outdoor panel for a call button
- Monitor ART 4B XLITE/G2+ 4.3" hands free
- Power supply FA-G2+/LITE
Product available on demand
More information
ART 4B XLITE/G2+ MONITOR
Hands-free monitor for surface installation.
4.3" screen with capacitive navigation buttons.
High efficiency loudspeakers.
Audio communications, video and secret door opening.
Video-spy functions, auto-start, doctor mode and do not disturb.
Intercommunication with other units of the house selectively.
Personalization of ring tones.
Connection to the entrance door pushbutton, which saves the use of the doorbell.
Output to auxiliary call repeater.
Dimensions: 110(W) x 155(H) x 14(D) mm.
Up to 4 monitors in the same house without additional power.
Power supply FA-G2+/LITE.
Use 12V d.c. lock release (does not include lock release).
Recommended lock release: CV-24P/UNI (20600252).
Hands-free monitor for surface installation.
4.3" screen with capacitive navigation buttons.
High efficiency loudspeakers.
Audio communications, video and secret door opening.
Video-spy functions, auto-start, doctor mode and do not disturb.
Intercommunication with other units of the house selectively.
Personalization of ring tones.
Connection to the entrance door pushbutton, which saves the use of the doorbell.
Output to auxiliary call repeater.
Dimensions: 110(W) x 155(H) x 14(D) mm.
Up to 4 monitors in the same house without additional power.
Power supply FA-G2+/LITE.
Use 12V d.c. lock release (does not include lock release).
Recommended lock release: CV-24P/UNI (20600252).
ANTI-VANDAL SOUL/1B PANEL
Zamak front in black finish
CMOS 120º camera
Vandal resistant (IK-07) and weatherproof (IP-44) door panel.
Auto-start LEDs depending on outdoor lighting
Color guide icons indicate the different states of the system (call in progress, communication, door opening or occupied system)
Metallic call button
Secret communication of audio, video and door opening
Relay output for activation of two doors
Connection to analog CCTV camera
RFID proximity reader for 60 users (keys not included)
Surface installation
Dimensions: 90(W) x 170(H) x 27(D) mm
Zamak front in black finish
CMOS 120º camera
Vandal resistant (IK-07) and weatherproof (IP-44) door panel.
Auto-start LEDs depending on outdoor lighting
Color guide icons indicate the different states of the system (call in progress, communication, door opening or occupied system)
Metallic call button
Secret communication of audio, video and door opening
Relay output for activation of two doors
Connection to analog CCTV camera
RFID proximity reader for 60 users (keys not included)
Surface installation
Dimensions: 90(W) x 170(H) x 27(D) mm
