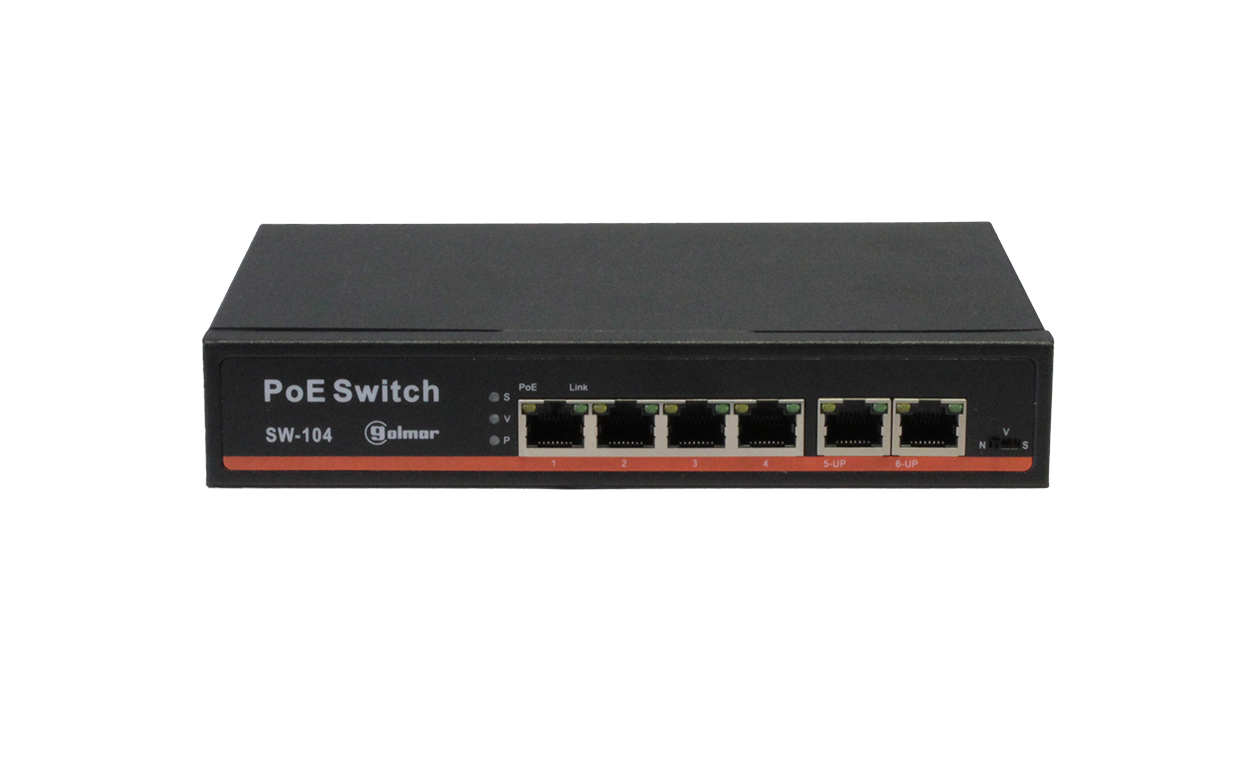

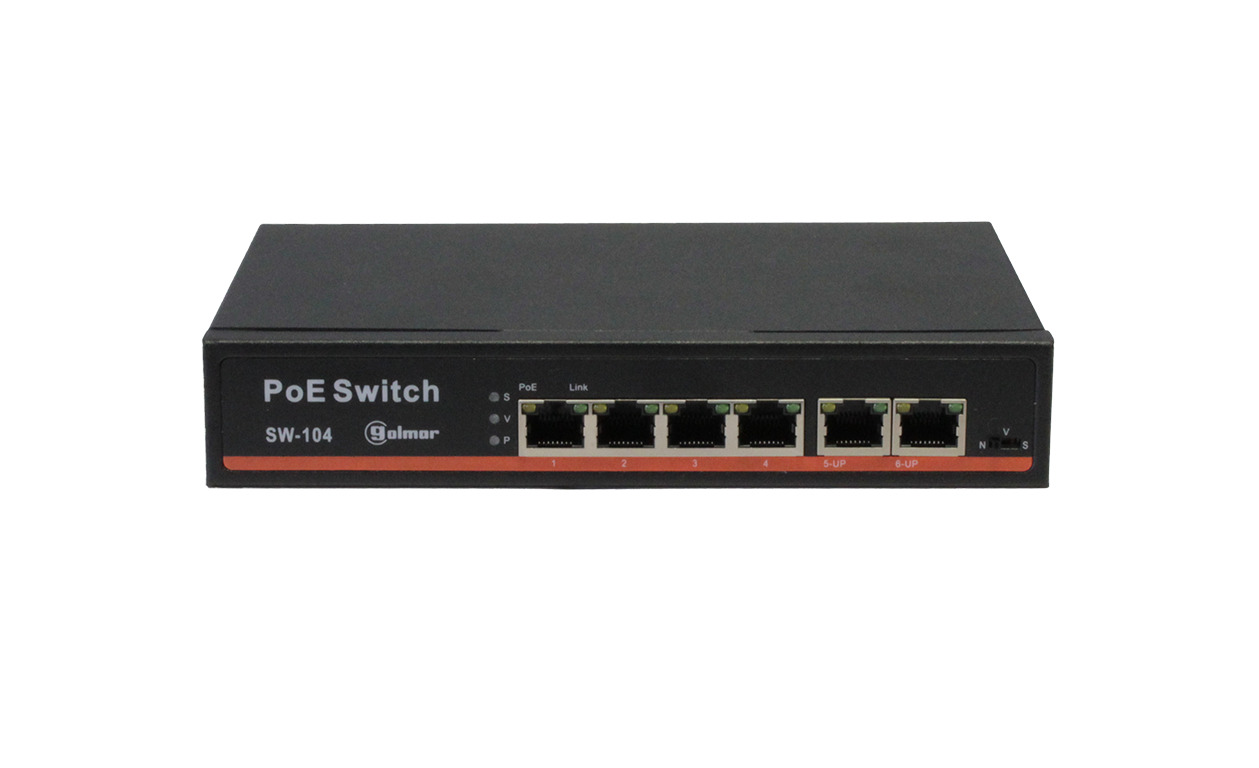

SW-104 4-port PoE Switch
Reference : SW-104
Product code: 31600238
EAN code : 8429898019031
- 4chn PoE switch
- 4 x 10/100 Mbps PoE
- 2 x 10/100 Mbps Uplink
- Bandwithd 1.6 Gbps
- Total rated output power 80W
- Dimensions 190 x 130 x 32 mm (W x D x H)
- Operating temperature from -10,C to 55,C
More information
| Number of PoE ports | 4 |
| Number of Uplink Ports | 2 |
| Power Output | DC 48-57V, 80W total, max. 30W for each port |
| Data exchange | 10/100Mbps |
| Bandwidth/MAC | 1.6Gbps / 1K |
| Network Protocols | IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af/at PoE IEEE 802.3x Flow control IEEE802.1q VLAN |
| Working Modes | Normal Mode, Long Distance Mode, VLAN Mode |
| Certificates | CE/LVD EN60950, FCC Part 15 Class B, RoHS |
| size | 190 x 32 x 130 mm (W x H x D) |
| weight | 0.9 Kg |
