• CCTV
  • Technology : IP
  • Type of device : Power supplies and accessories

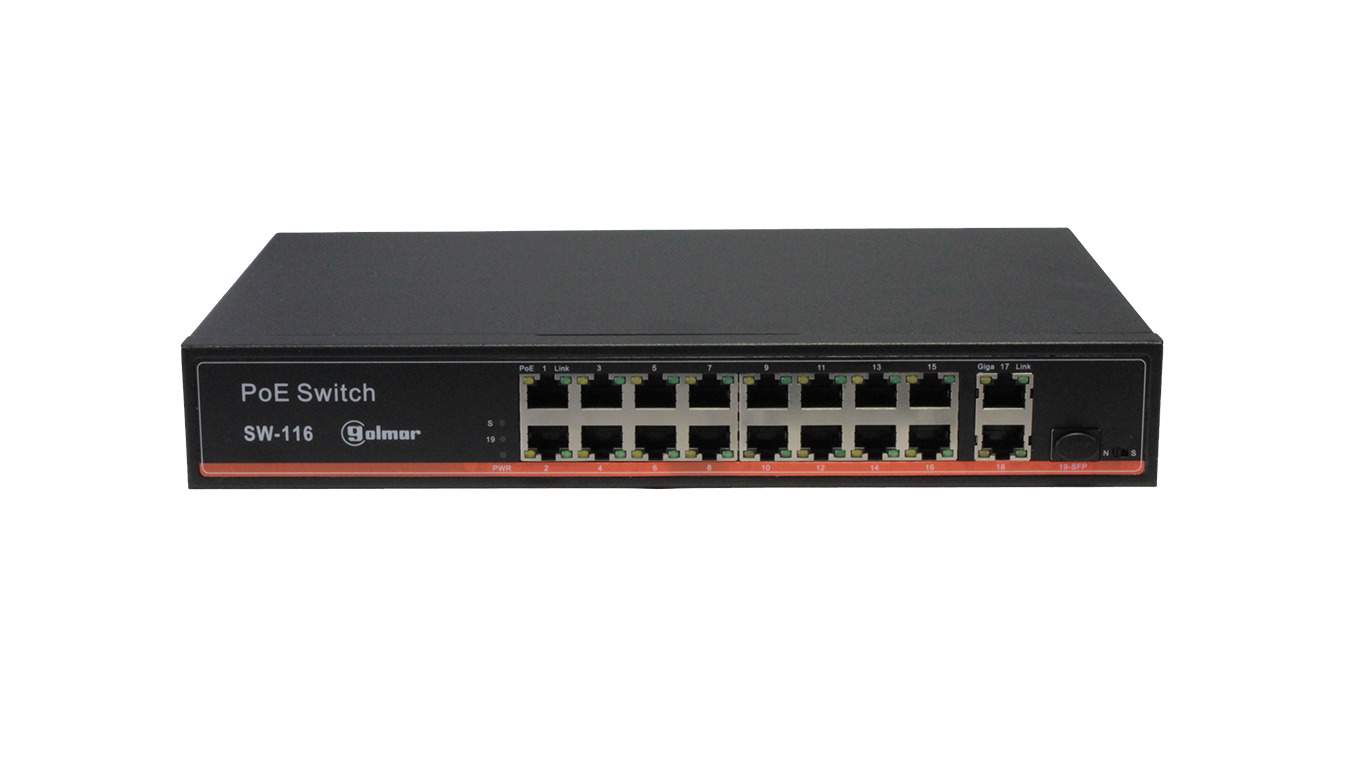

SW-116 16-port PoE Switch

Reference : SW-116

Product code: 31600240

EAN code : 8429898019055

  • 16chn PoE switch
    16 x 10/100/100Mbps PoE
    2 x 10/100/1000Mbps Uplink
    1 x 10/100/1000Mbps FSP
    Bandwithd 24Gbps
    Total rated output power 300W
    Dimensions 295 x 190 x 45 mm (W x D x H)

More information
Number of PoE ports 16
Number of Uplink ports 2
Output power Max. 30W for ports 3-16 (IEEE802,3af/at)
Máx. 90W for ports 1-2 (IEEE802,3af/at/PoE++/BT)
Data exchange PoE: 10/100Mbps
Uplink 10/100/1000Mbps
Bandwidth / MAC 24Gbps / 4K
Packet forwarding rate / Cache 7,68Mbps, 4Mb
Network protocols IEEE 802.3 Ethernet media access control protocol
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000BASE-X Gigabit Fiber Ethernet
IEEE 802.3x Flow control
System mode Normal mode, long distance mode, VLAN mode
Certificates CE/LVD EN60950, FCC Part 15 Class B, RoHS
Dimensions 295 x 45 x 195 mm (W x H x D)
Weight 2Kg
