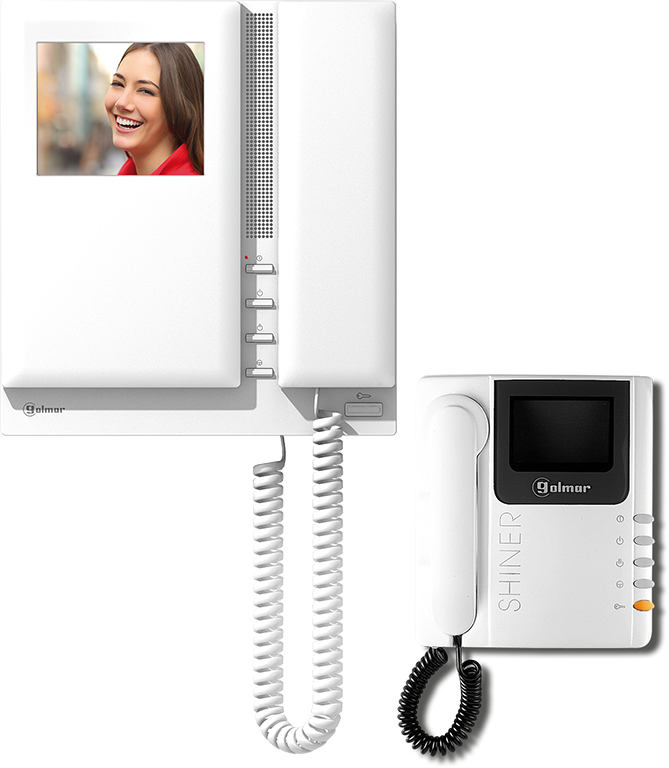

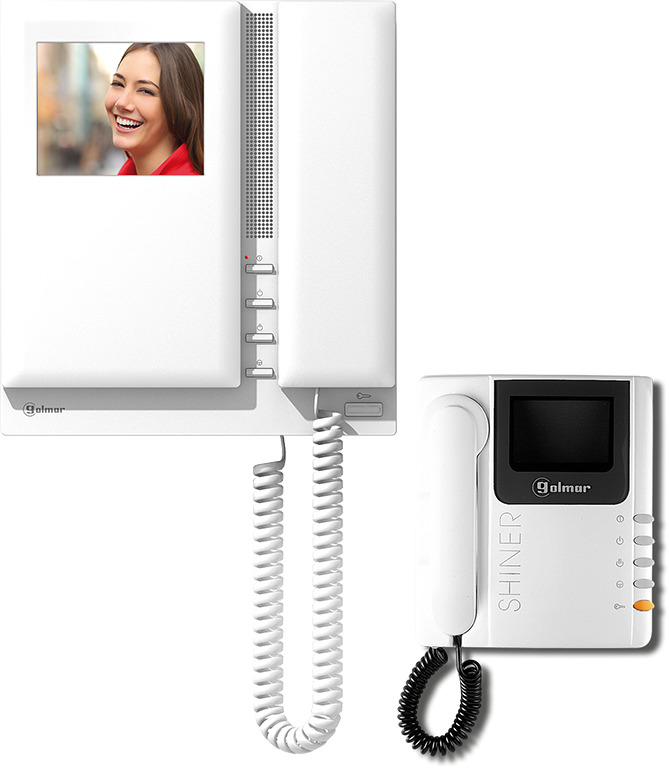

Tekna 90 Color 3.5" colour video monitor

Reference : TEKNA 90 TE

Product code: 19950142

EAN code : 8429898020136

  • Exclusive monitor for replacement of Shiner 90 monitors.
  • Digital installation of CAT5 or 3 wires + coaxial.
  • Casing manufactured in ABS RAL9003 white colour.
  • 3,5” colour TFT LCD screen.
  • Brightness and color adjustments.
  • Detachable telephone cord with connectors.
  • Surface installation through wall mounting connector (RCTK-Plus, not included).

Dimensions: 208(W) x 220(H) x 54(D) mm.

More information
  • Dip switch for alternative programming.
  • Privacy on audio, video and door open progresses.
  • On-Off push button with light indicator.
  • Video spy and auto switch-on functions.
  • Input for EL562 receiver module, that allows video signal reception through a twisted pair wires, replacing the coaxial cable.
  • Input for door bell apartment push button.
  • Different call reception tones depending where the call is coming from.
  • Three positions call volume regulator.
  • Uses the lock release push button to call to the concierge unit.
  • Panic call to the concierge unit and connection to a second concierge.
  • Background tones in the telephone handset confirm outgoing calls are in progress.
  • Output for activation of a SAV-90 call repeater or a SAR-12/24 relay unit during call reception.
  • Two programmable buttons for the activation of auxiliary devices (second camera, lights, ...), using SAR-12/24 relay units.
  • Use D4L-Plus/RJ45 or D6L-Plus/2H video distributors in case of CAT5 installation or D4L-Plus video distributors in case of coaxial cable installations, according to the wiring run.
  • The maximum number of units inside the same apartment, without additional power supplies, is three.
