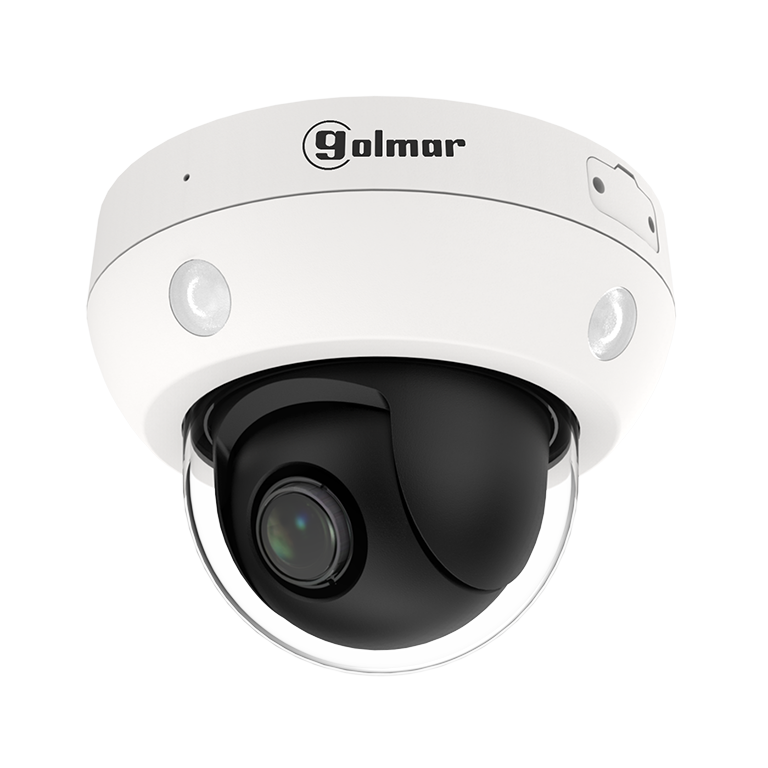

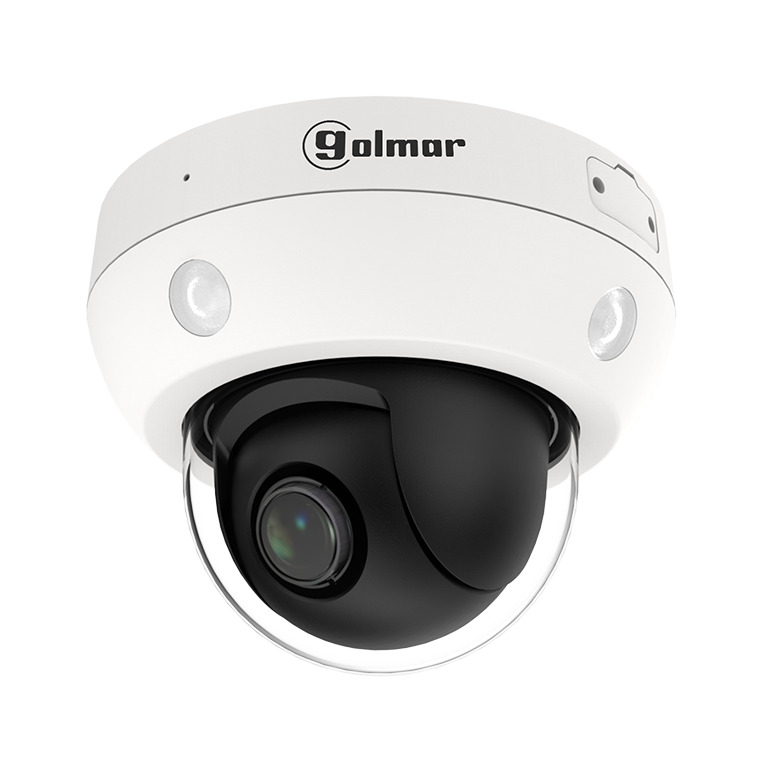

PTZ-04X4IPA 4Mpx full color camera with motorized lens
Reference : PTZ-04X4IPA
Product code: 31600336
EAN code : 8429898026077
- PTZ dome with IP technology 4MPx resolution 4x optical zoom ONVIF compatibility (Profile S, G, T) IK10 rated glass 120dB True WDR Video analytics functions Dimensions: 153 (Ø) x 119 (H) Weight: 950gr
More information
| Specifications | |
|---|---|
| Type | PTZ |
| Technology | IP |
| Max. Resolution | 4Mpx |
| Colour | Blanco |
| Mounting | Techo |
| Lense | Motorizada |
| Focal length | 2.8-12mm |
| Zoom (x) | 4 |
| Max. Aperture ratio | F1.2 |
| Horizontal field of view (º) | 114.6° - 48.3° |
| Vertical field of view (º) | 59° - 27.1° |
| Night vision mode | Full Color |
| White light distance (m) | 20 |
| IR distance max. (m) | 20 |
| Pan range | 350º |
| Pan speed | 0.6°/s - 54°/s |
| Tilt range | 0° - 80° |
| Tilt speed | 0.6°/s - 52°/s |
| Presets | 255 |
| Autotracking | No |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR |
| Bitrate | 8 kbps - 8192 kbps |
| Main Stream (FPS) | 50 fps (2560x1440,2304x1296,1920 × 1080, 1280 × 720) |
| Sub Stream (FPS) | 50 fps (1280x720,640 × 480, 320x240) |
| Video compression | H.264,H.265,H.265+ |
| Audio compression | Blanco |
| Video Analysis | LCD,PID,PD,VD,FD,SOD,CC,CD,QD,HM |
| Internal storage | Sí (máx 256Gb) |
| Vehicle speed (Km/h) | 0.6°/s - 52°/s |
| Network interface | RJ45 |
| I / O alarms | 20 |
| I / O audio | 20 |
| Built-in microphone | Yes |
| Built-in speaker | Yes |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, TCP/IP, UDP, DHCP, PPPoE |
| Compatibility | Blanco |
| Degree of protection (IK) | IK10 |
| Degree of protection (IP) | IP66 |
| Material | 50 fps (2560x1440,2304x1296,1920 Ã 1080, 1280 Ã 720) |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 90% |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Max. consumption (W) | 8 |
| Dimensions - Width (mm) | 121 |
| Dimensions - Diameter (mm) | 153 |
| Weight (gr.) | 950 |
| Certifications | CE,RoHS |
