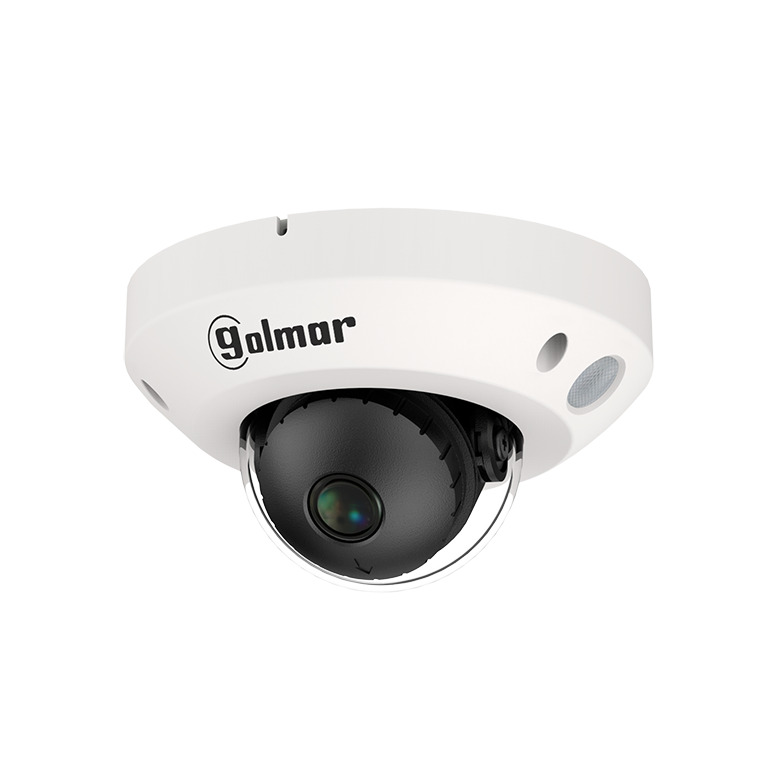

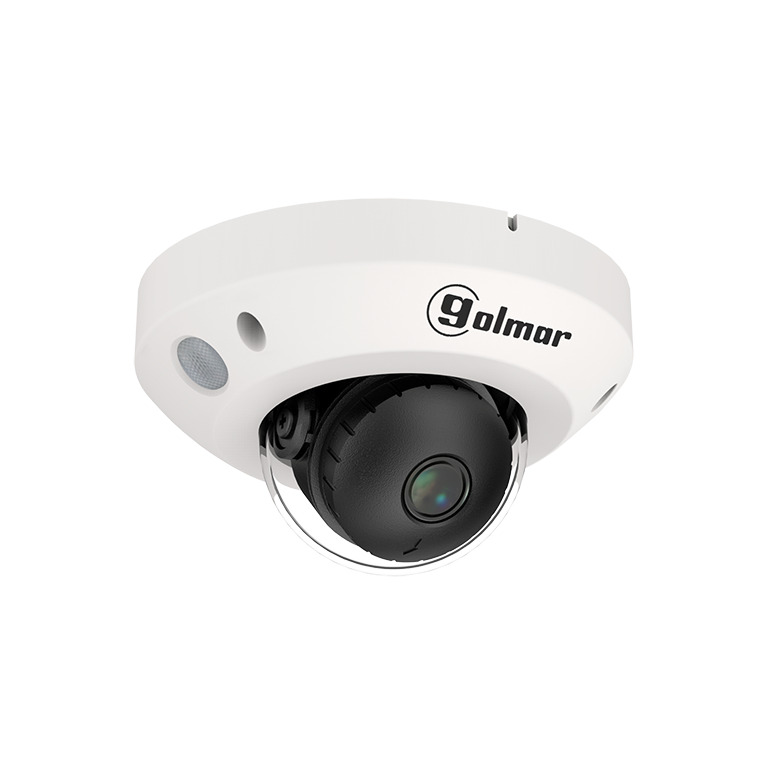

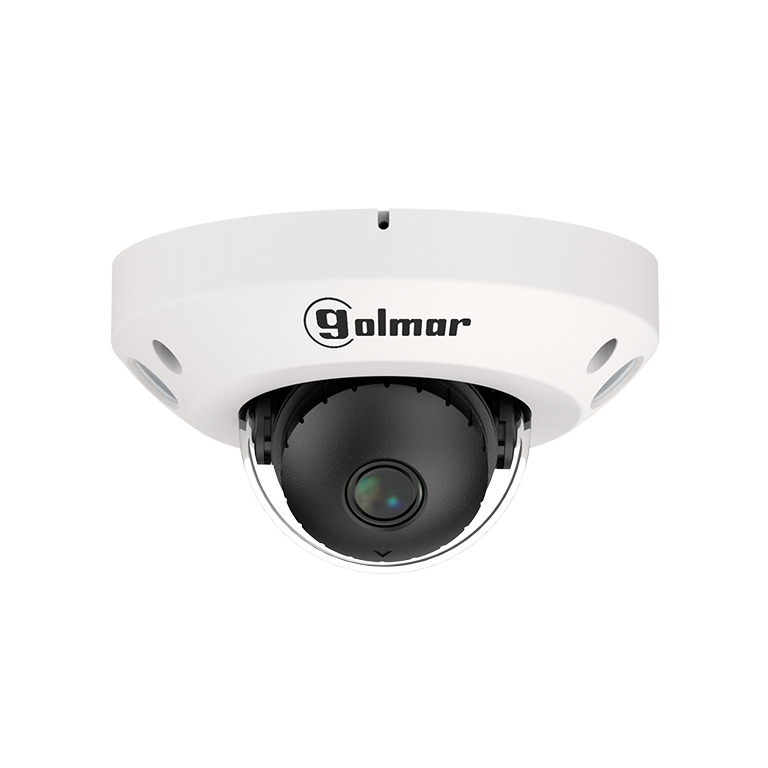

CIP-21D5C PoE compact IP dome, 5Mpx
Reference : CIP-21D5C
Product code: 31692051
EAN code : 8429898025803
- 5Mpx compact PoE dome with 2.8mm lense
1/2.7" progressive CMOS sensor
H.265 / H.264 compression
Proprietary protocol / Onvif (S, G, T)
Fixed 2.8mm lense with 88° horizontal field of view
Infrared illumination with 25m range
Built-in microphone
IP66 protection rating
IK10 rated glass
Compatible with C-BASE02 base
Dimensions: 115(Ø) x 60(D) mm
More information
| Type | Dome |
| Technology | IP |
| Image sensor | 1/2.7" Progressive CMOS |
| Maximum resolution | 5 Mpx |
| Lense | 2.8 mm |
| Angle of view | 88.3° horizontal |
| Maximum aperture | F1.0 |
| Minimum illumination | Colour 0.0005 Lux @（F1.0，AGC ON) |
| Full Color | No |
| Day / Night | Yes |
| White light range | - |
| Max. infrared range | 25m |
| Additional features | WDR, BLC, 3D-NR, AE, ATW, AWB, AGC |
| Bitrate | 8Kbps ~ 8Mbps |
| Main Stream | 5MP(2880x1620) |
| Sub Stream | 720P(1280x720) |
| Compression | H.265 / H.264 |
| Video analysis | Yes |
| Internal storage | Yes (max. 256Gb) |
| Network interface | RJ45 |
| Alarms | No |
| Audio (RCA) | No |
| Built-in microphone | Yes |
| Reset button | Yes |
| Remote access | Chrome, Edge, Explorer, GolmarView App, VMS Pro for PC |
| Compatibility | ONVIF (Profile S, G, T) |
| Base compatible | C-BASE02 |
| Protection degree (IP) | IP66 |
| Vandal resistant grade IK | Glass IK10 |
| Material | Plastic |
| Operating temp. | -30～+60°C ≤ 95% HR |
| Power consumption | 11 W |
| Power supply | 12Vdc / PoE |
| Dimensions | 115(Ø) x 60(D) mm |
| Weight | 262 g |
