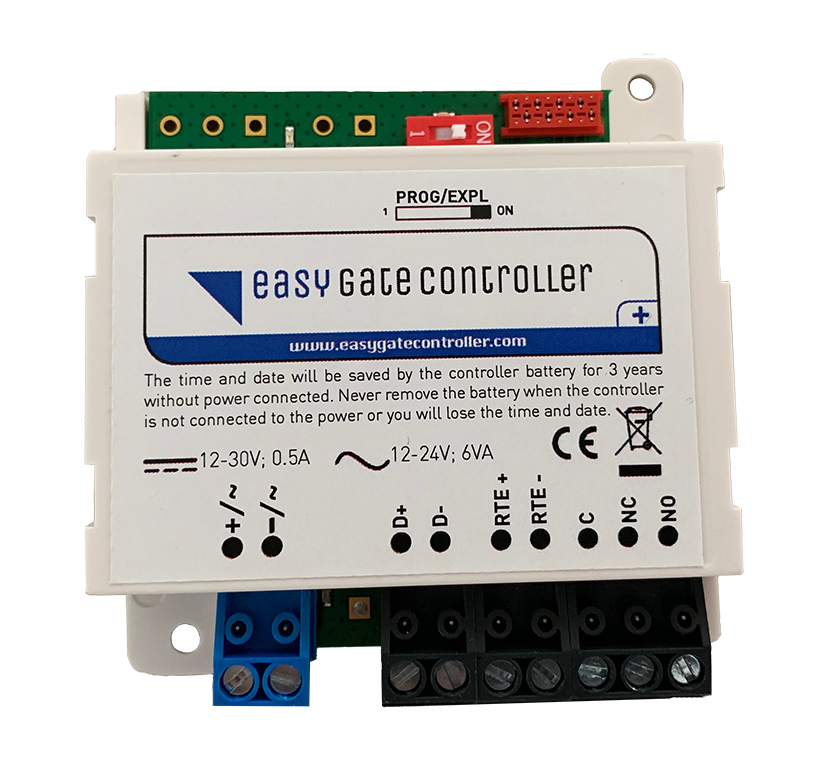

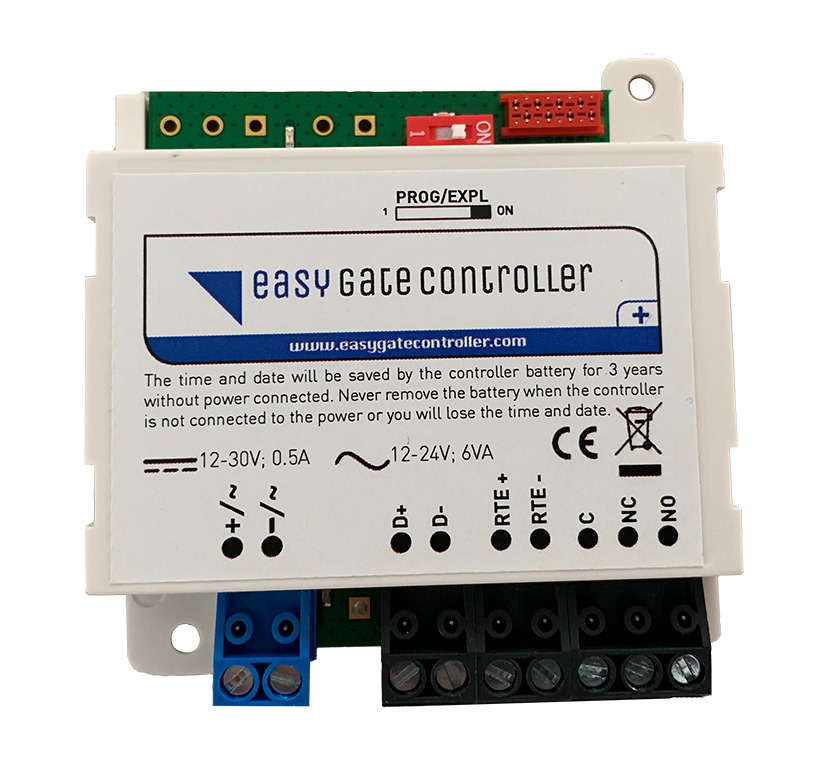

EASYGATE controller
Reference : EASYGATE
Product code: 20740440
EAN code : 8429898021089
EASYGATE controller
- Proprietary 2SAFE protocol
- Local programming and via web environment
- RFID verification
- Up to 2000 users (web environment) or 1500 (local mode)
- 12/24VAC or DC power supply (not included)
Dimensions: 70(W) x 70(H) x 19(D) mm
More information
Easy Gate is a controller designed for the management of 1 door or access.
Offers 2 ways of handling:
1) Local mode, by creating a master key and then the user keys.
2) Remote mode through a web portal and an encoder connected to a computer, with software.
In none of the modes is it necessary to connect the controller to the Internet.
- The remote mode allows the control of up to 50 doors or accesses to be enabled without the need to have a cable connected between the controller and the opening device.
- Proximity readers can be linked to this controller, as well as the electronic module EL4500/EASY for integration into Nexa boards.
- Encoder required for use in web environment: GM-USB-IPOP.
| Specifications | |
|---|---|
| Technology | 2SAFE |
| No. of doors | 1 |
| Communication | Communication protocol: proprietary (2SAFE) |
| Reading/management type | Proximity |
| Use | Indoor |
| RFID Frequency (MHz) | 13.56 |
| Max. Users | 2000 |
| Requires a license | No |
| Format Reports | XLS |
| Report generation | Yes |
| Input voltage | 12Vdc,12Vac,24Vdc,24Vac |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -20 |
| Dimensions - High (mm) | 70 |
| Dimensions - Width (mm) | 70 |
| Dimensions - Deep (mm) | 19 |
| Weight (gr.) | 115 |
