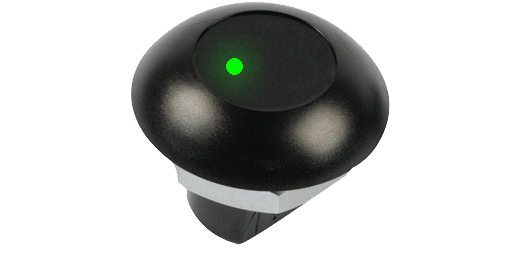

GM-IPOP CHAMP proximity reader
Reference : GM-IPOP CHAMP
Product code: 20720007
- 13.56MHz proximity reader with 2SMART technology
- For IP OPENER and EASYGATE controllers
- Suitable with CARDDOOR MF+, TAGDOOR MF+, GM-WEIPOP, ISOPROX and KEYPROX cards and keyfobs
- Status indicator light
- Embedded installation in front panels
Dimensions: 43(Ø) x 7(D) mm
Hole diameter: 25.5mm
More information
| Specifications | |
|---|---|
| Technology | 2smart |
| Type Function | Slave |
| Reading / Detection Type | Proximity |
| RFID Frequency (MHz) | 13.56 |
| RFID Reading /coverage distance (cm) | 4 |
| Use | Outdoor,Indoor |
| Mounting | Embedded |
| State LEDs | Yes |
| Input voltage | 12Vdc |
| Powered by controller | Yes |
| Degree of protection (IP) | 53 |
| Maximum working temperature (ºC) | 70 |
| Minimum working temperature (ºC) | -20 |
| Dimensions - Deep (mm) | 7 |
| Dimensions - Diameter (mm) | 43 |
| Dimensions - Cut-out Diameter (mm) | 25.5 |
| Weight (gr.) | 60 |
