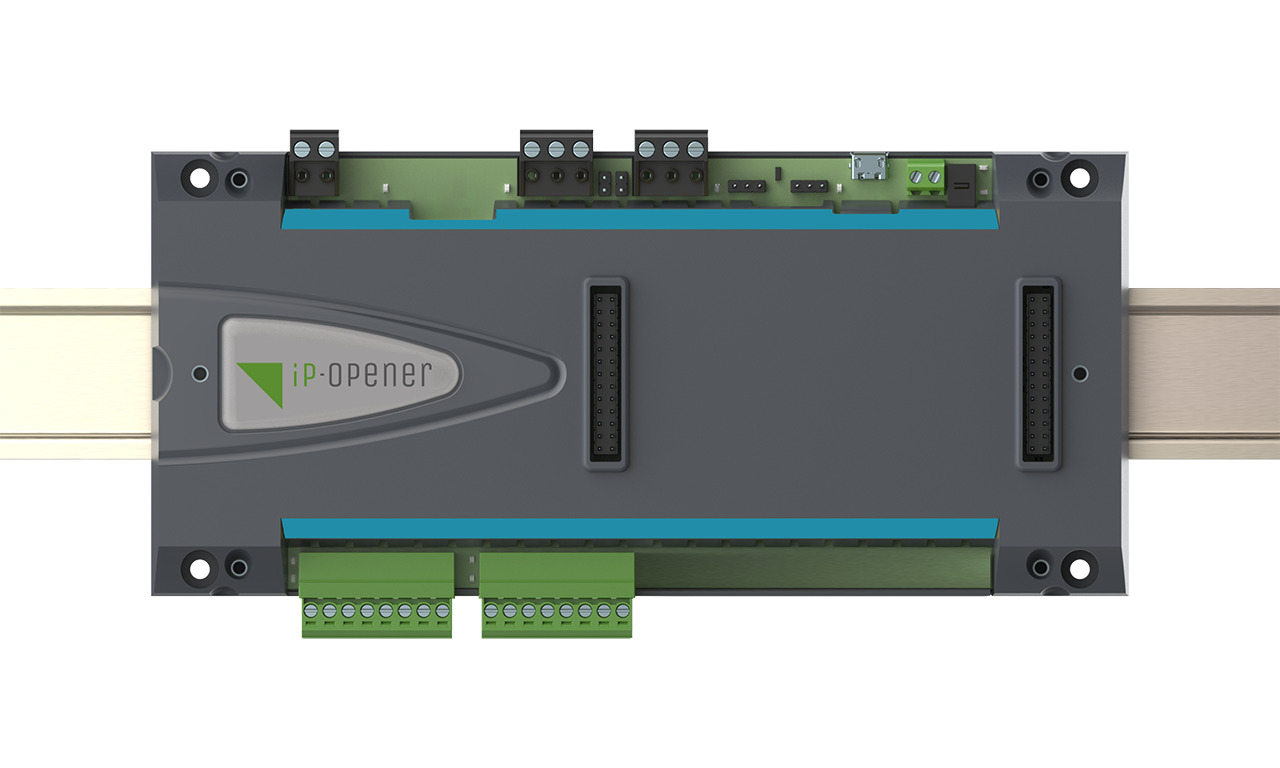

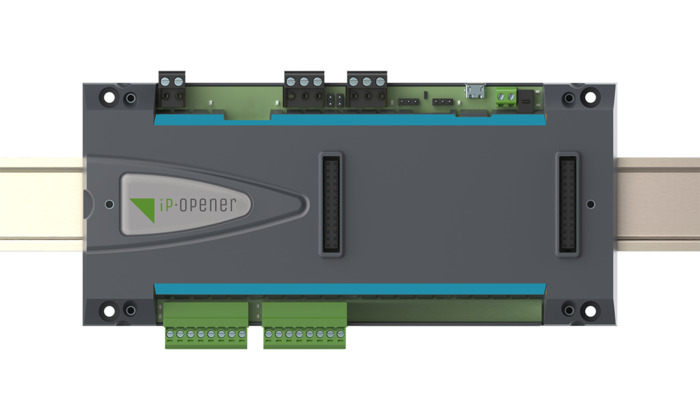

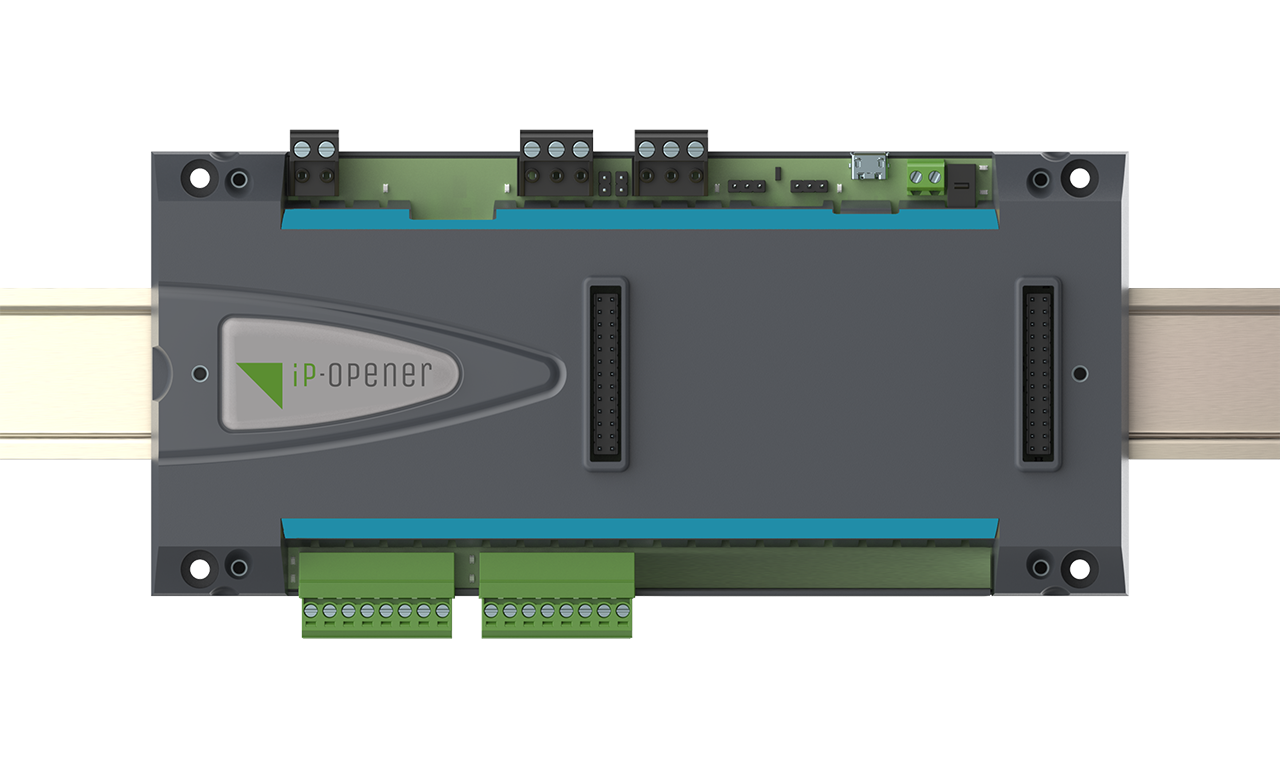

2 door access control panel GM-IPOP-2P

Reference : GM-IPOP-2P

Product code: 20780201

2SMART 2 access controller

  • 2SMART proprietary protocol
  • Remote programming and management via web environment IP-OPENER MANAGER
  • Network connection via TCP/IP or RS485
  • Verification by PIN, RFID, 868 Mhz RF or Bluetooth
  • Capacity for up to 100,000 users and storage of up to 20,000 events
  • 48VDC / 2A output relay
  • Input for remote activation pushbutton with optocoupler protection
  • Installation in metal cabinet (not included)
  • 12Vdc/1.5A power supply (included in metal cabinet)
Dimensions: 198(W) x 90(H) x 34(D) mm

More information
Specifications
Technology 2smart
No. of doors 2
Connection Ethernet,RS485
Reading/management type PIN,Proximity,Bluetooth
Use Indoor
RFID Frequency (MHz) 13.56
Max. records 20000
Max. Users 100000
Max. Network controllers 64
Max. Readers by Red. 384
Mounting DIN rail
Requires a license No
Format Reports XLS
Report generation Yes
Management Companies,Calendars,Marking
Input voltage 12Vdc
Maximum working temperature (ºC) 60
Minimum working temperature (ºC) -10
Relative humidity work (max.) 85
Dimensions - High (mm) 90
Dimensions - Width (mm) 198
Dimensions - Deep (mm) 34
Weight (gr.) 595
