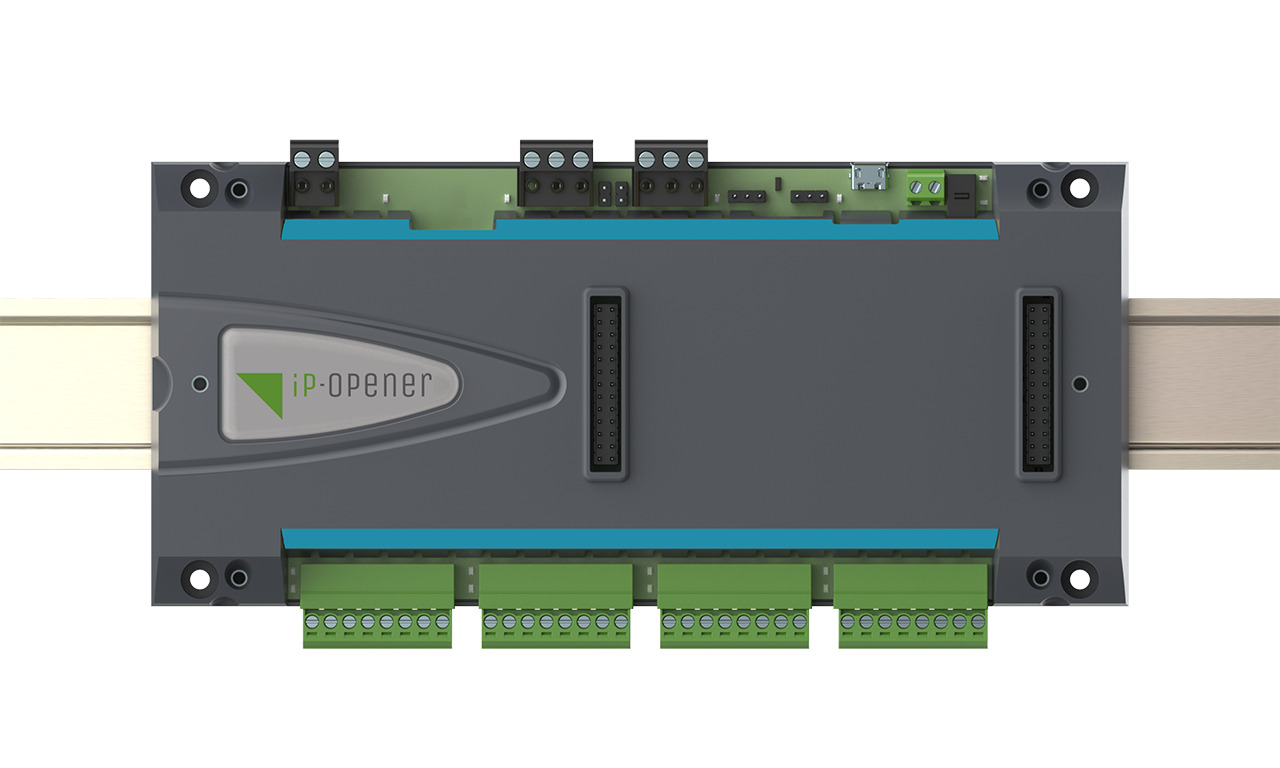

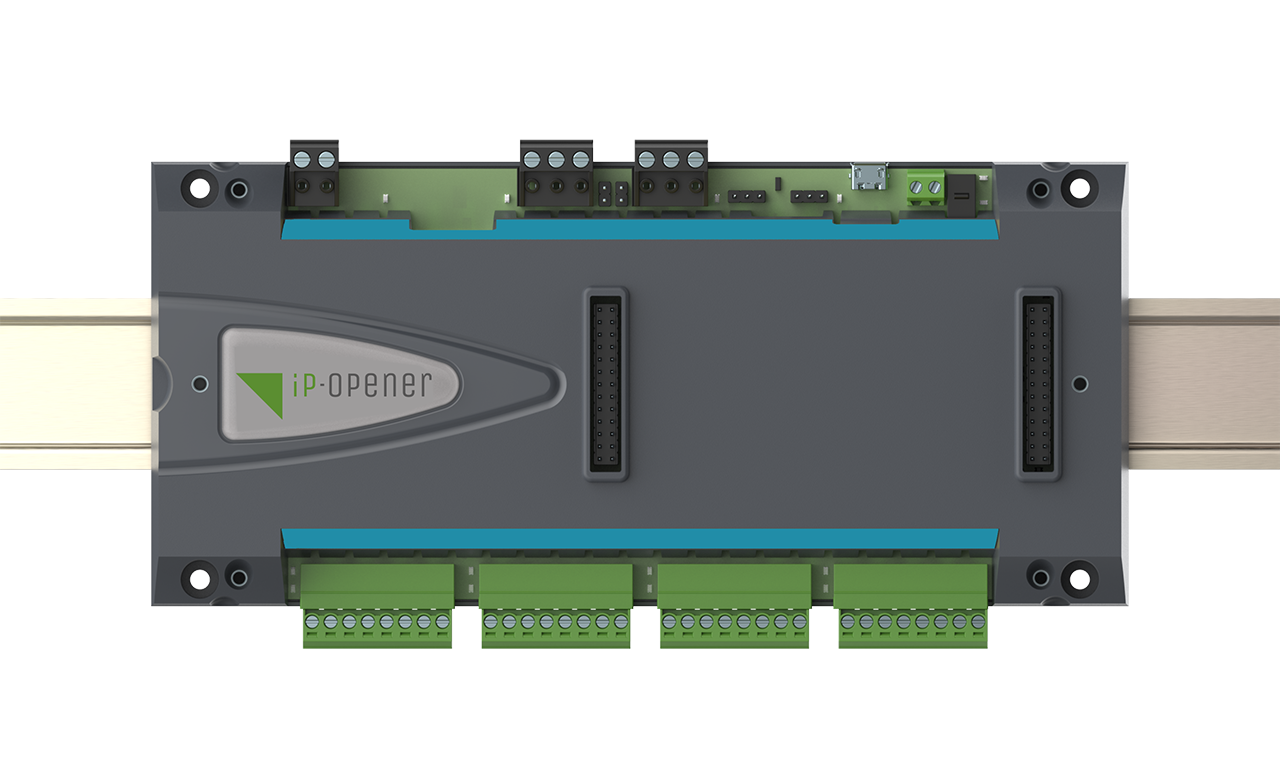

4 door access control panel GM-IPOP-4P
Reference : GM-IPOP-4P
Product code: 20780202
EAN code : 8429898021003
2SAFE 4 access controller
- 2SAFE proprietary protocol
- Remote programming and management via web environment IP-OPENER MANAGER
- Network connection by TCP/IP or RS485
- Verification by PIN, RFID, 868 Mhz RF or Bluetooth
- Capacity for up to 100,000 users and storage of up to 20,000 events
- 48VDC / 2A output relay
- Input for remote activation pushbutton with optocoupler protection
- Installation in metal cabinet (not included)
- 12Vdc/1.5A power supply (included in metal cabinet)
Dimensions: 198(W) x 90(H) x 34(D) mm
More information
| Specifications | |
|---|---|
| Technology | 2SAFE |
| No. of doors | 4 |
| Connection | Ethernet,RS485 |
| Reading/management type | PIN,Proximity,Bluetooth |
| Use | Indoor |
| RFID Frequency (MHz) | 13.56 |
| Max. records | 20000 |
| Max. Users | 100000 |
| Max. Network controllers | 64 |
| Max. Readers by Red. | 384 |
| Mounting | DIN rail |
| Requires a license | No |
| Format Reports | XLS |
| Report generation | Yes |
| Management | Companies,Calendars,Marking |
| Input voltage | 12Vdc |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -10 |
| Relative humidity work (max.) | 85 |
| Dimensions - High (mm) | 90 |
| Dimensions - Width (mm) | 198 |
| Dimensions - Deep (mm) | 34 |
| Weight (gr.) | 595 |
Downloads
INSTALLATION MANUAL | GM·IPOP·CONFIGURATION | REV 0223 | English
INSTALLATION MANUAL (2) | GM-IPOP-CONNECTION | REV 0124 | English
USER MANUAL | IPOP-END-USER-MANAGEMENT.pdf | REV 0124 | English
USER MANUAL (2) | APPLICATION·NOTE·IP·OPENER | REV 0124 | English
SOFTWARE | GM·IPOP·IPSEARCH | REV 0121 |
certificate CERTIFICADO_-_GMu00b7IPOPu00b74PPOE_u00b7_GMu00b7IPOPu00b74P_u00b7_GMu00b7IPOPu00b71P_u00b7_GMu00b7IPOPu00b7EXP2P.pdf
