CCTV kit KIT-2DHVR2E with 2 domes
Reference : KIT-2DHVR2E
Product code: 31600908
EAN code : 8429898025384

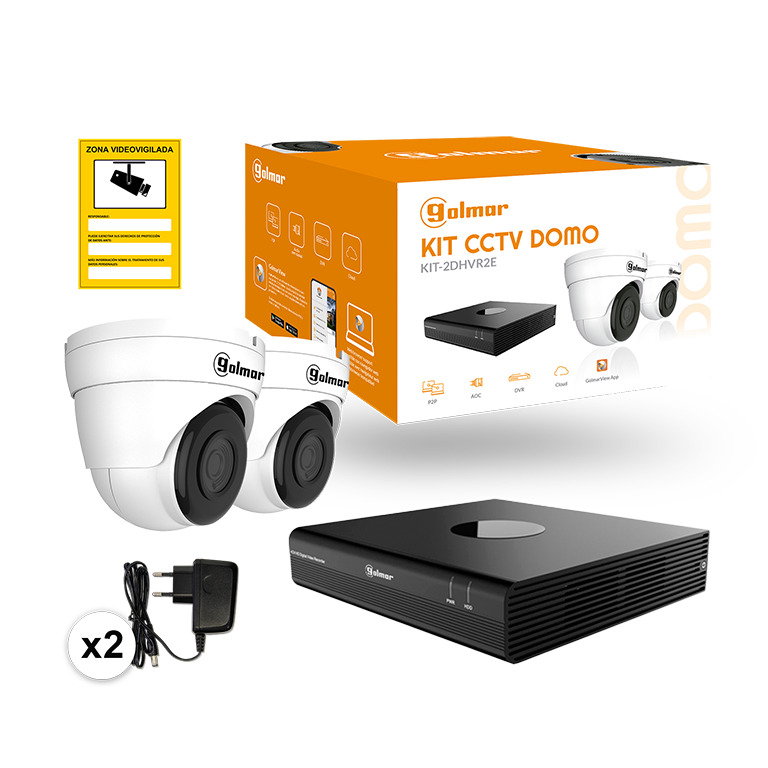

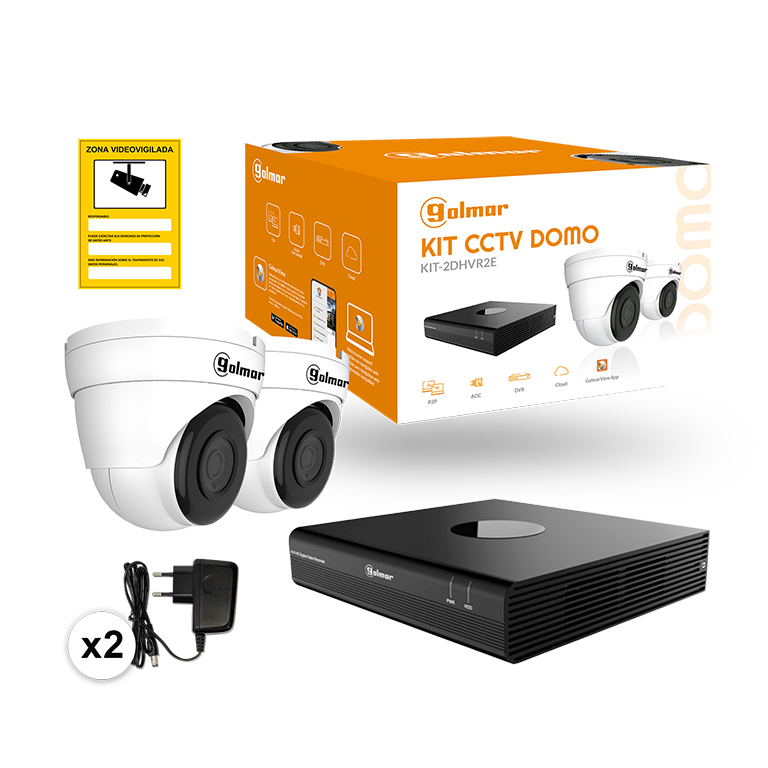

- Kit consists of:
4-channel hybrid DVR with AOC technology
(audio over coaxial)
2 x cameras AHD4-21D2E (31600705) dome type
with microphone and AOC technology
2 x 12Vdc/1A power supplies
1 x CCTV-ADH sign
DVR only supports 1 hard disk
1Tb disk included
Compatible with GolmarView App
Compatible with VMS Pro software
Not compatible with web browsers
More information
| DVR Features | |
| Type | DVR |
| Video compression format | H.264 / H.265 |
| Audio compression format | G.711a |
| Video format | HDTVI / HDCVI / AHD / CVBS |
| Analogue video channels | 4 |
| IP video channels | 1 |
| Hybrid configuration | Yes |
| Video outputs | 1 x HDMI |
| PoE ports | No |
| Supported IP cameras | Golmar, ONVIF |
| Refresh recordings (per channel) | 5MP-Lite:20fps 4MP-Lite: 25fps 1080P / 720P: 25fps IP: 25fps |
| Maximum input bandwidth | 4Mbps - 20Mbps (plus 4Mbps per channel override) |
| Maximum output bandwidth | 32Mbps |
| Recording method | Manual, programmed, motion detection |
| Video analysis (VA) | No |
| Face recognition | No |
| Synchronous playback | Yes |
| PTZ control | Yes |
| UTC | Yes |
| RS-485 | No |
| I/O Audio | No |
| AOC Audio | Yes |
| Alarms | No |
| USB | 2 rear |
| Network interface | RJ45 |
| Hard disk included | 1Tb (supports up to 10Tb) |
| Disk Bays | 1 |
| Free disk bays | 0 |
| Remote access | GolmarView, VMS Pro App for PC |
| Operating temp. | -10°C~+50°C |
| Power Consumption | 12W |
| Power consumption | 12Vdc / 2A included |
| Dimensions | 230 x 215 x 47mm |
| Weight | 1Kg |
| Remote access | GolmarView, VMS Pro App for PC |
| Operating temp. | -10°C~+50°C |
| Power Consumption | 12W |
| Power consumption | 12Vdc / 2A included |
| Dimensions | 230 x 215 x 47mm |
| Weight | 1Kg |
