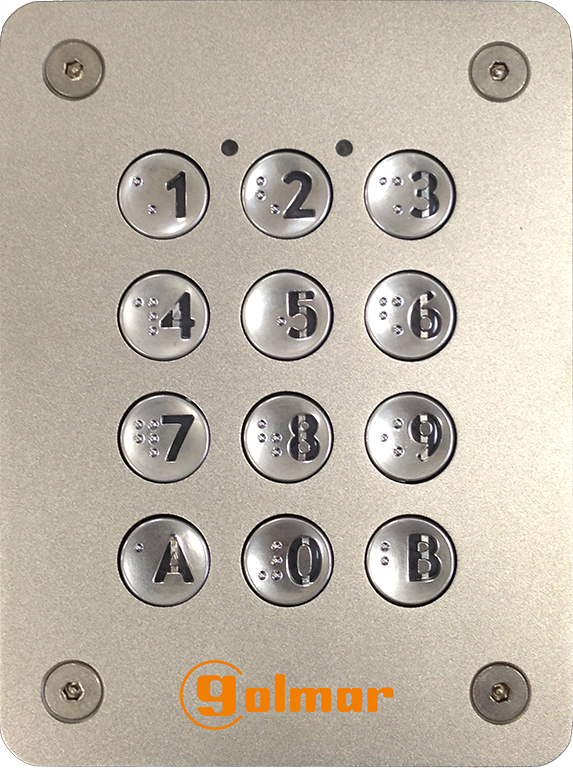

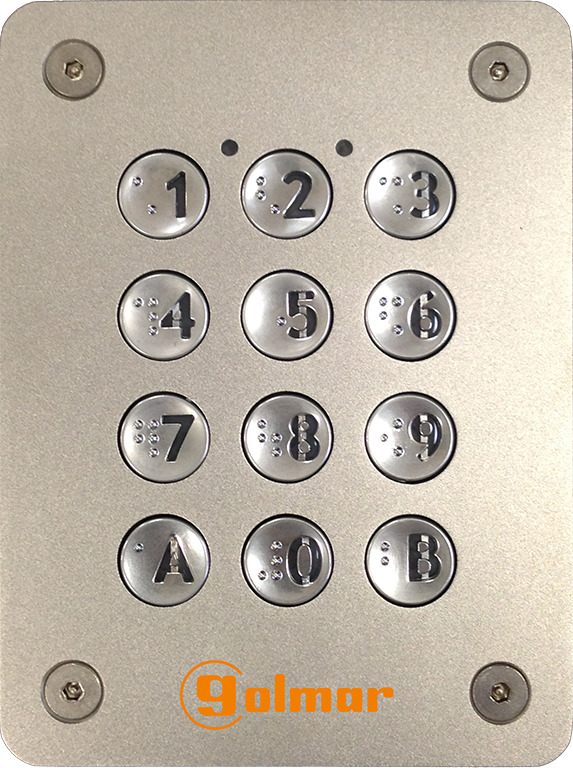

GM-KR-IPOP vandal-proof wall keypad for GM-IPOP control panels
Reference : GM-KR-IPOP
Product code: 20780215
- Vandal-resistant flush-mounted keypad with 2SMART technology
- For OPENER IP controllers
- Illuminated keypad with Braille marking
- Outdoor installation
Dimensions: 100(W) x 135(H) x 43(D) mm
More information
Flush box included.
Dimensions flush box: 95(W) x 125(H) x 40(D) mm
Dimensions flush box: 95(W) x 125(H) x 40(D) mm
Specifications | |
---|---|
Technology | 2smart |
Type Function | Slave |
Reading / Detection Type | PIN |
Use | Outdoor,Indoor |
Mounting | Embedded |
Incorporates base | Yes |
State LEDs | Yes |
Input voltage | 12Vdc |
Powered by controller | Yes |
Degree of protection (IP) | 54 |
Additional specifications | Caja de empotrar incluida. Dimensiones caja de empotrar: 95(An) x 125(Al) x 40(P) mm |
Dimensions - High (mm) | 135 |
Dimensions - Width (mm) | 100 |
Dimensions - Deep (mm) | 43 |
Weight (gr.) | 670 |
