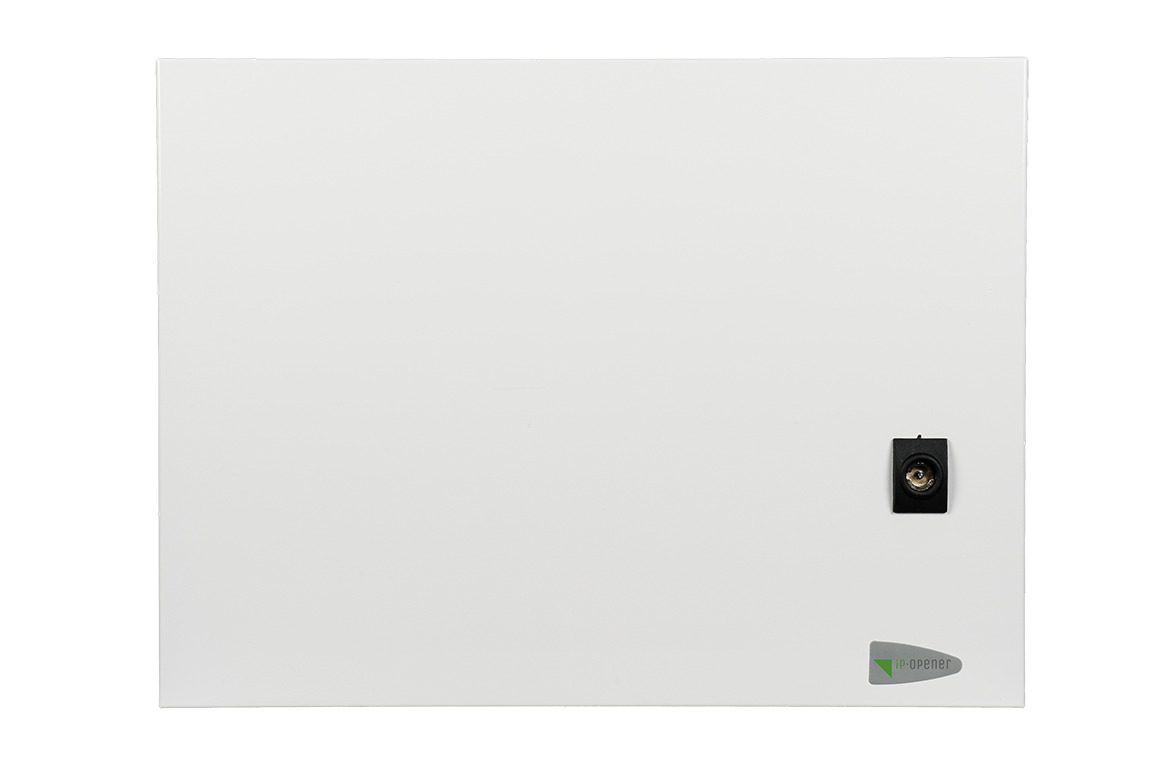

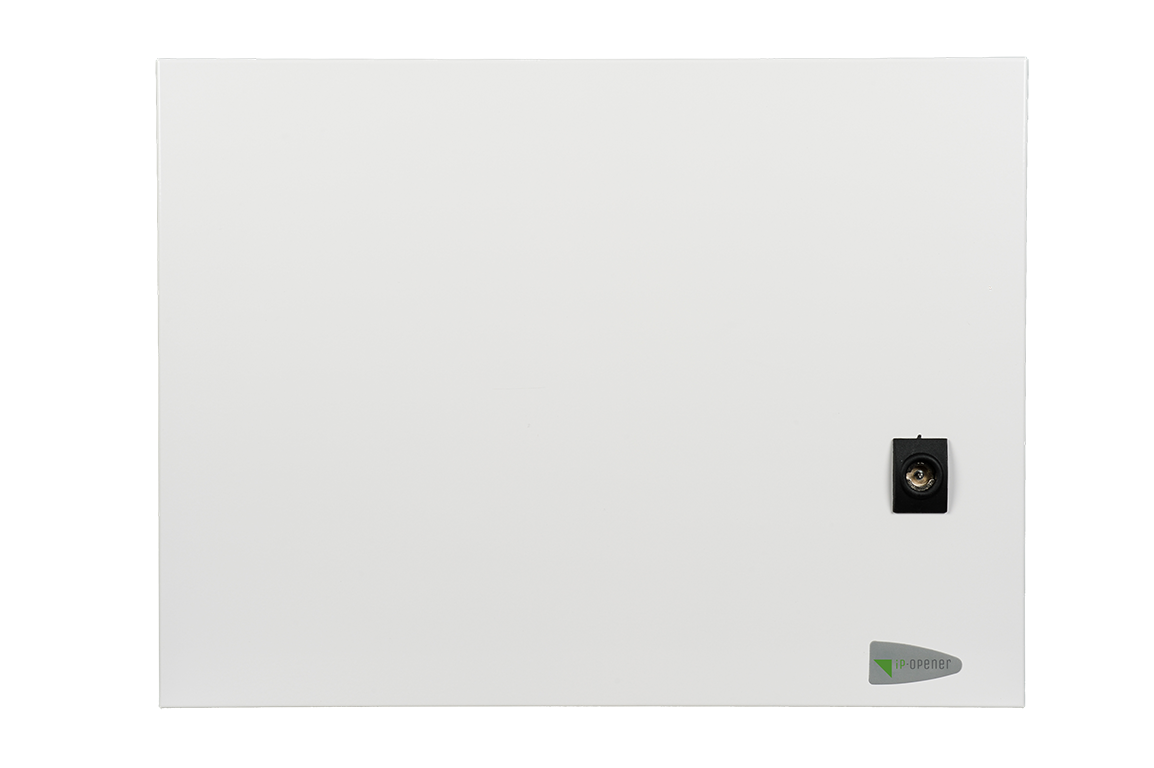

GM-PSIPOP-G metal cabinet with power supply for IP-Opener controllers
Reference : GM-PSIPOP-G
Product code: 20780125
- Metal cabinet with lock
- To accommodate 4 controllers and 4 expander modules
- Incorporates 12Vdc/7A power supply unit
- Allows to house a BAT-7A battery
- Tamper
- Weight: 7400gr
Dimensions: 456(W) x 505(H) x 100(D) mm
More information
It allows significant space savings and power management and offers a compact solution.
| Specifications | |
|---|---|
| Input voltage (Vac) | 230 |
| Output voltage (Vdc) | 12 |
| Adjustable output voltage | 1 |
| Output current (A) | 7 |
| Ground terminal | Yes |
| Electrical protection | Short circuit,Overvoltage |
| With backup battery | 1 |
| Batteries included | 0 |
| Battery charger | 1 |
| Dimensions - High (mm) | 456 |
| Dimensions - Width (mm) | 505 |
| Dimensions - Deep (mm) | 100 |
| Weight (gr.) | 7400 |
