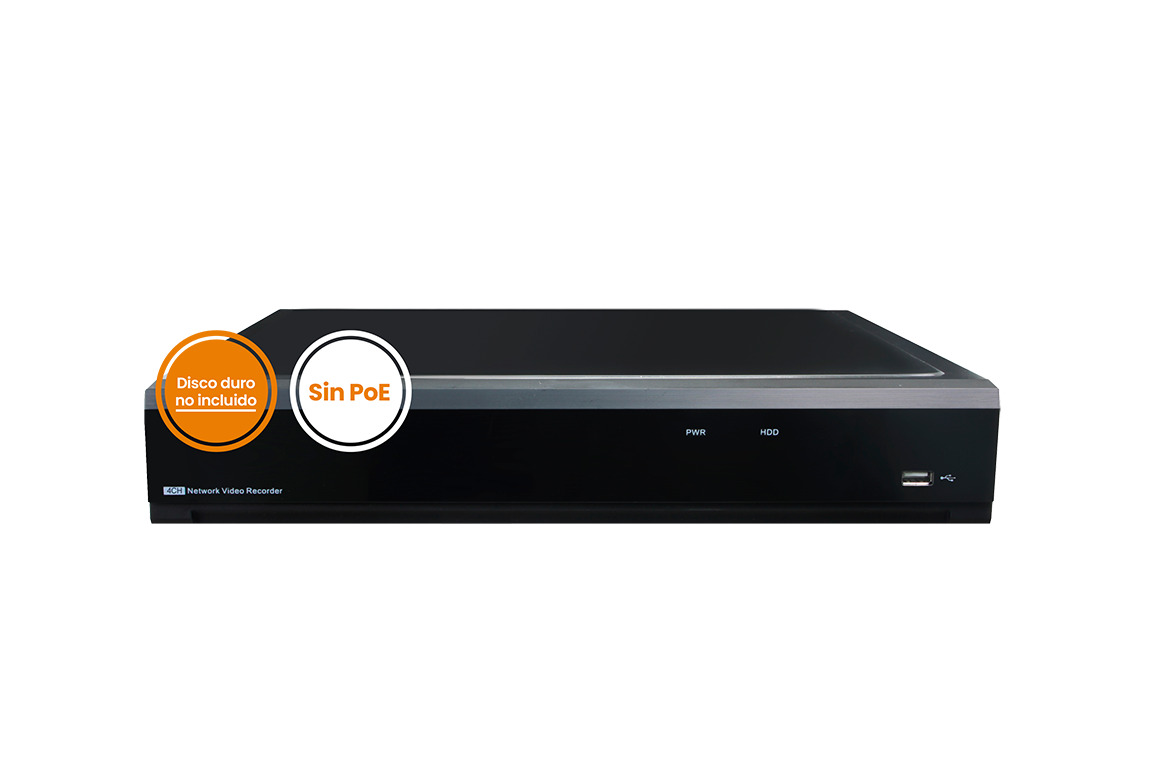

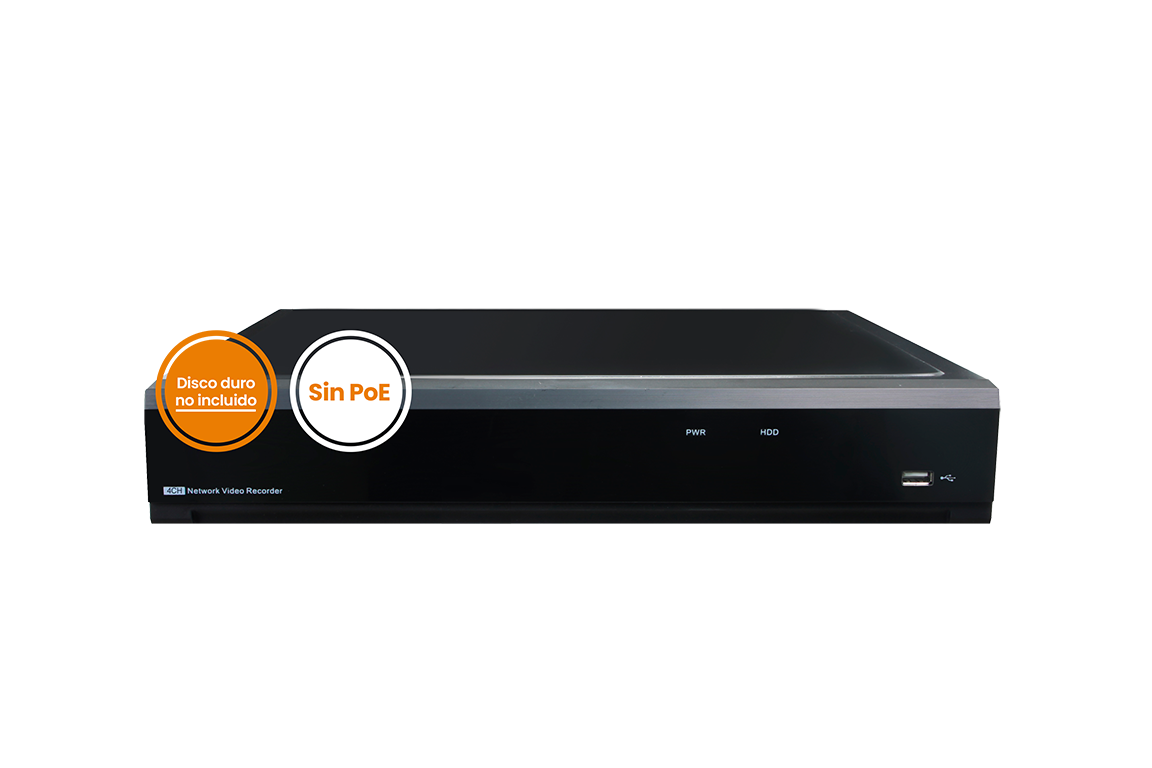

NVR-1602 16-channel IP recorder without PoE, without disk
Reference : NVR-1602
Product code: 31601052
EAN code : 8429898031835
- 16 IP video channels
Maximum resolution: 4K
Bandwidth: 112 Mbps
VGA and HDMI outputs (4K)
Advanced video analytics
Facial recognition with Pro series cameras
Hard disk not included
1 free SATA port for expansion
GolmarView App
VMS Pro software
Dimensions: 300(W) x 53(H) x 300(D) mm
More information
| Specifications | |
|---|---|
| Type | NVR |
| Video compression | H.264,H.265,H.265+ |
| Max. Resolution (MPx) | 8 |
| Video outputs | HDMI, VGA |
| POE ports | 0 |
| Compatible IP cameras | ONVIF,Golmar |
| Maximum input bandwidth (Mbps) | 112 |
| Maximum output bandwidth (Mbps) | 96 |
| Recording method | Manual,Scheduled,Motion detection,PIR,Alarmas,VA |
| Video Analysis | LCD,PID,PD,VD,SOD,FD,CC,CD,QD,HM |
| Face recognition | Yes |
| Synchronous playback. | Yes |
| Control PTZ. | Yes |
| RS-485 | Yes |
| I / O alarms | 16/1 |
| USB | 2 x USB2.0 |
| Network interface | RJ45 |
| Hard disk included (TB) | 0 |
| Disc Bays. | 2 |
| Free disk bays | 2 |
| Remote Access / App | Web,App Golmarview,VMS Pro |
| Maximum working temperature (ºC) | 40 |
| Dimensions - High (mm) | 53 |
| Dimensions - Width (mm) | 300 |
| Dimensions - Deep (mm) | 296 |
| Relative humidity work (max.) | 90% |
| Max Disk Memory (TB) | 10 |
| Included power supply | Yes |
| Input voltage (V) | 12Vcc |
| Weight (gr.) | 1620 |
